Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood latch release cable (1) to the hood latch (2).
    Fig 1: Installing Hood Latch Release Cable
    G02101562Courtesy of GENERAL MOTORS CORP.
  2. Install the hood latch (2) to the hood latch support (3).
  3. Install the bolts (1) in order to secure the hood latch (2) to the hood latch support (3).
  4. Adjust the hood latch. Refer to HOOD LATCH ADJUSTMENT  .
  5. Install the night vision camera (if equipped). Refer to NIGHT VISION CAMERA REPLACEMENT
  6. Close the hood.

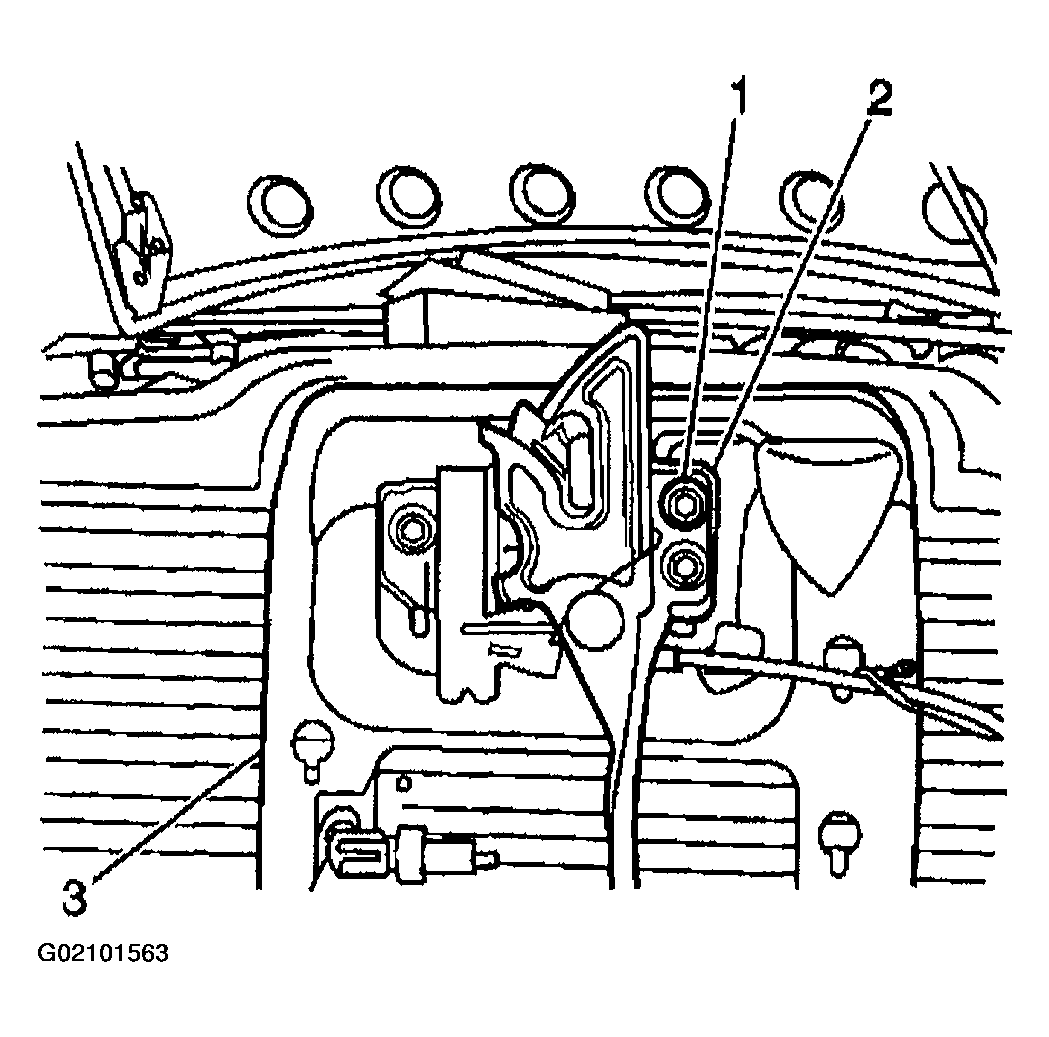

    Fig 2: Installing Hood Latch
    G02101563Courtesy of GENERAL MOTORS CORP.
