Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender sound insulator (2) to the vehicle.
  2. Install the push on retainers (1) to secure the front fender sound insulator (2) to the vehicle.
  3. Install the front wheelhouse liner. Refer to WHEELHOUSE LINER REPLACEMENT - FRONT  .
  4. Install the front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT .

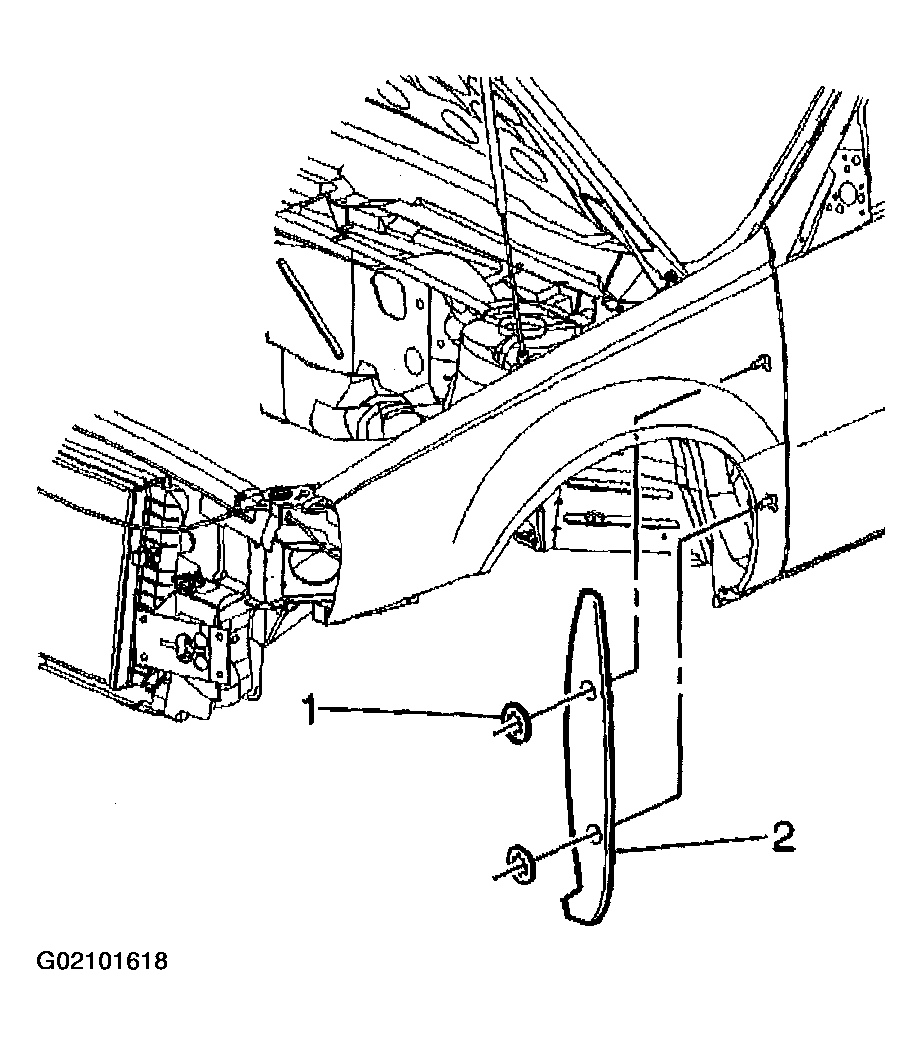

    Fig 1: Installing Front Fender Sound Insulator And Retainers
    G02101618Courtesy of GENERAL MOTORS CORP.
