Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front air deflector.
  2. Install the push in retainers in order to secure the front air deflector to the vehicle.
  3. Lower the vehicle.

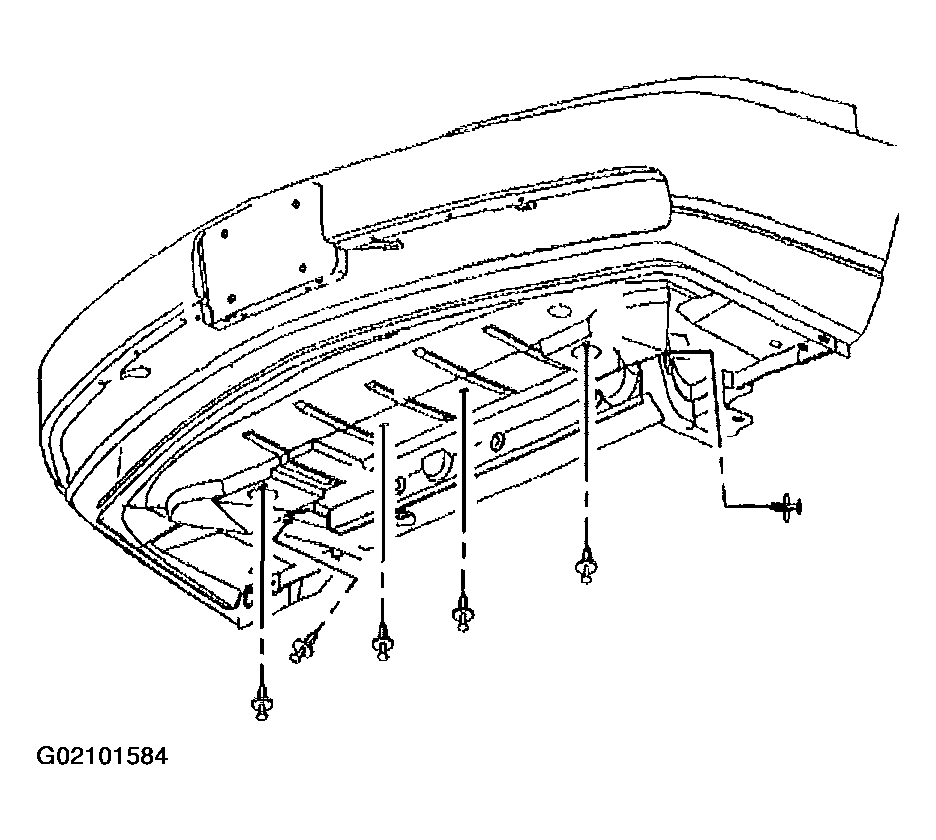

    Fig 1: Installing Front Air Deflector And Retainers
    G02101584Courtesy of GENERAL MOTORS CORP.
