Navigation System Display Inoperative

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

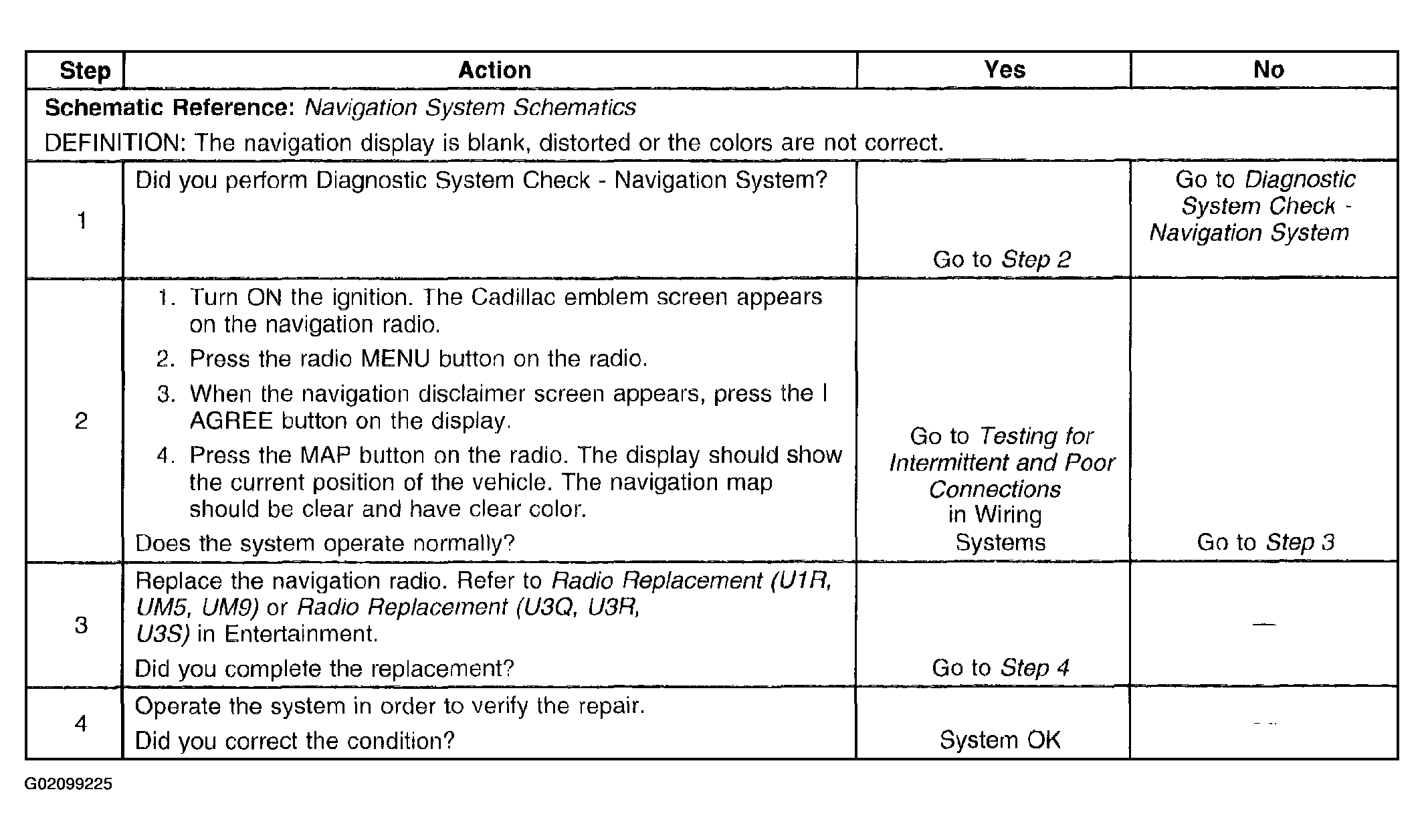

Fig 1: Diagnosis Procedure - Navigation System Display Inoperative
G02099225Courtesy of GENERAL MOTORS CORP.
