Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift indicator lamp (1) to the lamp socket.
  2. Install the lamp and socket to the shifter assembly.
  3. Rotate the shift indicator lamp socket clockwise.
  4. Install the console center trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (DTS)

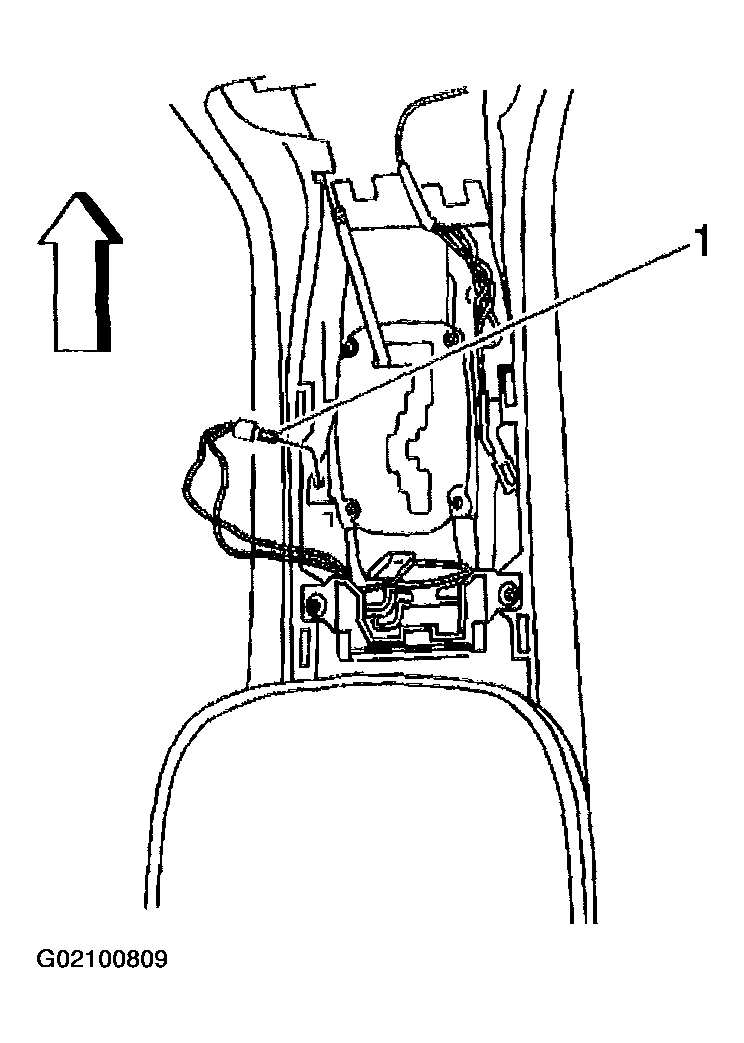

    Fig 1: Installing Shift Indicator Lamp To Lamp Socket
    G02100809Courtesy of GENERAL MOTORS CORP.
