Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
  2. Align the headlamp, foglamp switch assembly with the opening in the IP.
  3. Push into position until flush with the IP surface.
  4. Install the left IP end cap. Refer to INSTRUMENT PANEL (I/P) OUTER TRIM COVER REPLACEMENT - LEFT

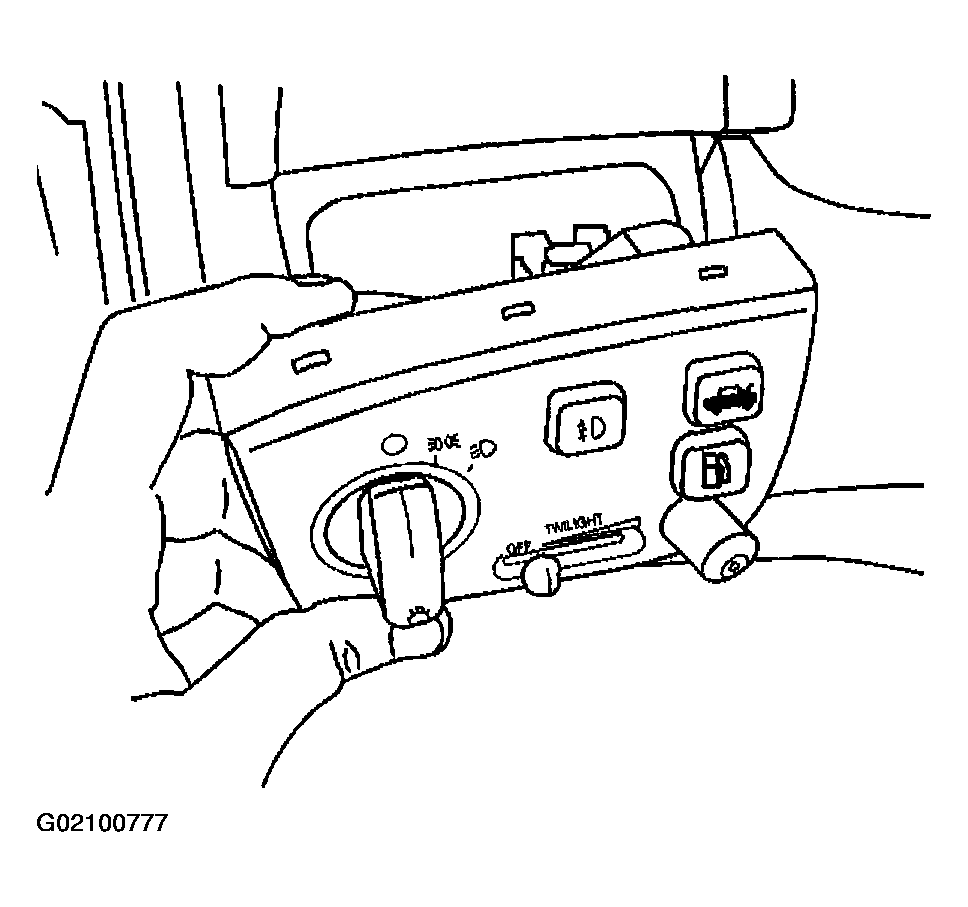

    Fig 1: Connecting Headlamp Switch Electrical Connectors
    G02100777Courtesy of GENERAL MOTORS CORP.
