Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb into the bulb socket.
Install the bulb assembly into the backup lamp assembly.
Pull the wire harness through the body and seat the grommet.
Install the backup lamp assembly to the rear compartment lid.

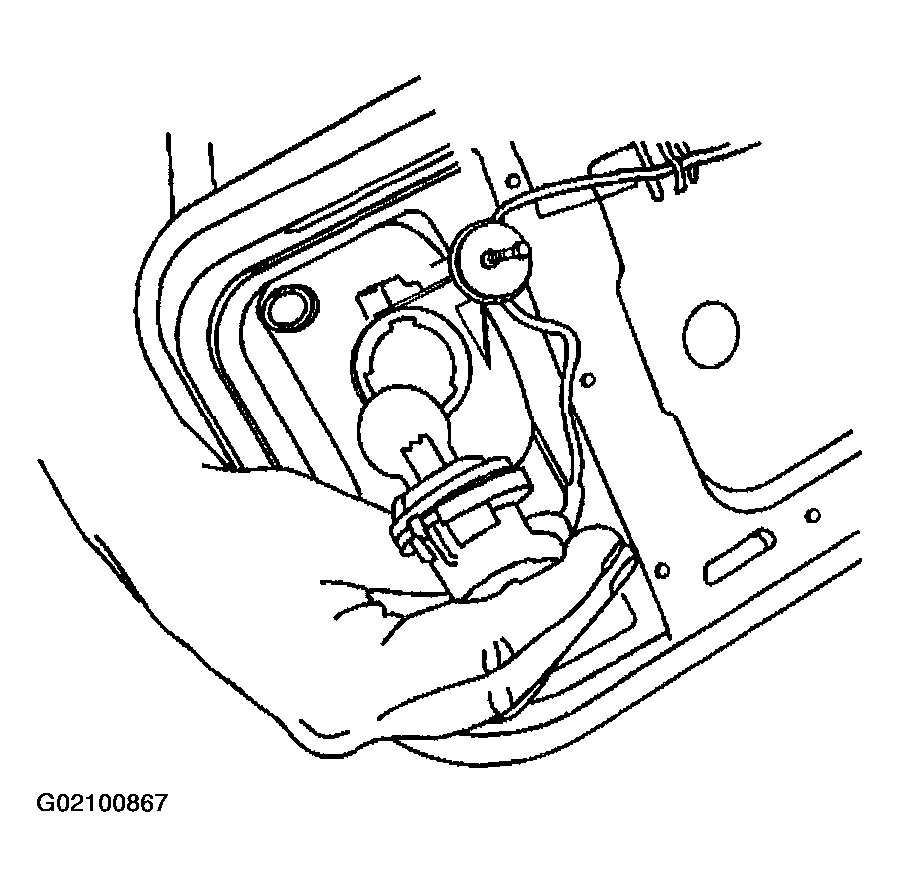

Fig 1: Installing Bulb Assembly Into Backup Lamp Assembly
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE
Install the fasteners in order to secure the backup lamp assembly.
Tighten

Tighten the fasteners to 4.5 N.m (40 lb in).

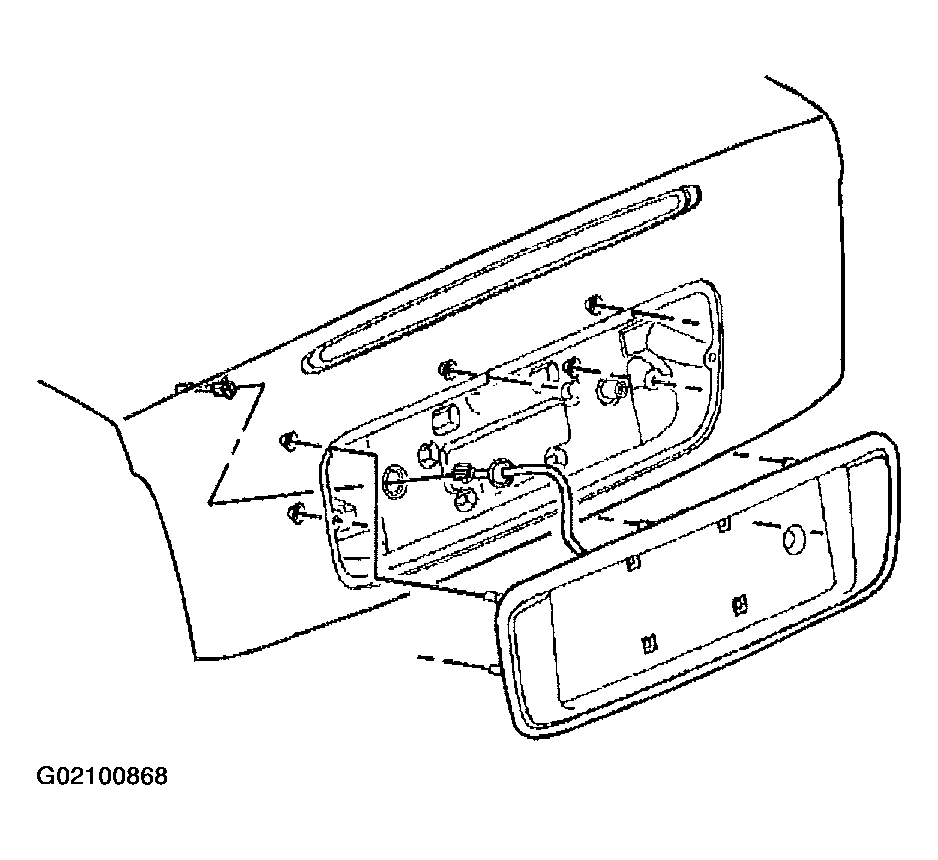

Fig 2: Installing Backup Lamp Assembly To Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector.
Install the rear compartment lid trim. Refer to COMPARTMENT LID TRIM REPLACEMENT - REAR

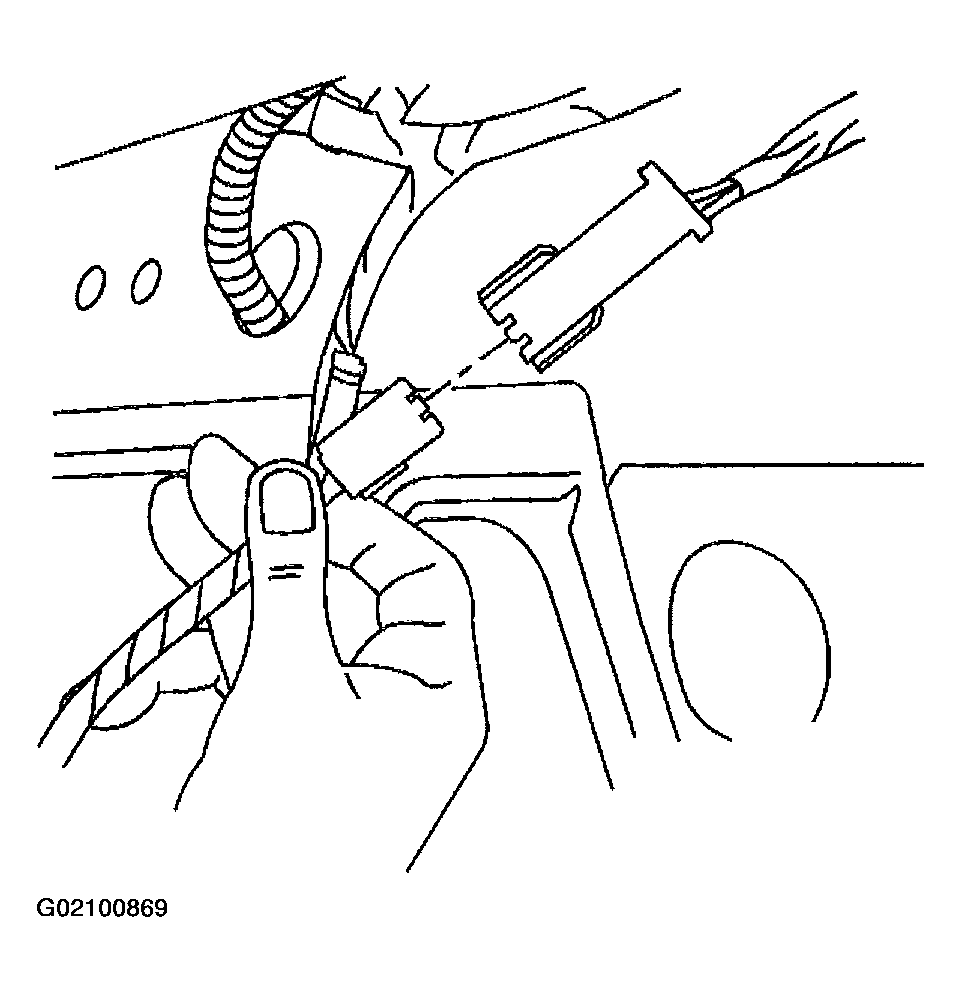

Fig 3: Connecting Backup Lamp Electrical Connector
Courtesy of GENERAL MOTORS CORP.
