Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new wheel stud.
  2. Using washers and a wheel nut, pull the wheel stud in position.
  3. Install the brake rotor. Refer to FRONT BRAKE ROTOR or FRONT BRAKE ROTOR in Disc Brakes.
  4. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  5. Lower the vehicle.

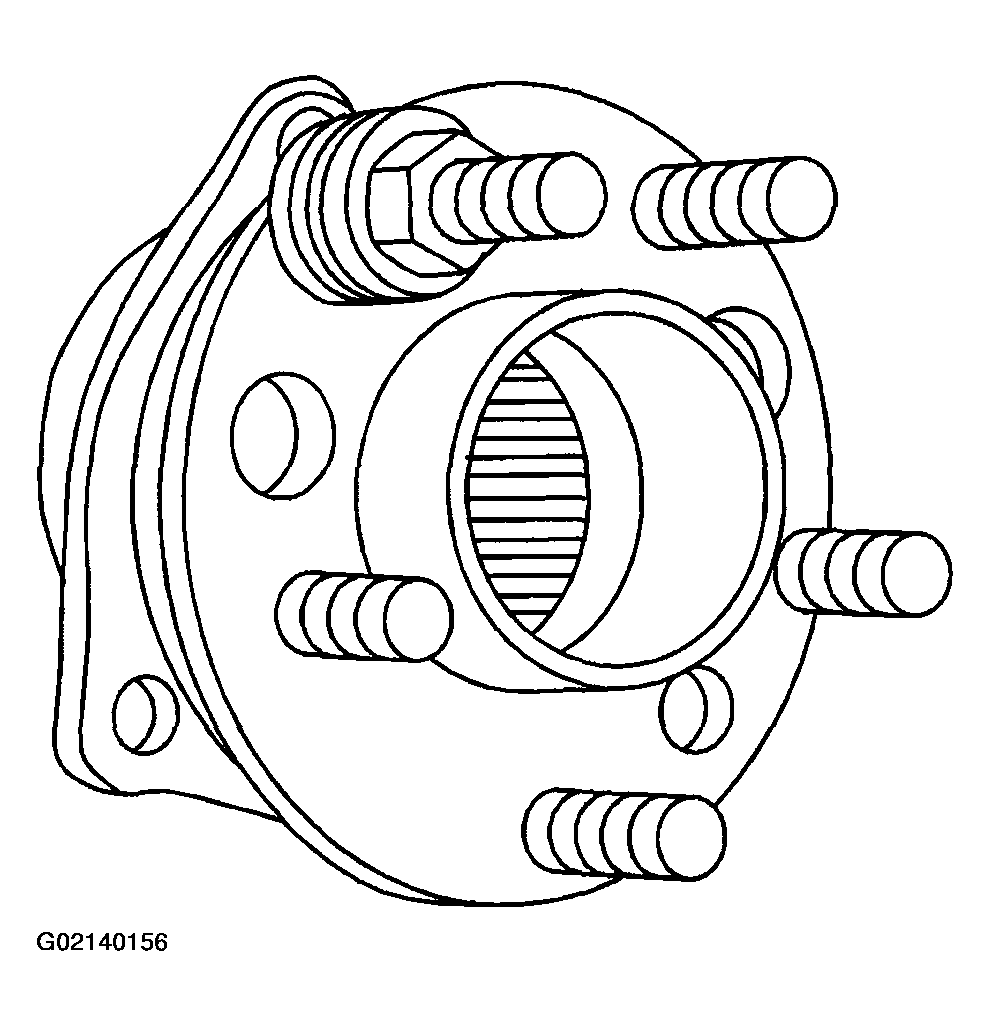

    Fig 1: Installing Wheel Stud
    G02140156Courtesy of GENERAL MOTORS CORP.
