Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the vehicle.
  2. Install the strut to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the upper strut mounting bolts.

    Tighten

    Tighten the upper strut mounting bolts to 40 N.m (30 lb ft).

  4. Raise the vehicle.

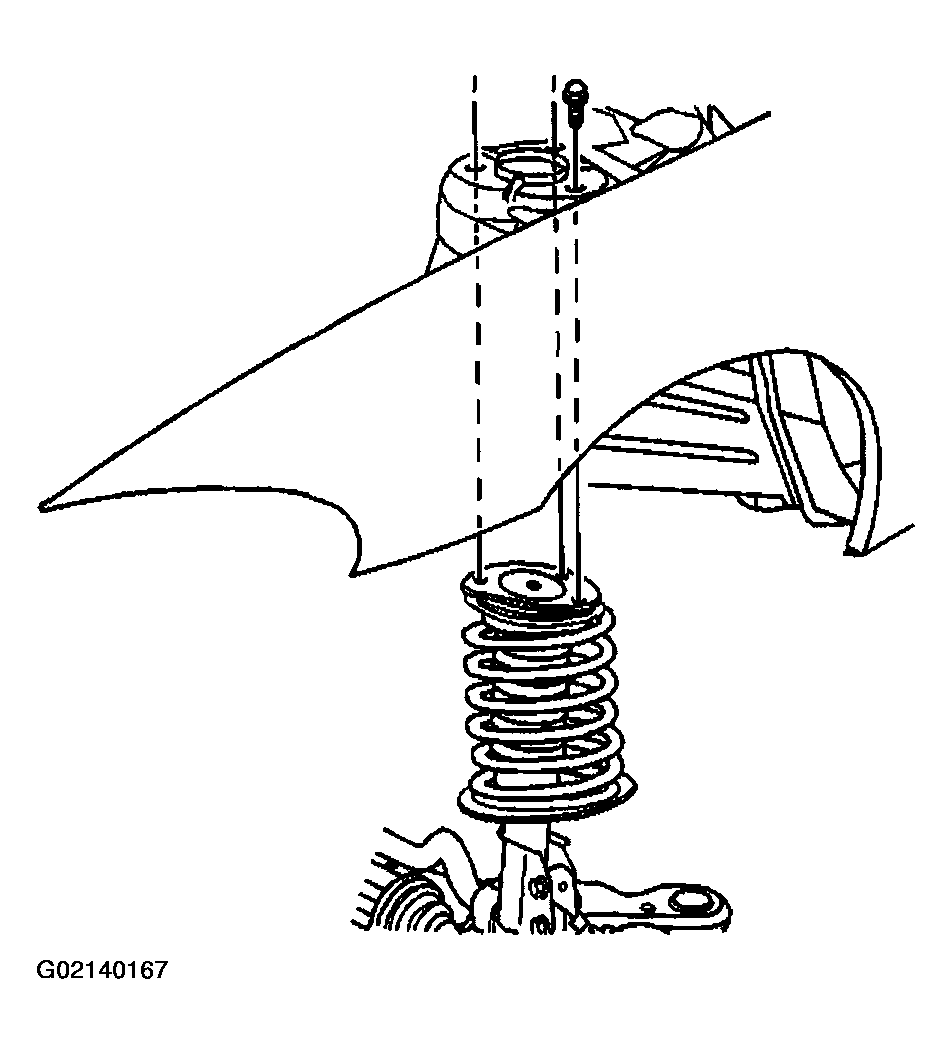

    Fig 1: Installing Upper Strut Mounting Bolts
    G02140167Courtesy of GENERAL MOTORS CORP.
  5. Install new strut to steering knuckle bolts and nuts.

    Tighten

    Tighten the strut to steering knuckle bolts and nuts to 147 N.m (108 lb ft).

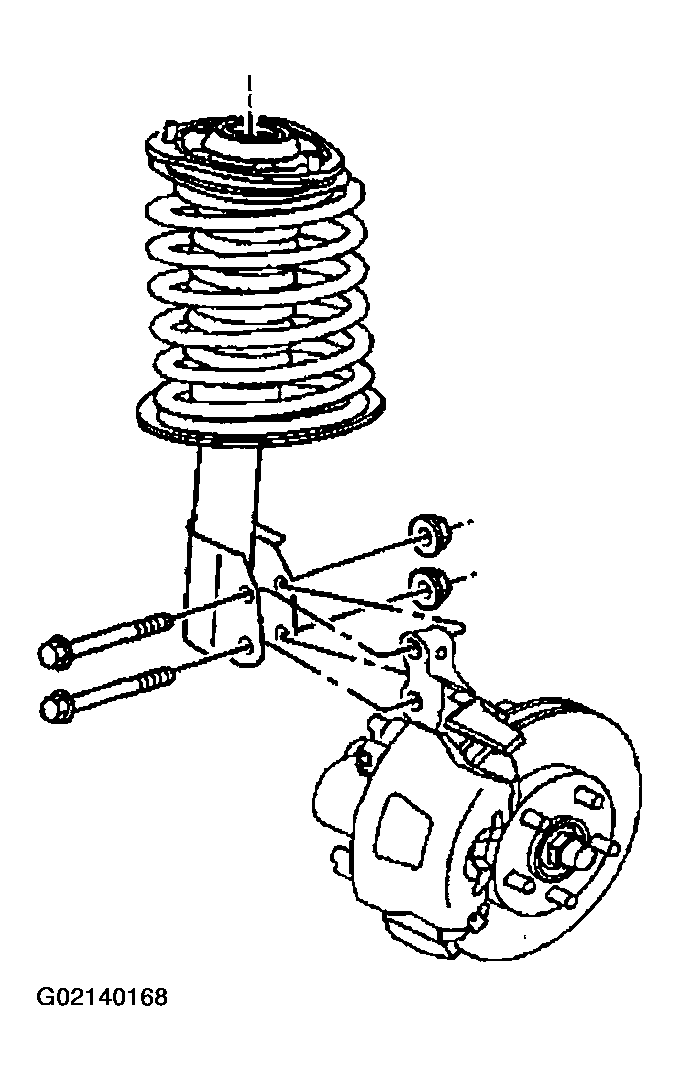

    Fig 2: Installing Strut To Steering Knuckle Bolts And Nuts
    G02140168Courtesy of GENERAL MOTORS CORP.
  6. Install the brake line bracket and mounting bolt to the strut.

    Tighten

    Tighten the bolts and nuts to 17 N.m (13 lb ft).

  7. Install the wheel speed sensor bracket and mounting bolt to strut.

    Tighten

    Tighten the bolt to 17 N.m (13 lb ft).

  8. Install the wheel speed sensor bracket to strut.
  9. Install the wheel speed sensor wiring harness to the bracket.
  10. Install the wheel and tire. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  11. Lower the vehicle.

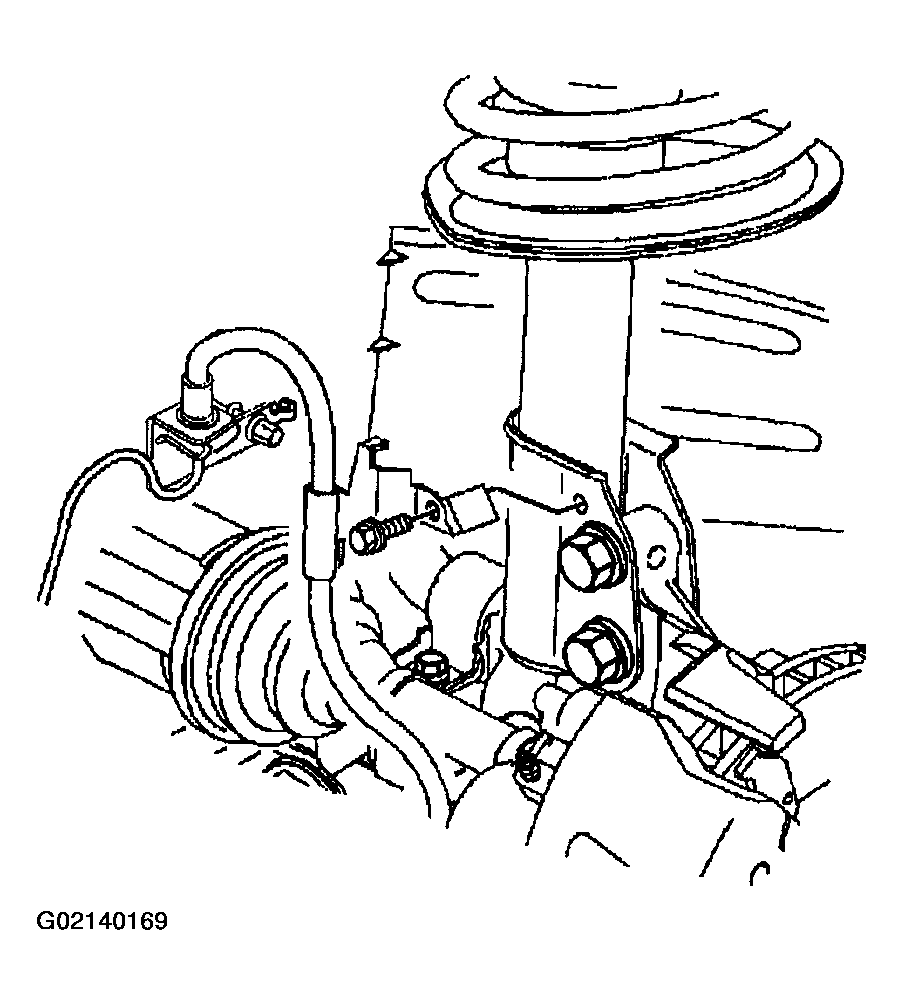

    Fig 3: Installing Brake Line Bracket And Mounting Bolt To Strut
    G02140169Courtesy of GENERAL MOTORS CORP.
