Removal Procedure

IMPORTANT:
  • Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
  • Always route the replacement cable the same way as the original cable.
  1. Remove the upper filler panel. Refer to BODY FRONT END  in Body Front End.
  2. Remove the bolt (1) securing the engine ground cable (2) to the right side body frame rail.
  3. Remove the bolt securing the engine ground cable to the generator.
  4. Remove the engine ground cable from the vehicle.

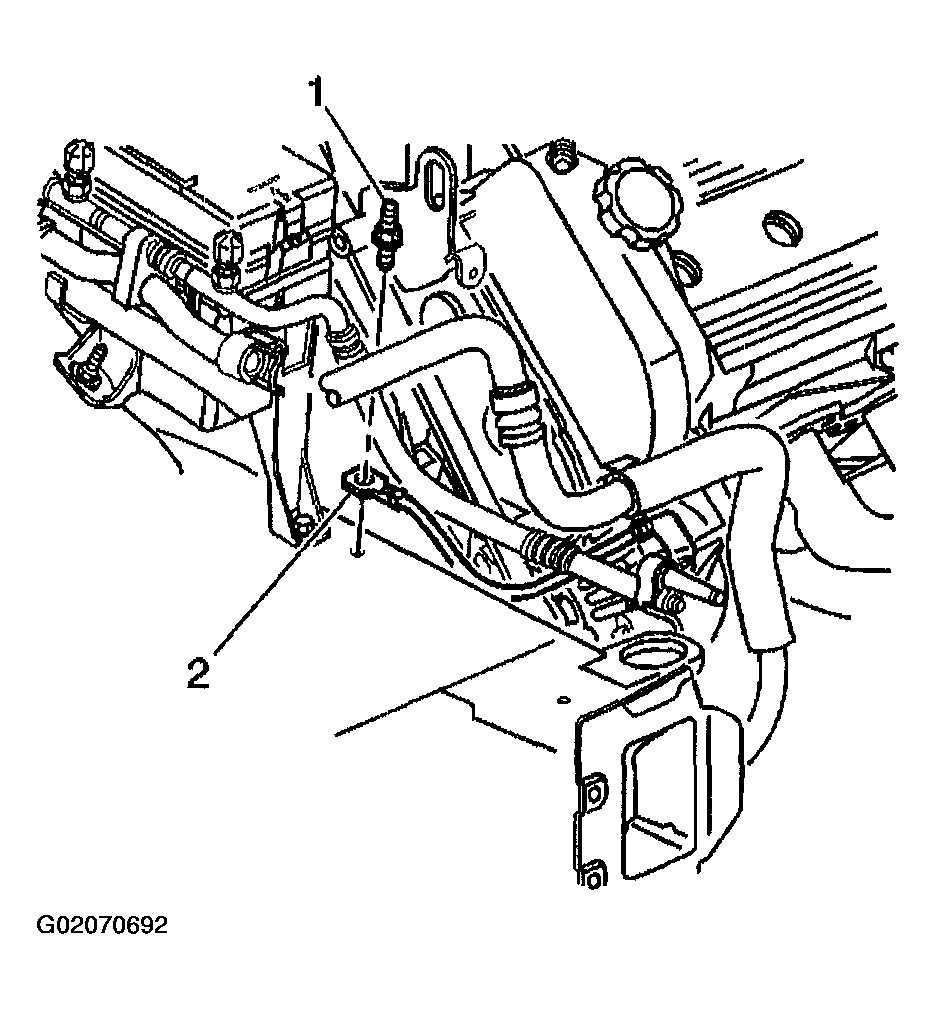

    Fig 1: Removing Bolt Securing Engine Ground Cable
    G02070692Courtesy of GENERAL MOTORS CORP.
