Installation Procedure

  1. Position the engine ground cable to the engine.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt securing the engine ground cable to the generator.

    Tighten

    Tighten the generator mounting bolt to 50 N.m (37 lb ft).

  3. Install the bolt (1) securing the engine ground cable (2) to the right side body frame rail.

    Tighten

    Tighten the engine ground cable bolt to 50 N.m (37 lb ft).

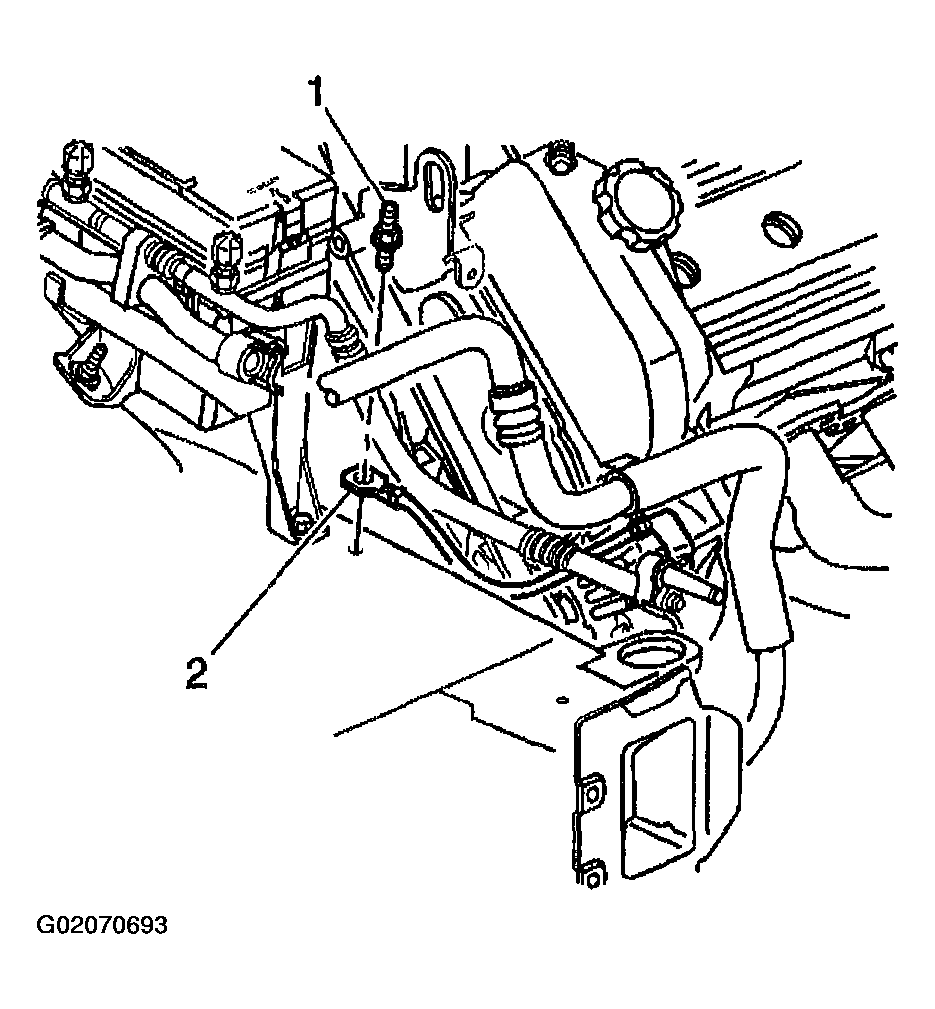

    Fig 1: Installing Bolt Securing Engine Ground Cable
    G02070693Courtesy of GENERAL MOTORS CORP.
  4. Install the upper filler panel. Refer to BODY FRONT END  in Body Front End.
