Removal Procedure

IMPORTANT:

Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
Always route the replacement cable the same way as the original cable.

Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Disconnect the positive battery cable (1) from the battery.

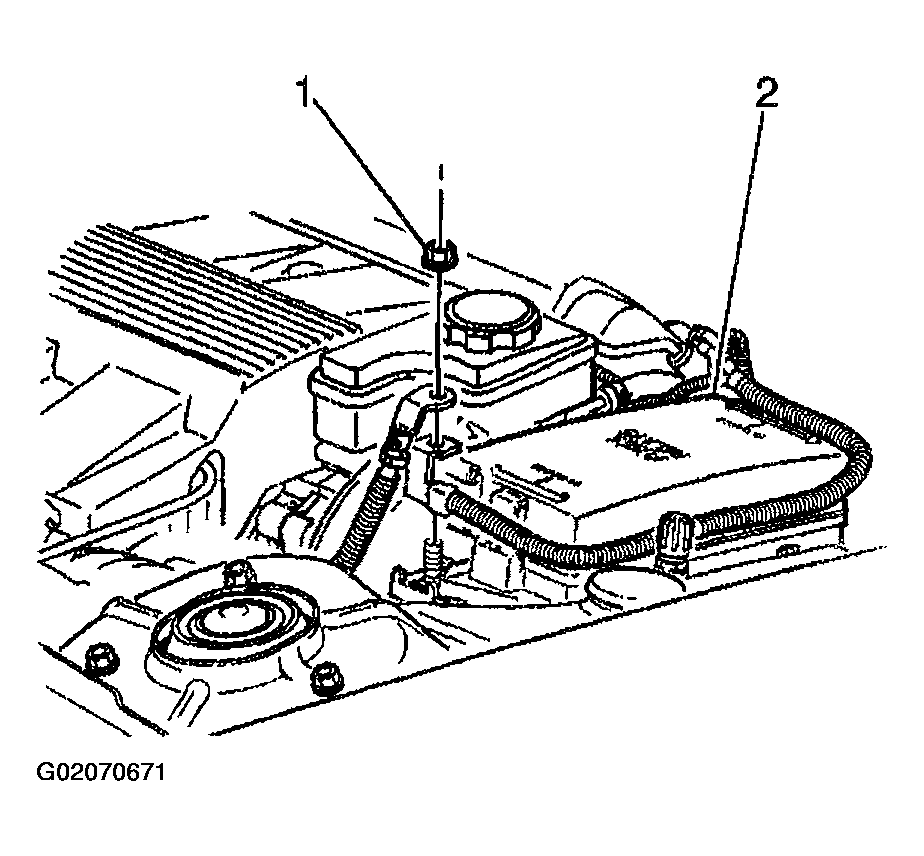

Fig 1: Disconnecting Positive Battery Cable From Battery
Courtesy of GENERAL MOTORS CORP.
Remove the nut (1) securing the positive battery cable to the rear fuse block.

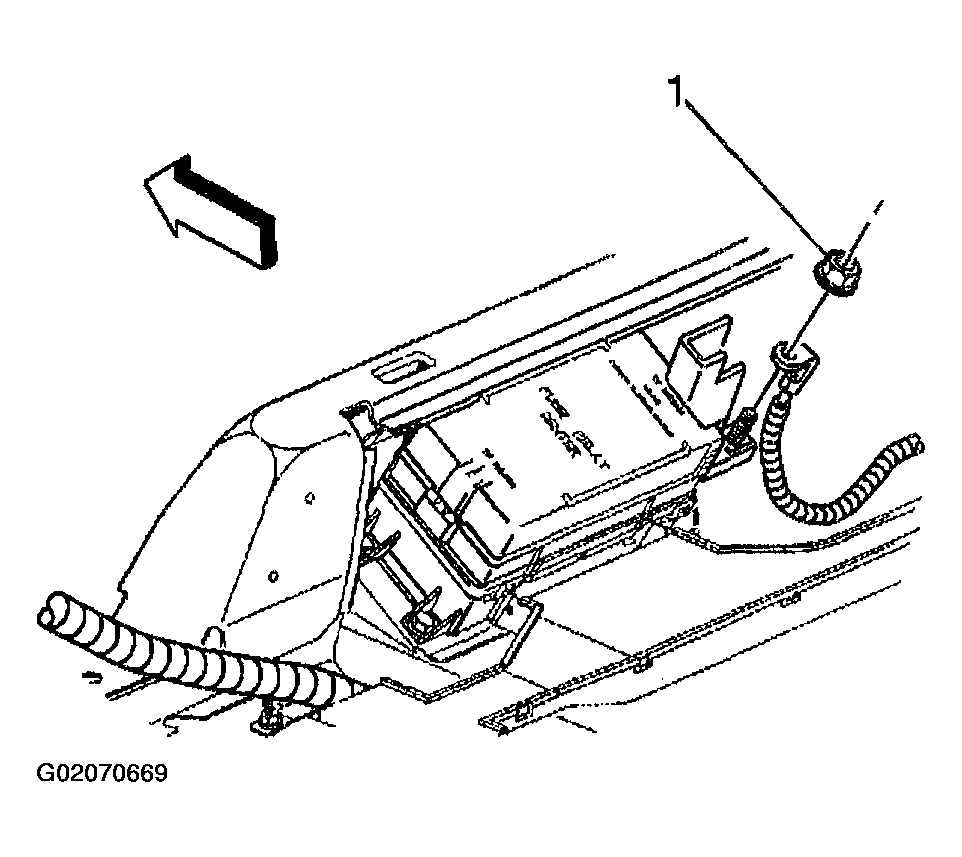

Fig 2: Removing Nut Securing Positive Battery Cable To Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Remove the interior trim moldings. Refer to INTERIOR TRIM in Interior Trim to expose the positive battery cable.
Remove the right closeout insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT RIGHT (LHD) or INSTRUMENT PANEL, GAGES, AND CONSOLE in Instrument Panel, Gages and Console.
Remove the battery cable retainers (2) from the rocker panel area.

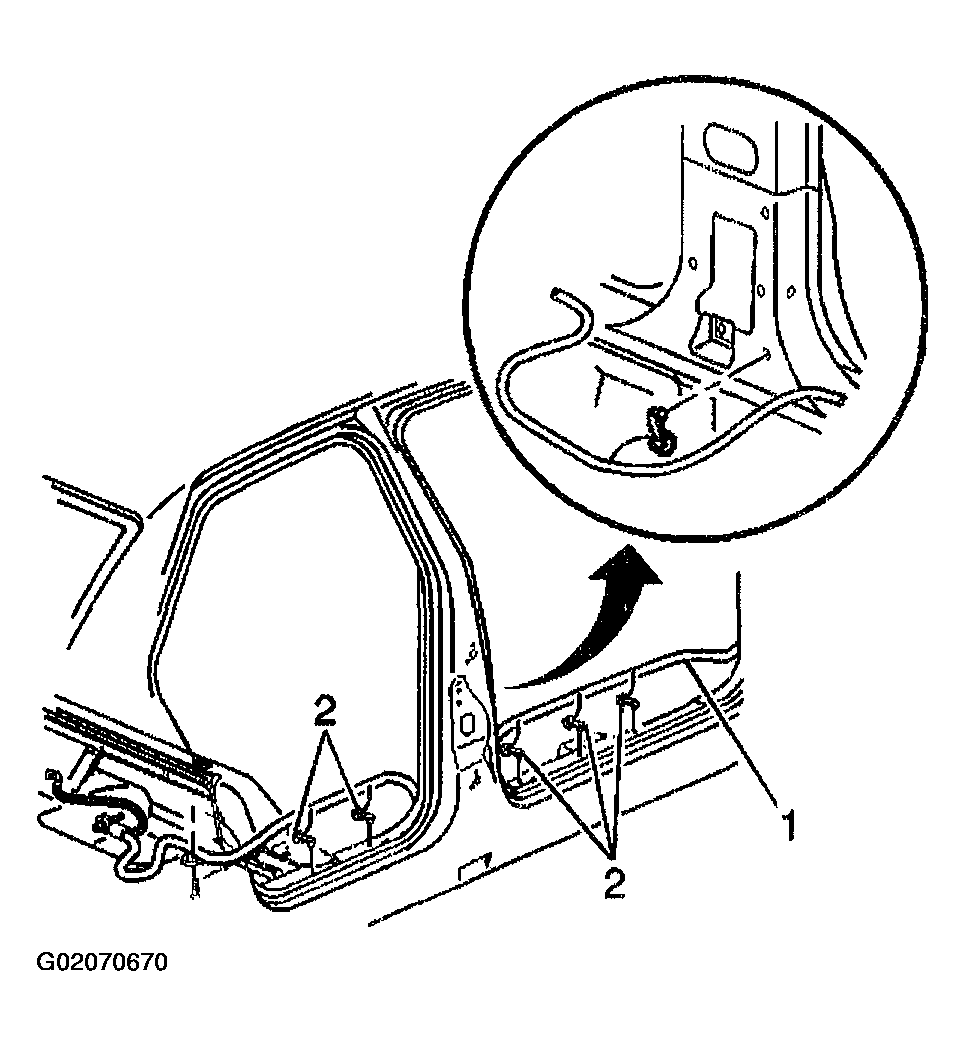

Fig 3: Removing Battery Cable Retainers From Rocker Panel Area
Courtesy of GENERAL MOTORS CORP.
Disconnect the positive battery cable from the underhood fuse block (2).

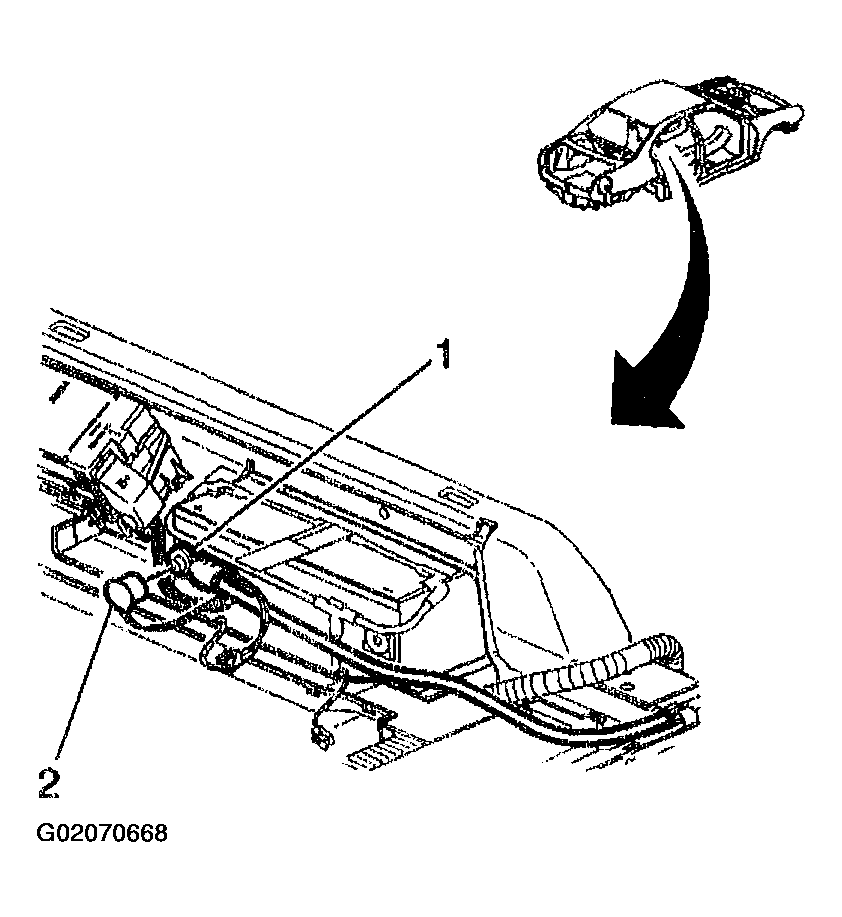

Fig 4: Disconnecting Positive Battery Cable From Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Remove the battery cable retainer from the rail.

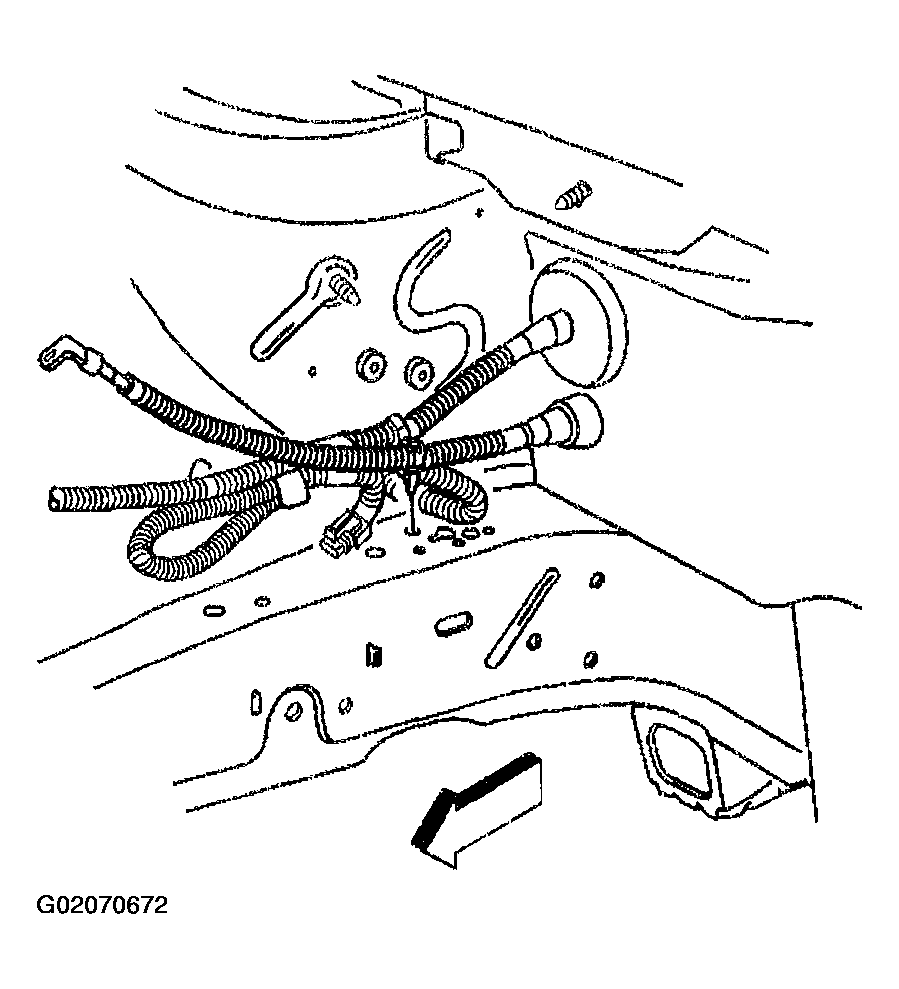

Fig 5: Removing Battery Cable Retainer From Rail
Courtesy of GENERAL MOTORS CORP.
Unseat the battery cable grommet (2) from the cowl panel (3).

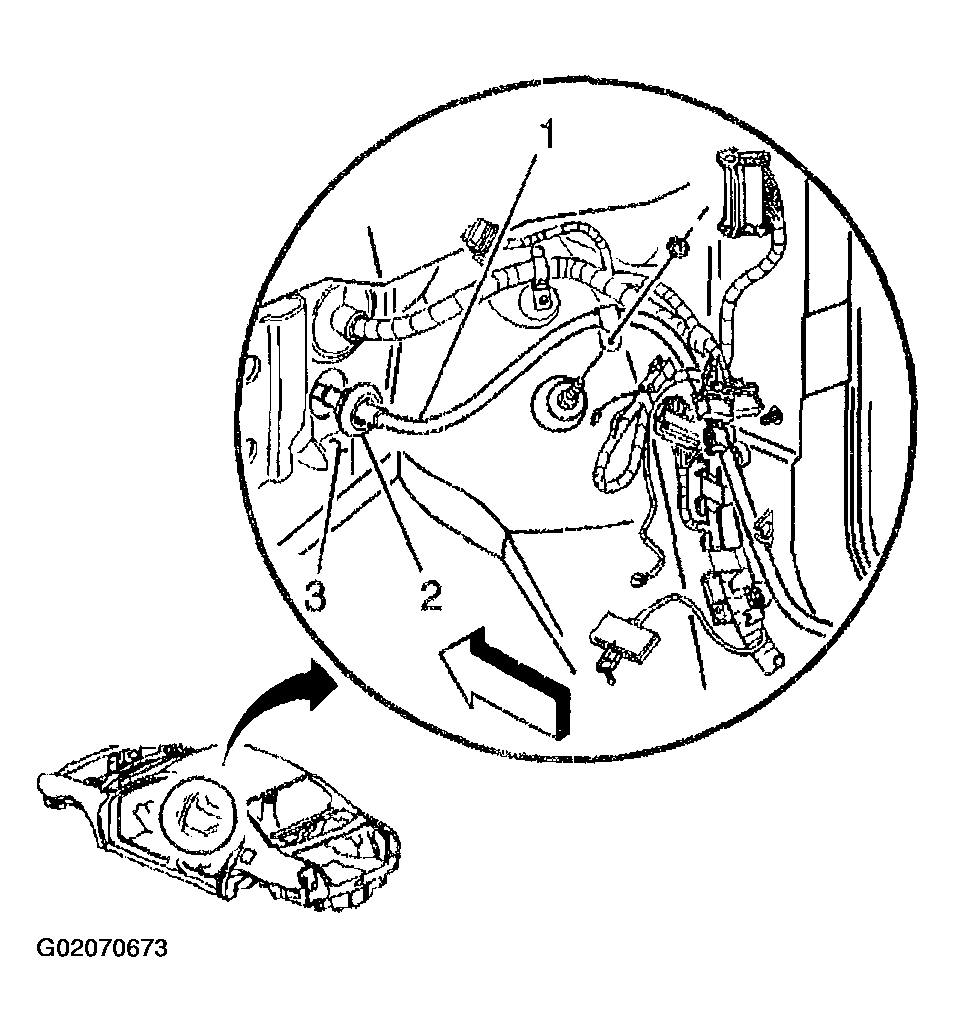

Fig 6: Removing Battery Cable Grommet From Cowl Panel
Courtesy of GENERAL MOTORS CORP.
Carefully remove the battery cable (1) from the vehicle by pulling the cable through the cowl panel (3) and out of the vehicle.
