Removal Procedure

IMPORTANT:
  • Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
  • Always route the replacement cable the same way as the original cable.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE   .
  2. Disconnect the body harness from the battery negative cable.
  3. Disconnect the battery negative cable from the floor pan.

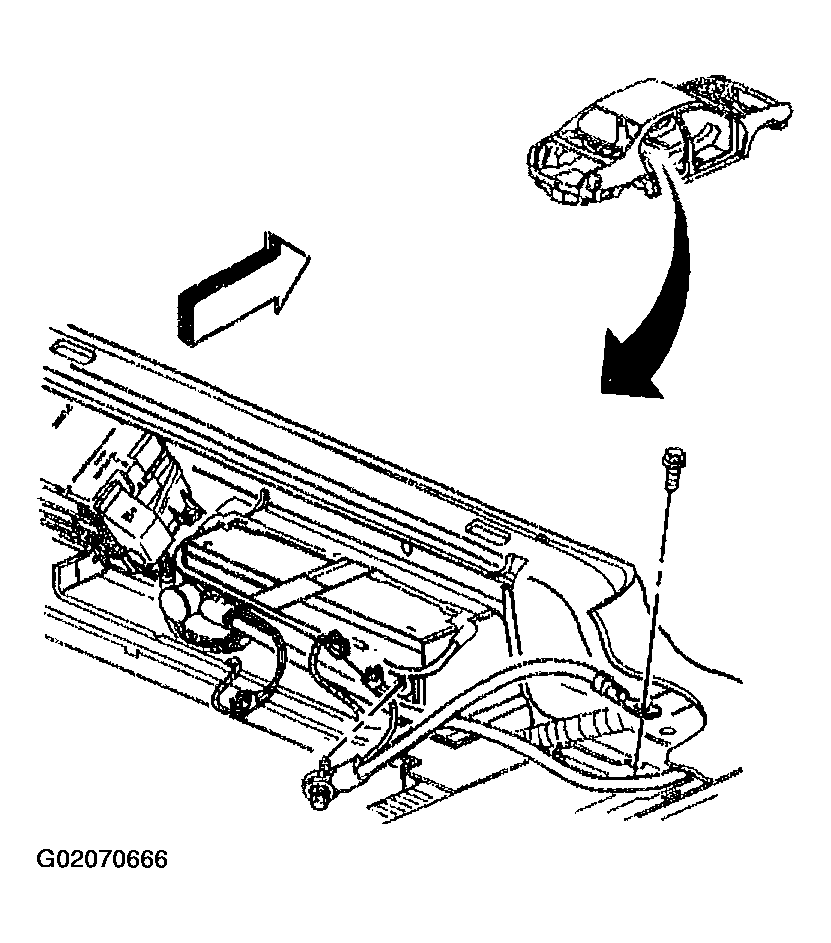

    Fig 1: Disconnecting Battery Negative Cable From Floor Pan Bolt
    G02070666Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery negative cable from the vehicle.
