Installation Procedure
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.
IMPORTANT:
Clean any existing oxidation from the contact face of the battery terminal and battery cable using a wire brush before installing the battery cable to the battery terminal.

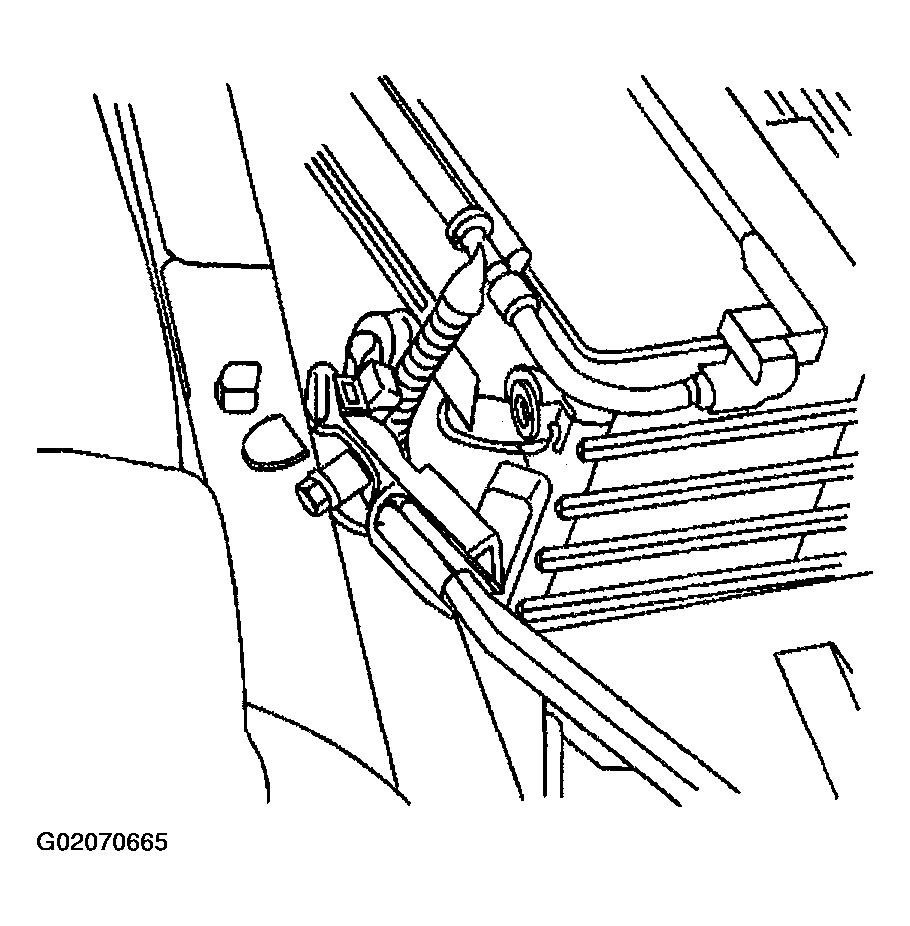

- Connect the negative battery cable to the battery.
Tighten
Tighten the bolt to 17 N.m (13 lb ft).
- Install the rear seat cushion. Refer to SEAT SYSTEM
in Seats.
The radio incorporates electronic memory for the clock and pre-selected radio stations, reprogramming is not necessary.
