Home >> Cadillac >> 2003 >> Seville SLS >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Window Switch Connector End View - Driver

Window Switch Connector End View - Driver

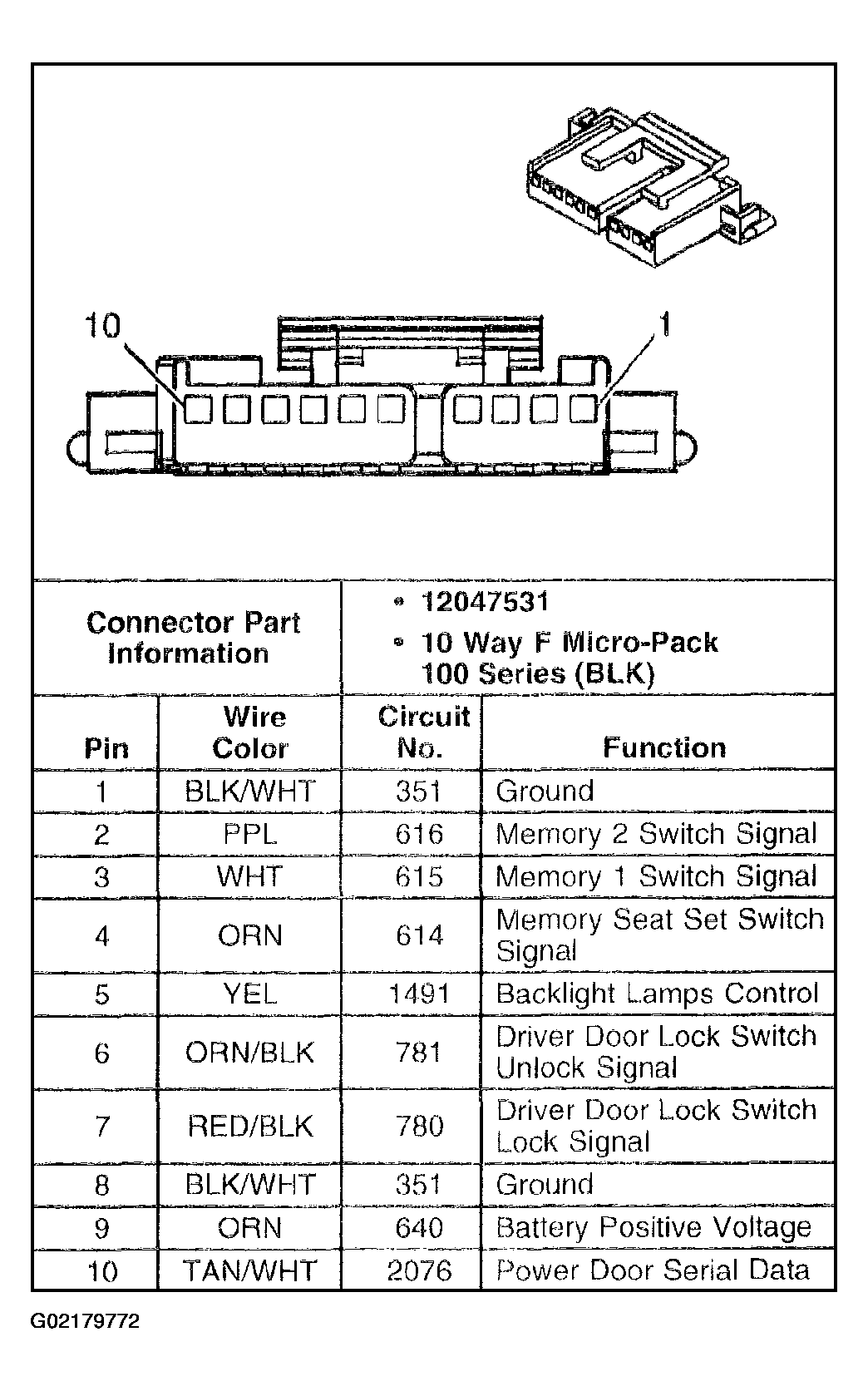

Fig 1: Window Switch - Driver

G02179772

Courtesy of GENERAL MOTORS CORP.
