Home >> Cadillac >> 2003 >> Seville SLS >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Theft Deterrent Exciter Module Connector End View

Theft Deterrent Exciter Module Connector End View

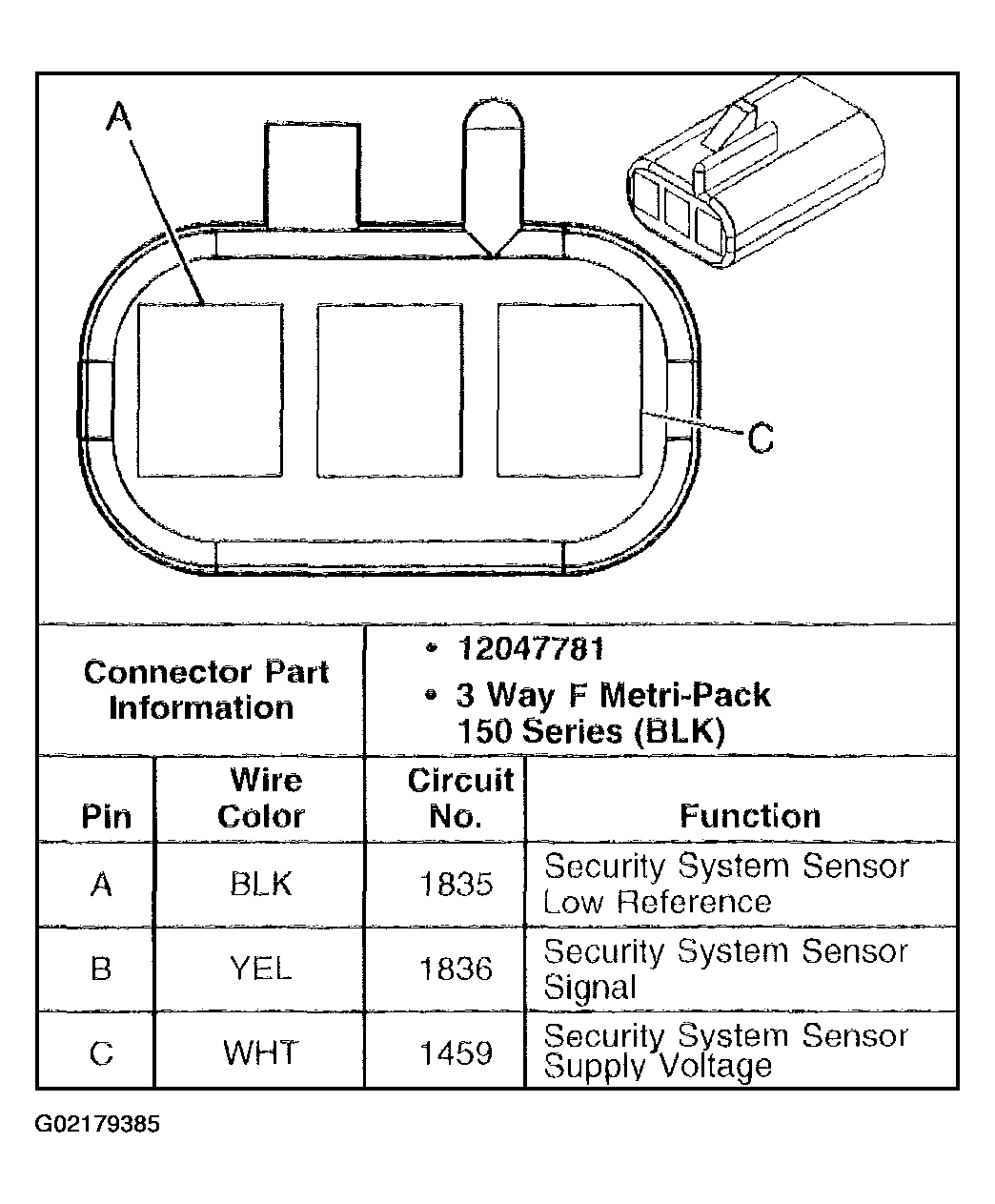

Fig 1: Theft Deterrent Exciter Module

G02179385

Courtesy of GENERAL MOTORS CORP.
