Radio Antenna Module Connector End View

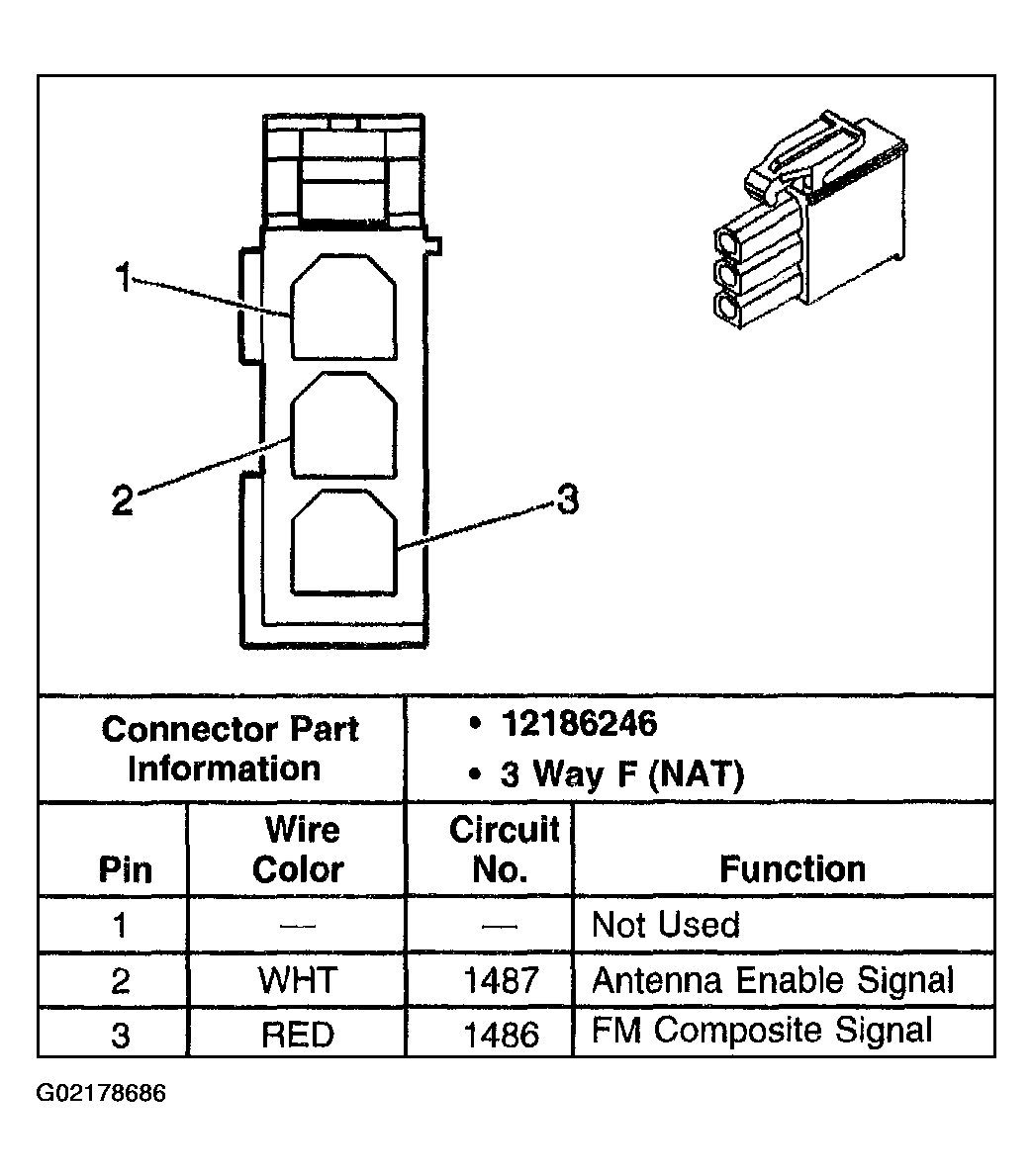

Fig 1: Radio Antenna Module

G02178686

Courtesy of GENERAL MOTORS CORP.
