Overhead Console Connector End View

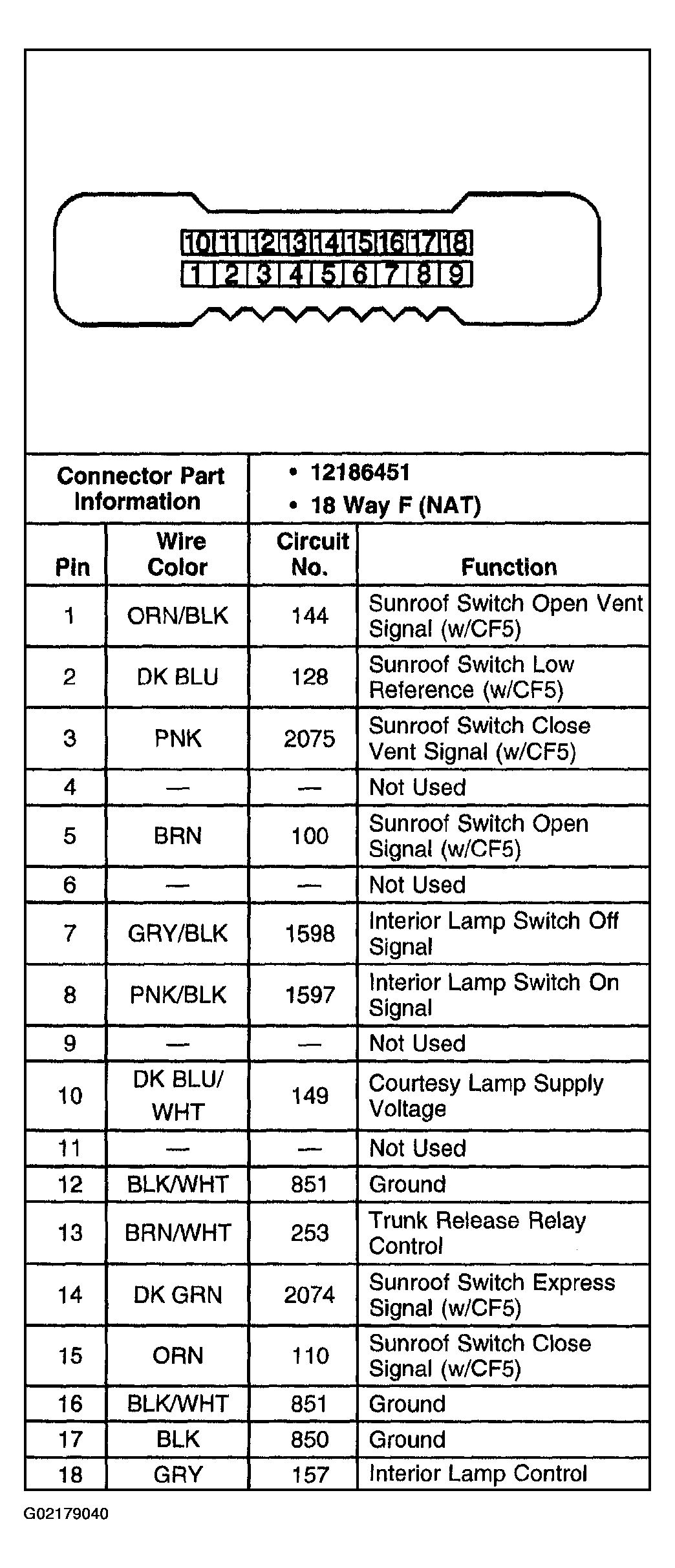

Fig 1: Overhead Console

G02179040

Courtesy of GENERAL MOTORS CORP.
