Left Rear Door Module (LRDM) Connector End View C2

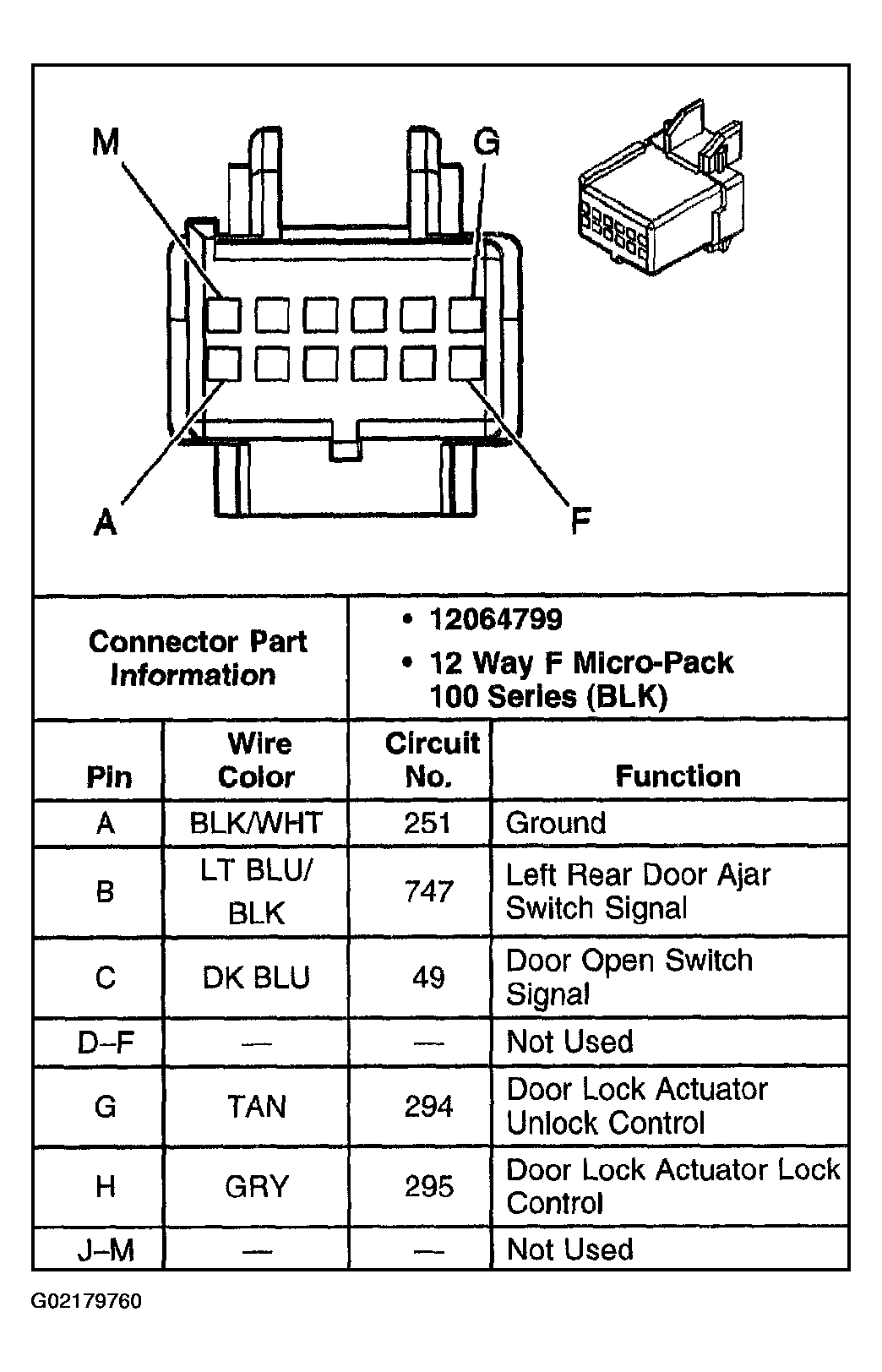

Fig 1: Left Rear Door Module (LRDM) C2

G02179760

Courtesy of GENERAL MOTORS CORP.
