I/P Compartment Lamp Switch Connector End View

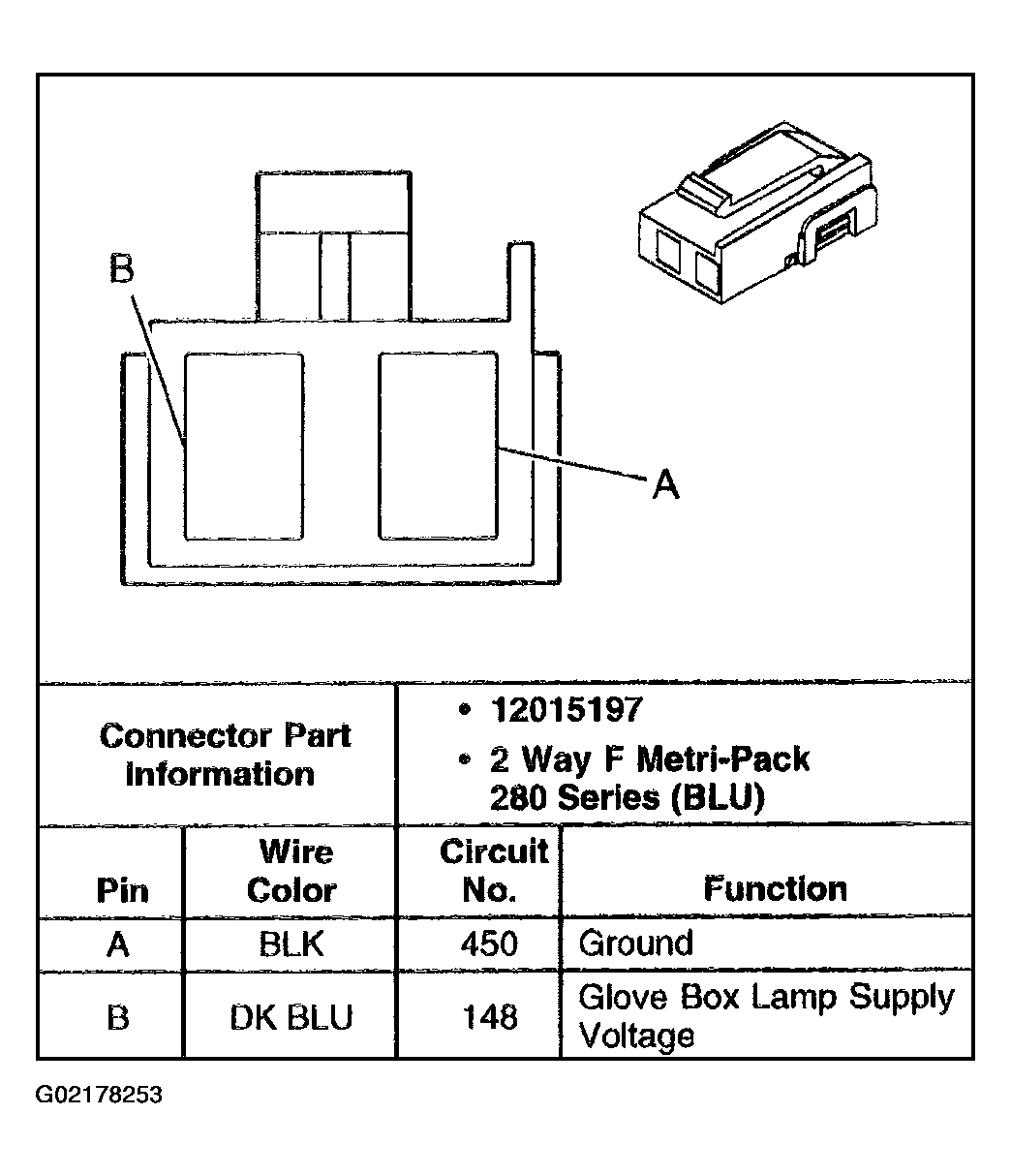

Fig 1: I/P Compartment Lamp Switch

G02178253

Courtesy of GENERAL MOTORS CORP.
