Front Passenger Door Module (FPDM) Connector End View C2

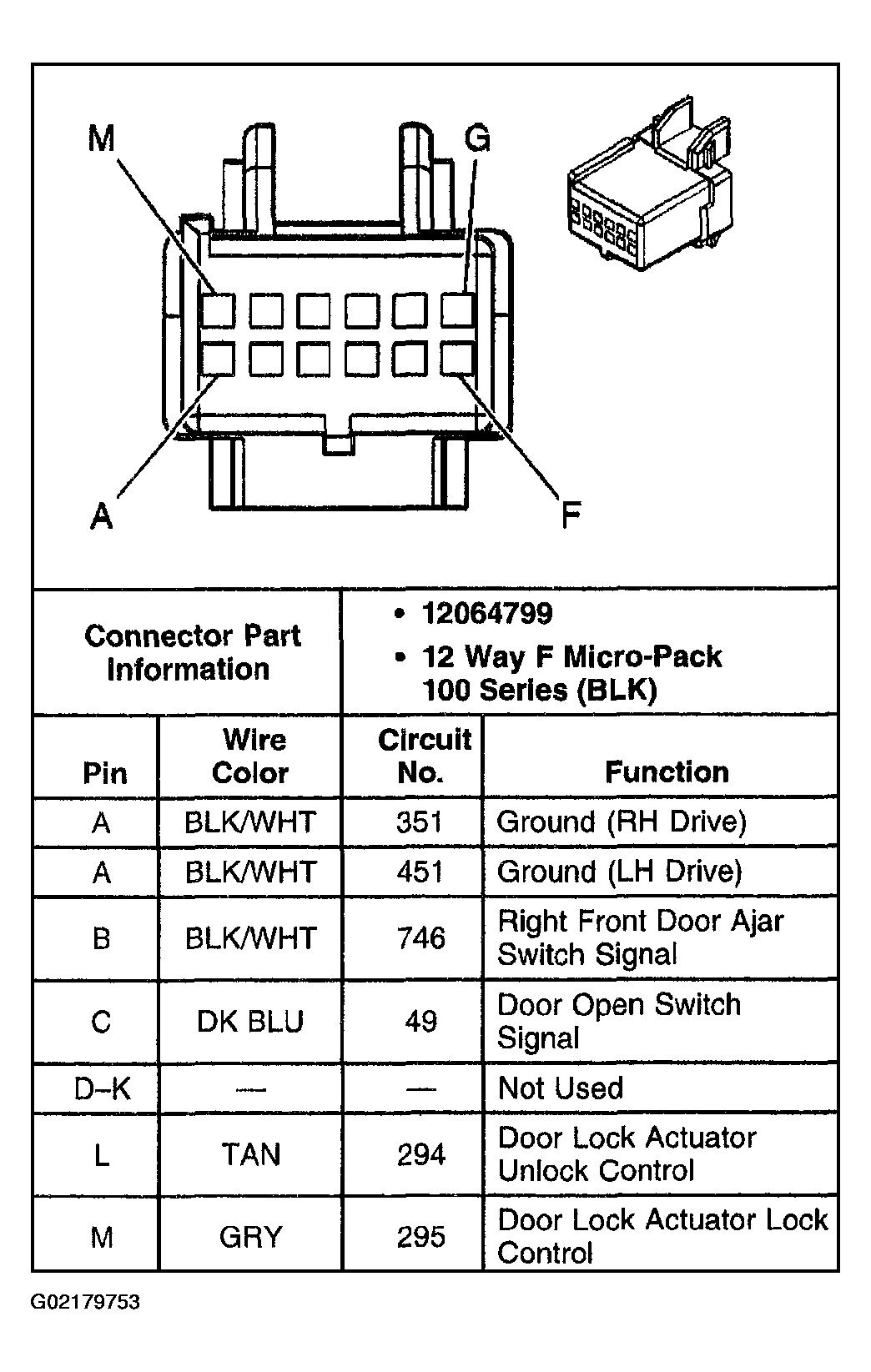

Fig 1: Front Passenger Door Module (FPDM) C2

G02179753

Courtesy of GENERAL MOTORS CORP.
