Engine Oil Level Switch Connector End View

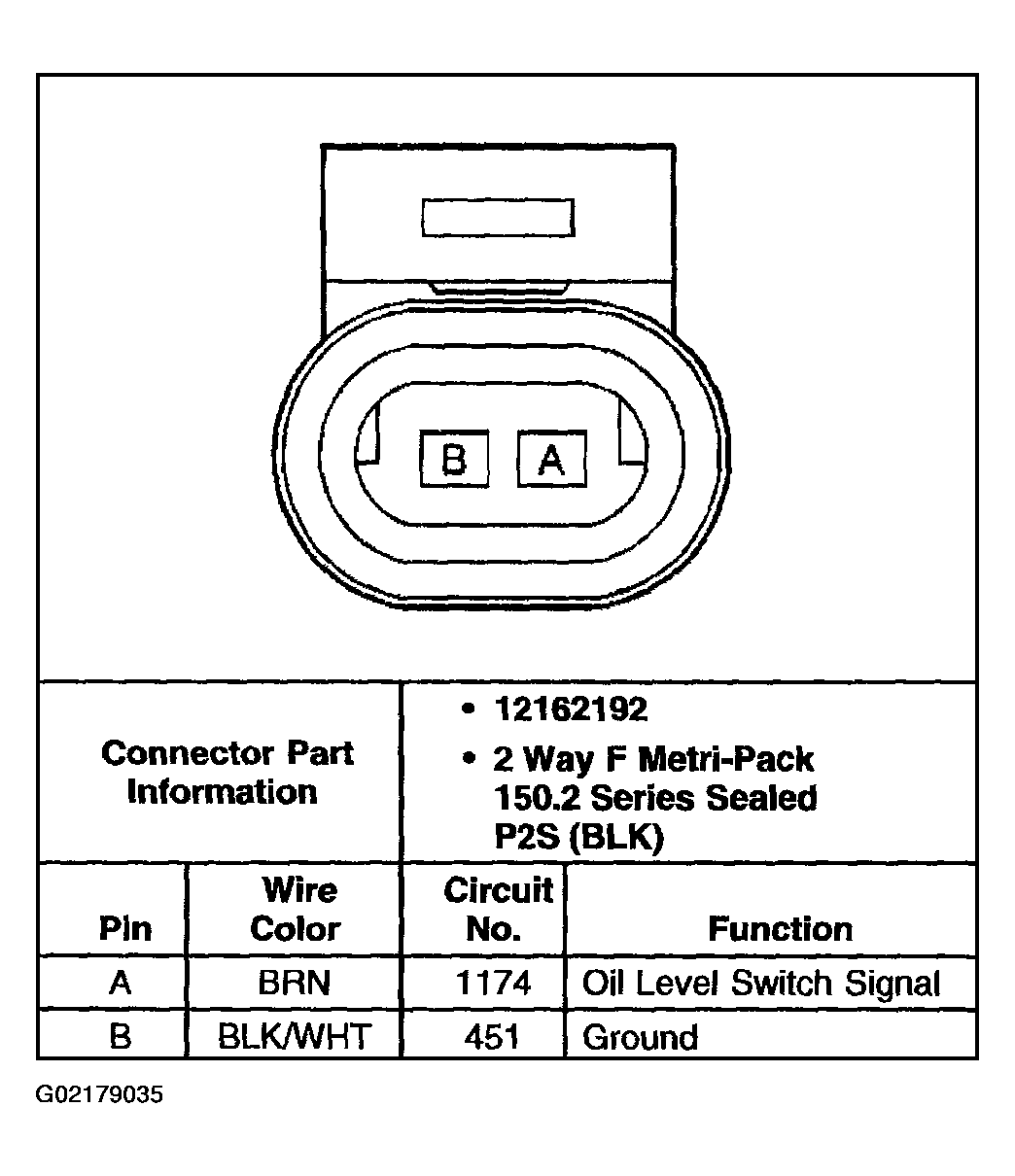

Fig 1: Engine Oil Level Switch

G02179035

Courtesy of GENERAL MOTORS CORP.
