Electronic Suspension Control (ESC) Module Connector End View C3

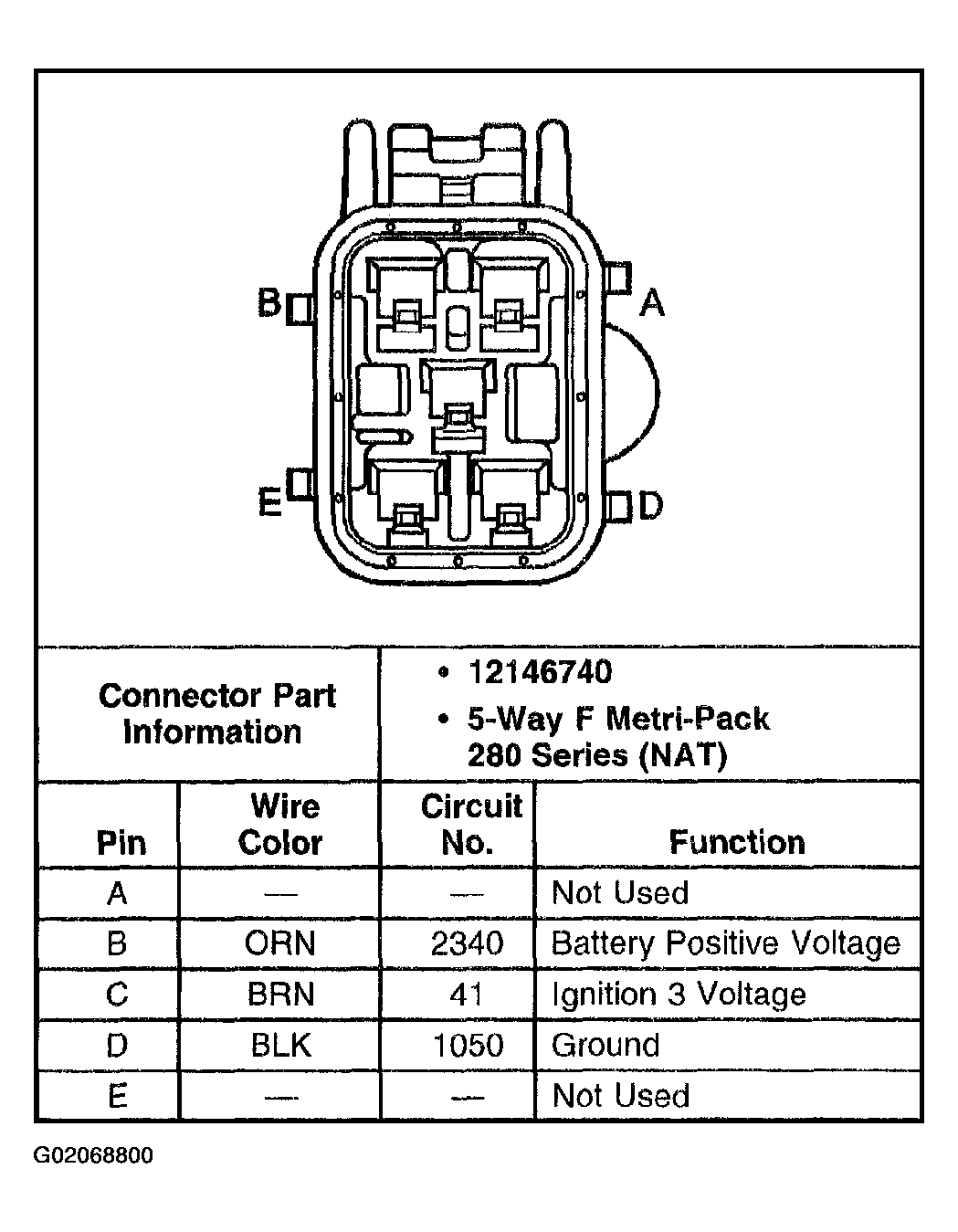

Fig 1: Electronic Suspension Control (ESC) Module C3

G02068800

Courtesy of GENERAL MOTORS CORP.
