Home >> Cadillac >> 2003 >> Seville SLS >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Driver Door Module (DDM) Connector End View C4

Driver Door Module (DDM) Connector End View C4

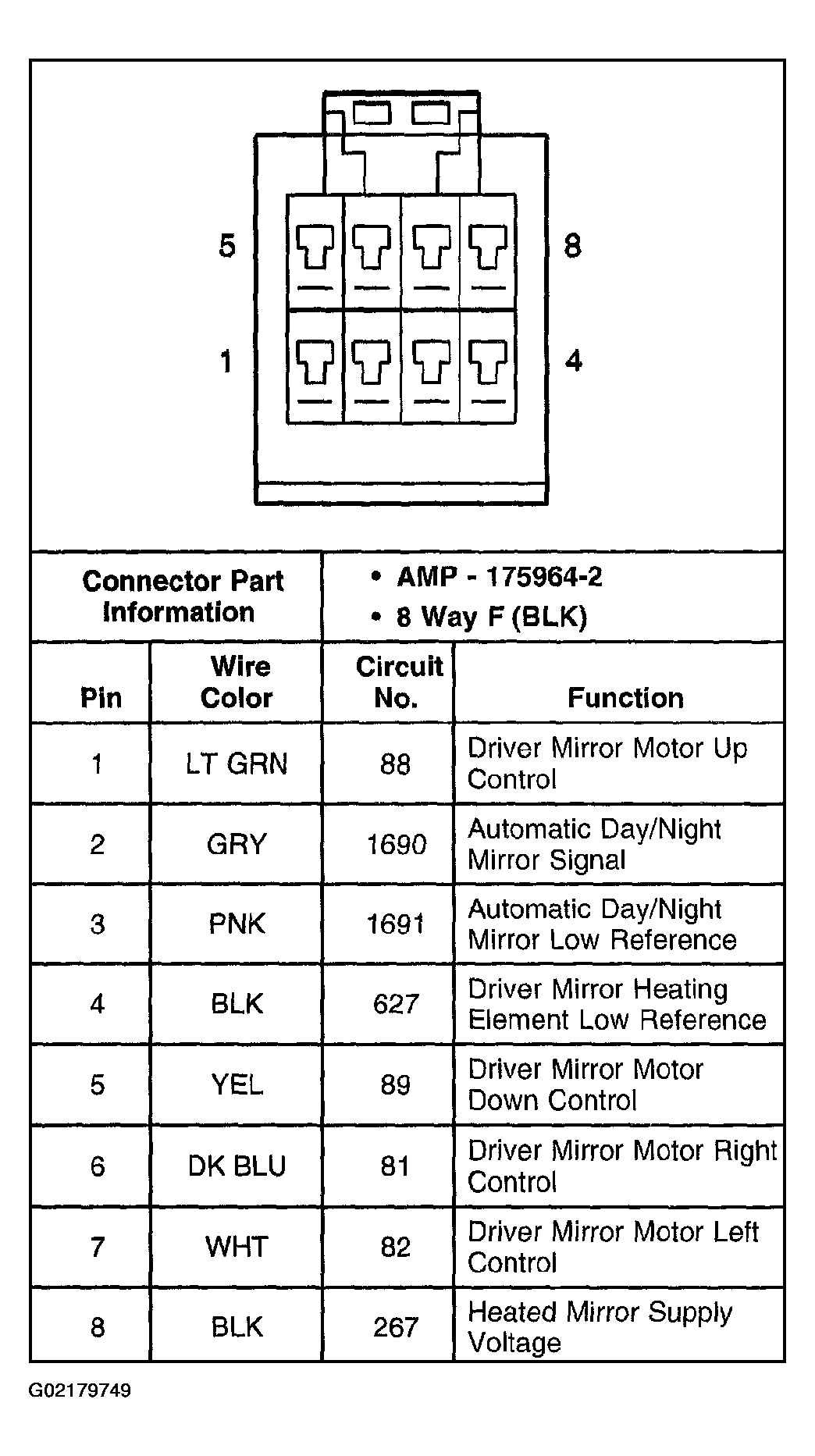

Fig 1: Driver Door Module (DDM) C4

G02179749

Courtesy of GENERAL MOTORS CORP.
