Driver Door Module (DDM) Connector End View C3

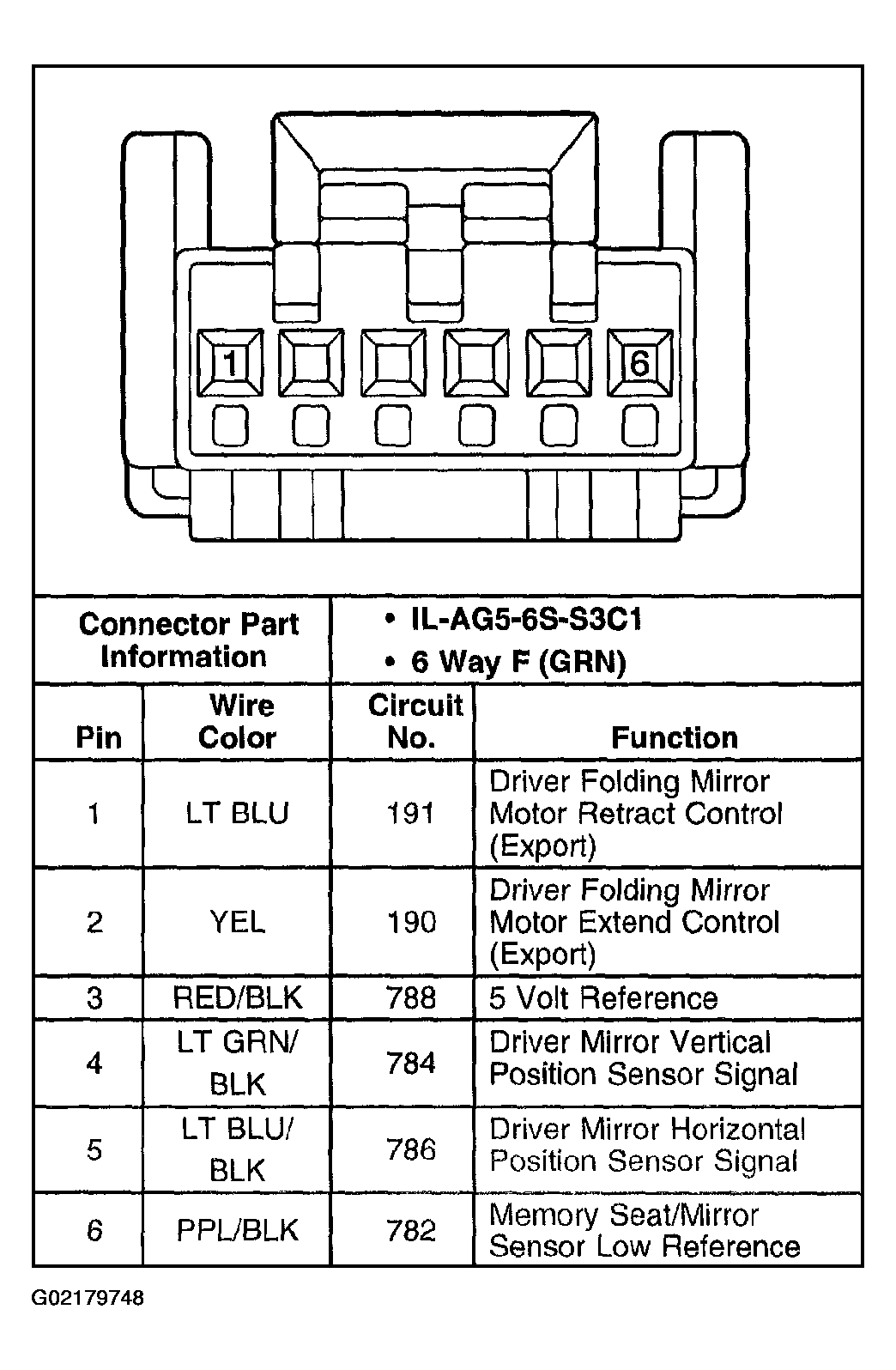

Fig 1: Driver Door Module (DDM C3

G02179748

Courtesy of GENERAL MOTORS CORP.
