Home >> Cadillac >> 2003 >> Seville SLS >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Digital Radio Receiver Connector End View

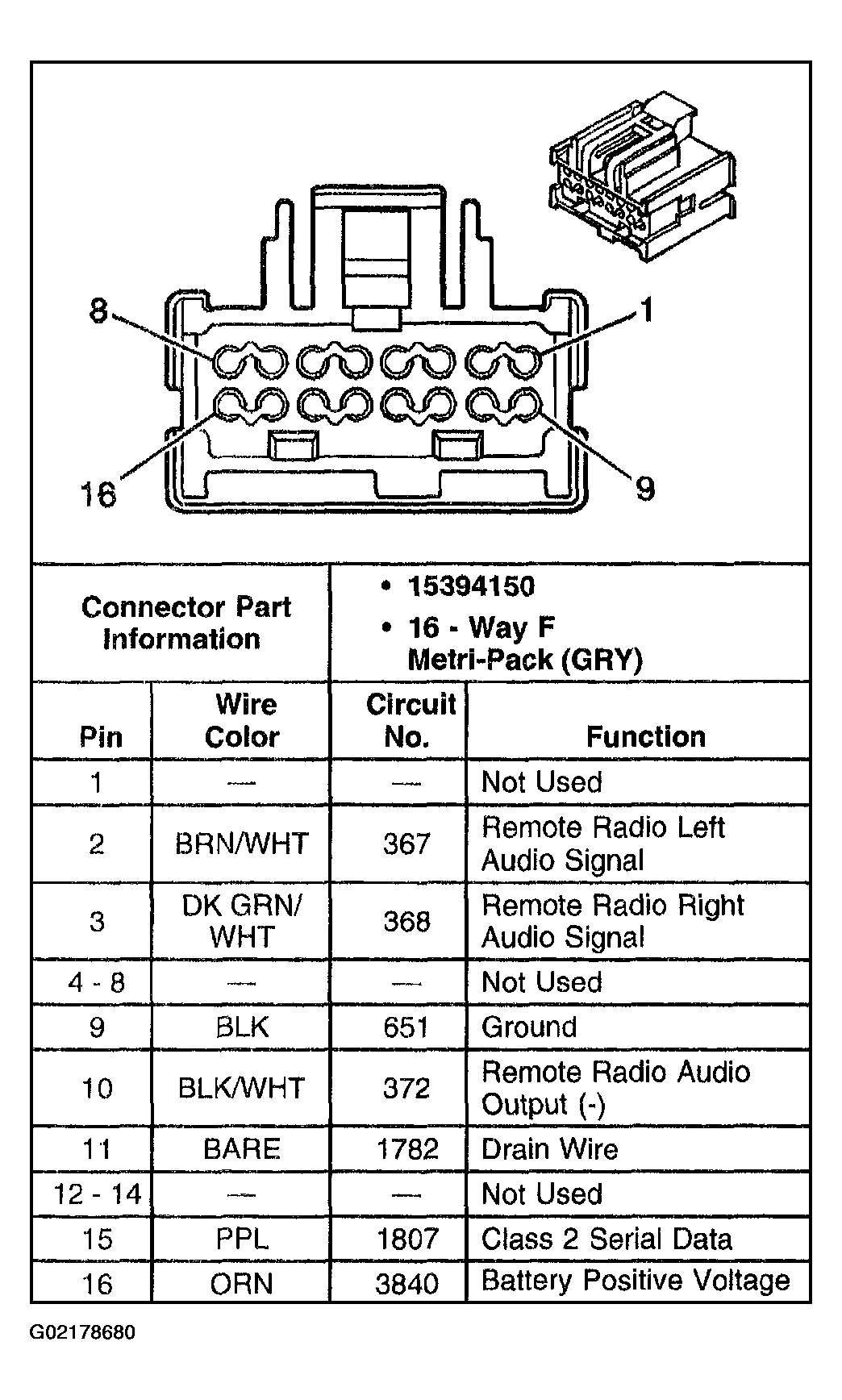

Digital Radio Receiver Connector End View

Fig 1: Digital Radio Receiver (U2K)

G02178680

Courtesy of GENERAL MOTORS CORP.
