Coolant Level Switch Connector End View

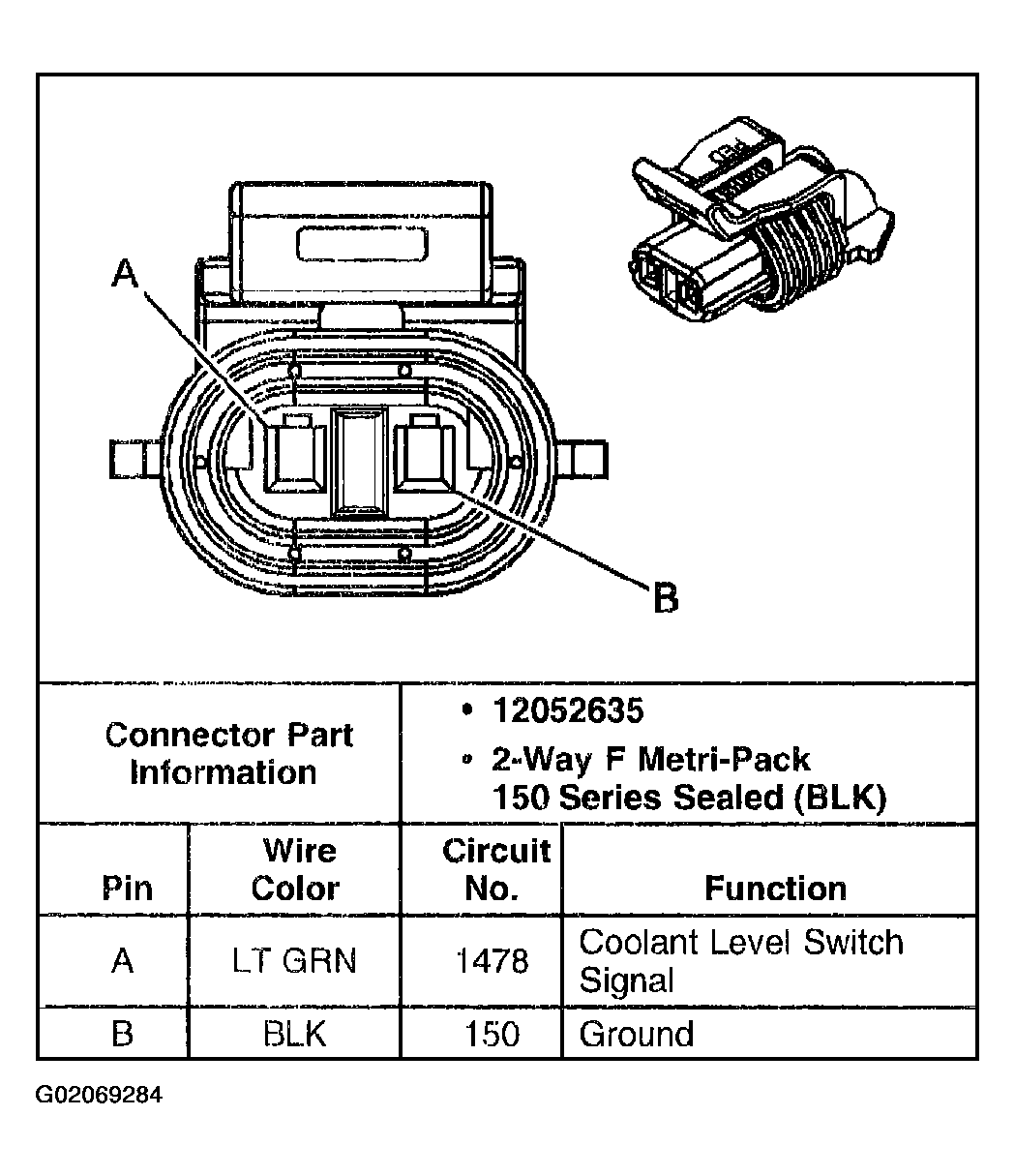

Fig 1: Coolant Level Switch

G02069284

Courtesy of GENERAL MOTORS CORP.
