Removal Procedure

  1. Turn OFF the ignition.
  2. Remove the rear compartment trim. Refer to BODY REAR END  in Body Rear End.
  3. To access the mounting nuts, remove the rear trim panel shelf. Refer to INTERIOR TRIM  in Interior Trim.
  4. Remove the 2 yaw rate sensor mounting nuts.
  5. Disconnect the yaw rate sensor electrical connector.
  6. Remove the yaw rate sensor from the mounting studs.

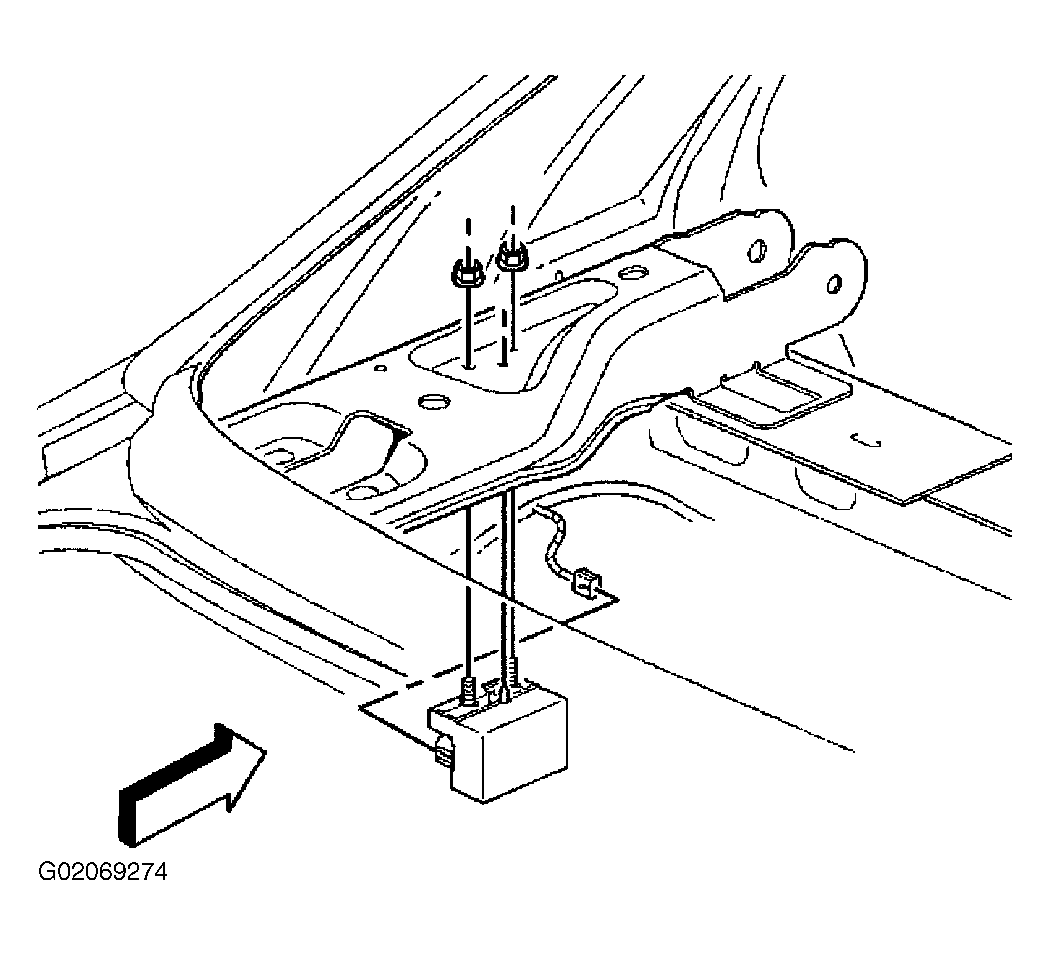

    Fig 1: Removing Yaw Rate Sensor From Mounting Studs
    G02069274Courtesy of GENERAL MOTORS CORP.
