Removal Procedure

CAUTION: If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.
IMPORTANT: Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  1. Open the rear compartment in order to access the lower reveal molding.
  2. Remove the four fasteners (1) securing the rear window lower reveal molding (2) to the body.

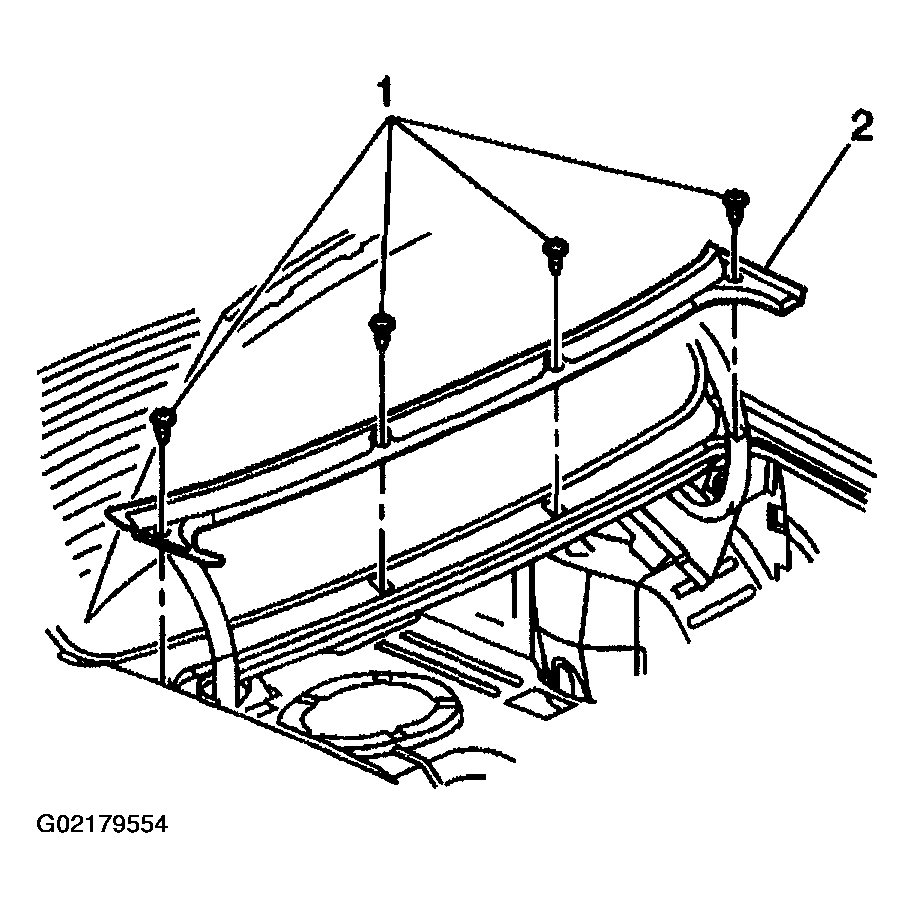

    Fig 1: Removing Rear Window Lower Reveal Molding & Fasteners
    G02179554Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear sail panels. Refer to SAIL PANEL REPLACEMENT  in Interior Trim.
  4. Disconnect the rear window defogger left electrical connector.

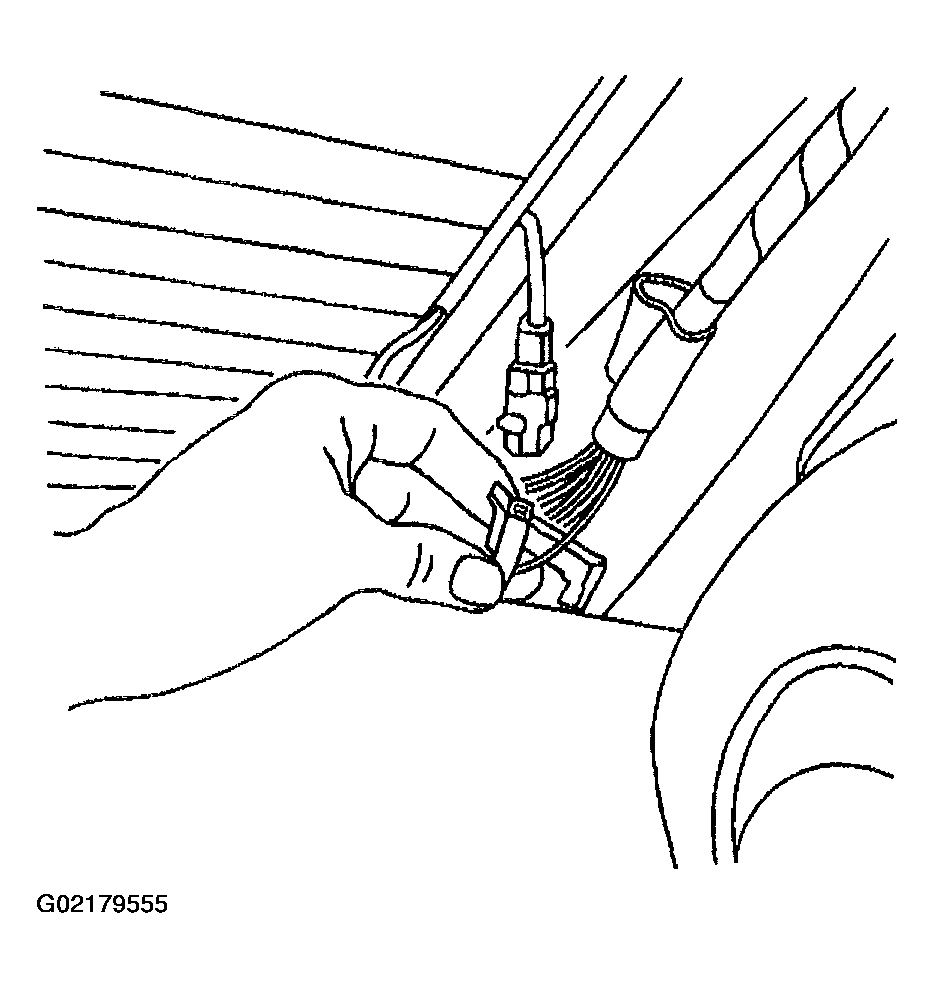

    Fig 2: Disconnecting Rear Window Defogger Left Electrical Connector
    G02179555Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the rear window defogger right electrical connector.

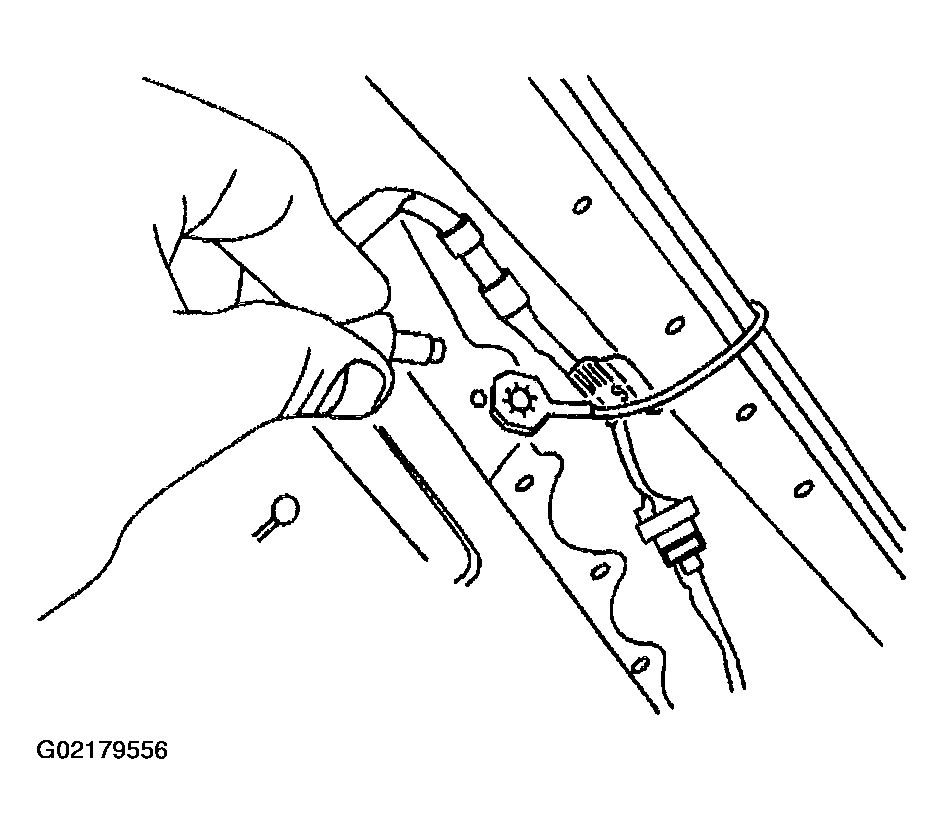

    Fig 3: Disconnecting Rear Window Defogger Right Electrical Connector
    G02179556Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Removal of the rear window requires the replacement of the rear window reveal molding (1).
  6. Remove the rear window reveal molding (1).

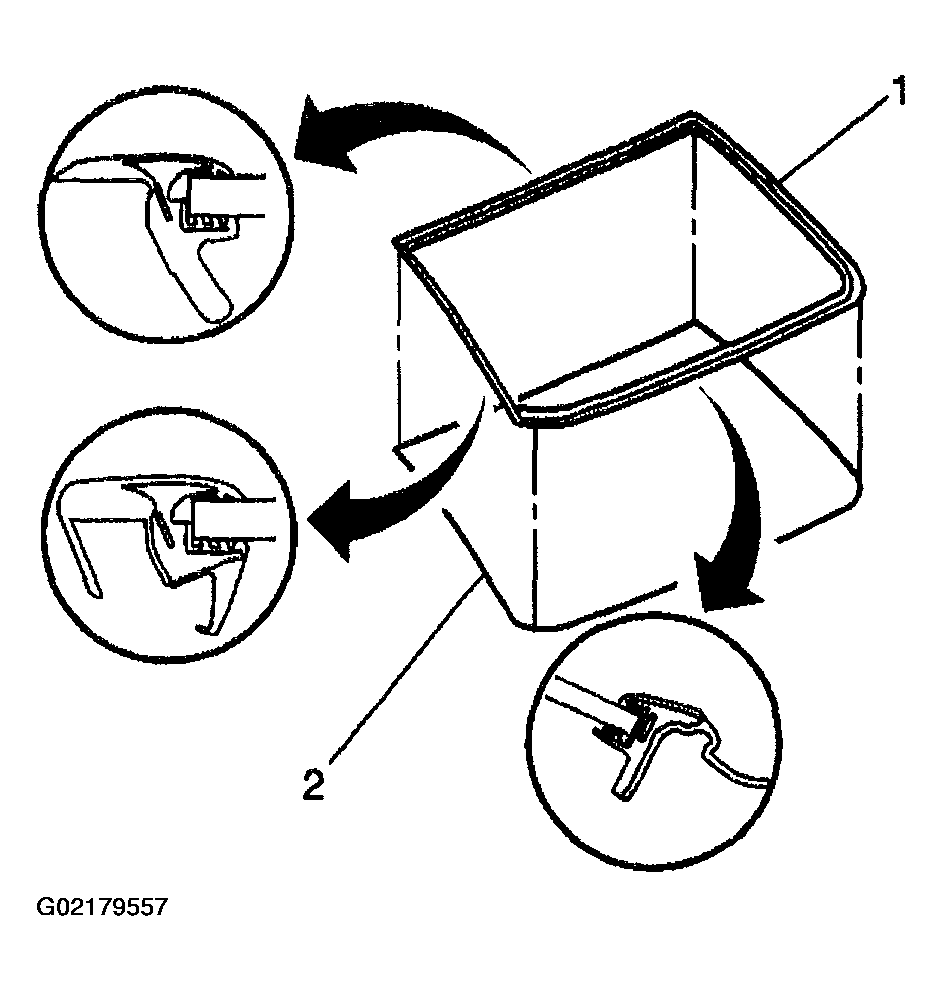

    Fig 4: Removing Rear Window Reveal Molding
    G02179557Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the rear window defogger connectors.
  8. Remove the OnStar® antenna. Refer to CELLULAR COMMUNICATION SYSTEM  and CELLULAR COMMUNICATION SYSTEM  in Cellular Communication.
    CAUTION: If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
  9. Cover to protect the following parts from broken glass:
    1. 9.1. Upper dash pad.
    2. 9.2. Defroster outlets and A/C outlets.
    3. 9.3. Seats and carpeting.
    CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.
  10. Remove the rear window reveal molding.
    1. 10.1. Grasp the lower corner of the rear window reveal molding by hand and slowly pull the reveal molding away from the rear window.
    2. 10.2. If the rear window reveal molding (1) will not release, use a utility knife in order to cut around the rear window in order to remove the rear window reveal molding.
      Fig 5: Removing Rear Window Reveal Molding Using Utility Knife
      G02179558Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Keep the cutting edge of the tool against the window.
  11. This will allow the urethane adhesive to be separated from the window.
    • Leave a base of urethane on the pinchweld flange.
    • The only suitable lubrication is clear water.
    • Use J 24402-A, J 39032  or equivalent in order to remove the window.

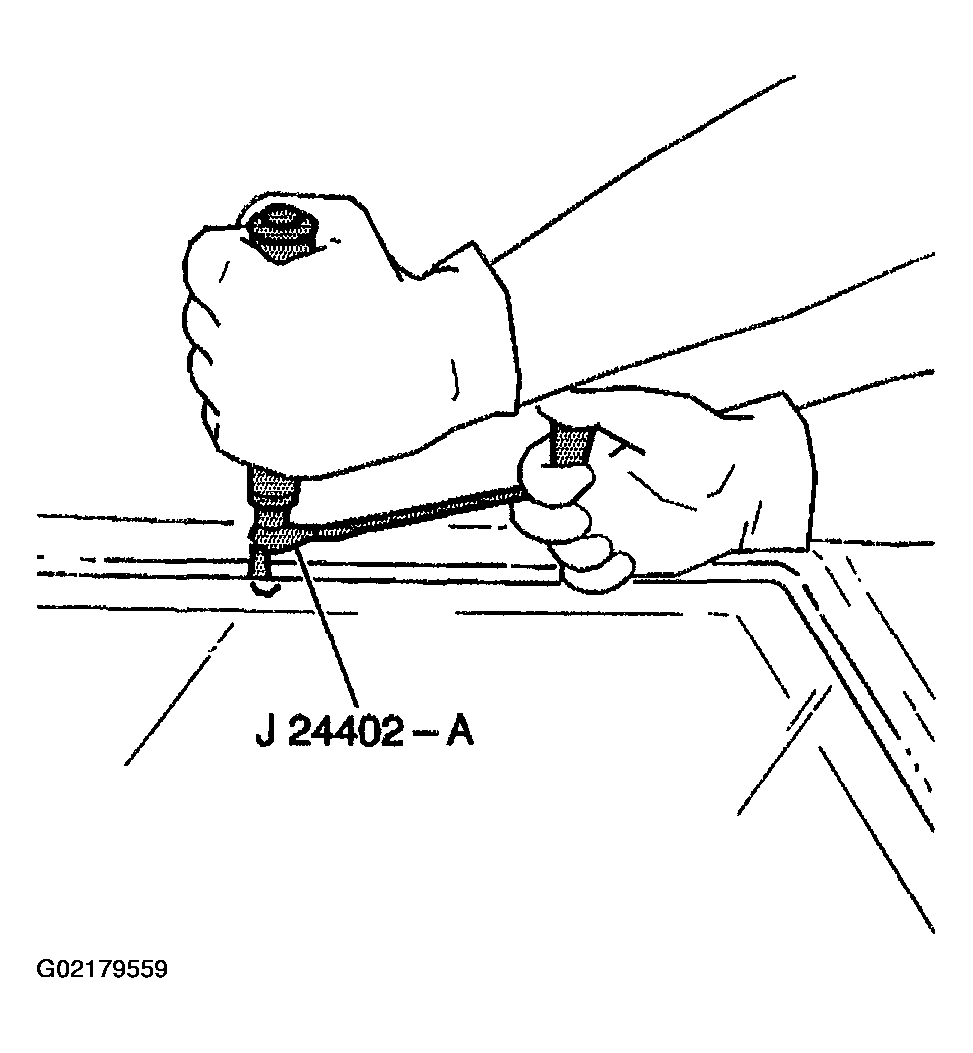

      Fig 6: Removing Rear Window Using J 24402-A
      G02179559Courtesy of GENERAL MOTORS CORP.
  12. With the aid of an assistant, use the suction cups in order to lift the rear window from the opening.

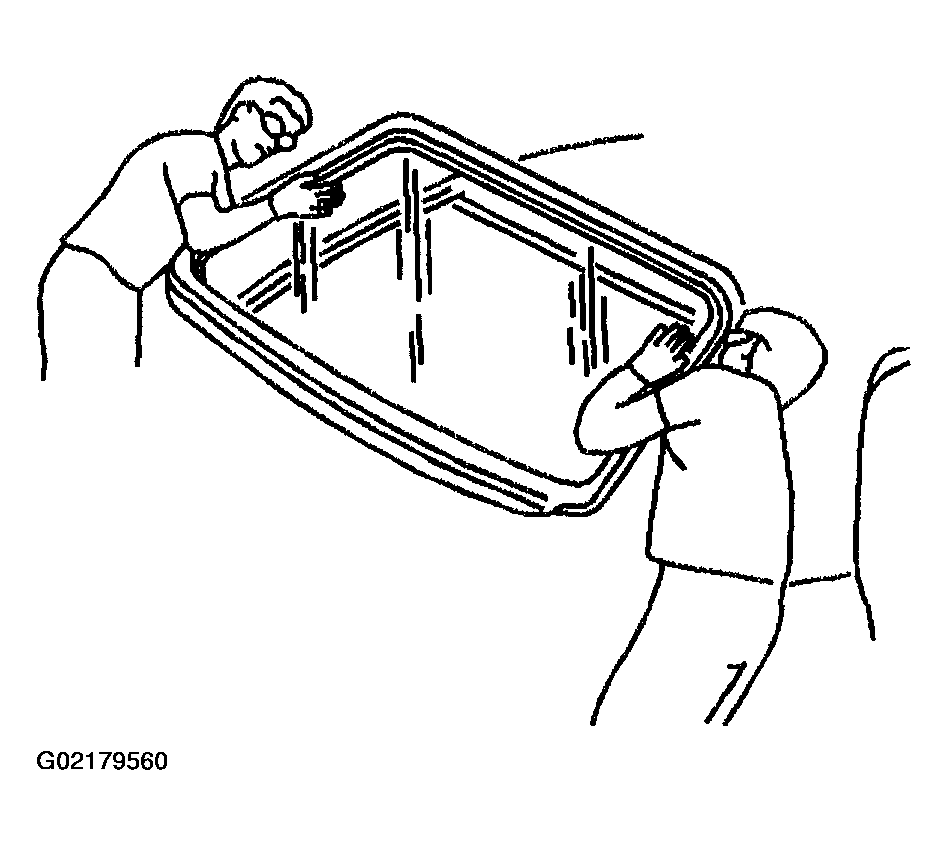

    Fig 7: Removing Rear Window From Opening
    G02179560Courtesy of GENERAL MOTORS CORP.
