Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  in Doors.
  2. Remove the inside door handle from the door trim panel. Refer to DOOR HANDLE REPLACEMENT - FRONT INSIDE  in Doors.
  3. Disconnect the memory seat switch (1) electrical connector (2).

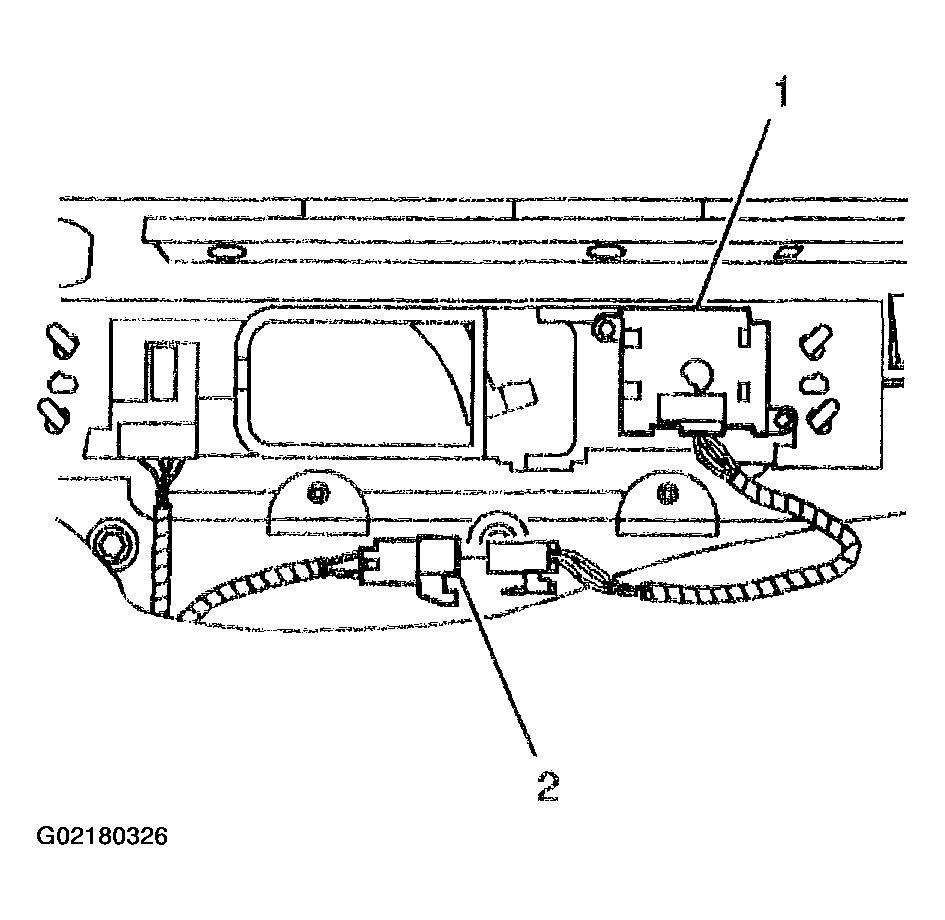

    Fig 1: Disconnecting Memory Seat Switch Electrical Connector
    G02180326Courtesy of GENERAL MOTORS CORP.
  4. Remove the fasteners (1) from the memory seat switch (2).

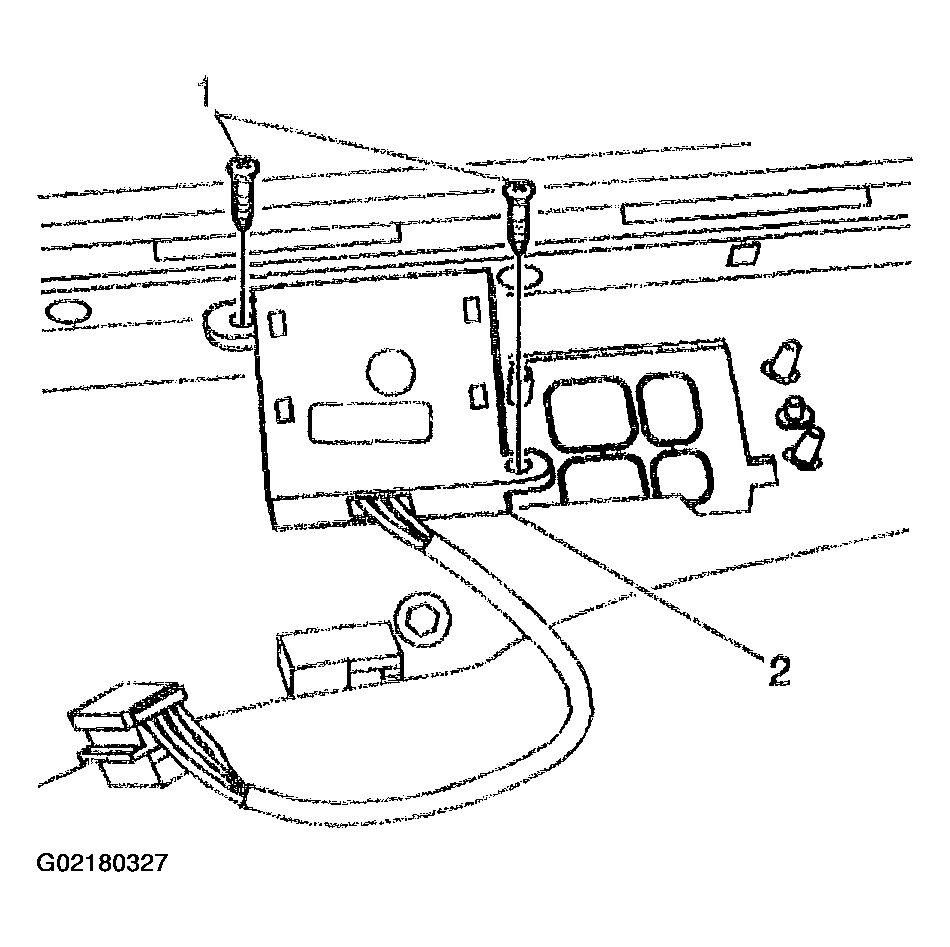

    Fig 2: Removing Memory Seat Switch Fasteners
    G02180327Courtesy of GENERAL MOTORS CORP.
  5. Remove the memory seat switch (2), from the door trim panel.
