Removal Procedure

  1. Remove the right side windshield garnish molding. Refer to INTERIOR TRIM  in Interior Trim.
  2. Remove the center pillar trim panel. Refer to INTERIOR TRIM  in Interior Trim.
  3. Remove the right rear sail panel. Refer to SAIL PANEL REPLACEMENT  in Interior Trim.
  4. Lower the headliner in order to gain access to the antenna cable harness along the right side of the vehicle. Refer to HEADLINER REPLACEMENT (W/O CF5)  or INTERIOR TRIM in Interior Trim.
  5. Disconnect the antenna cable connection (1) at the front of the vehicle.

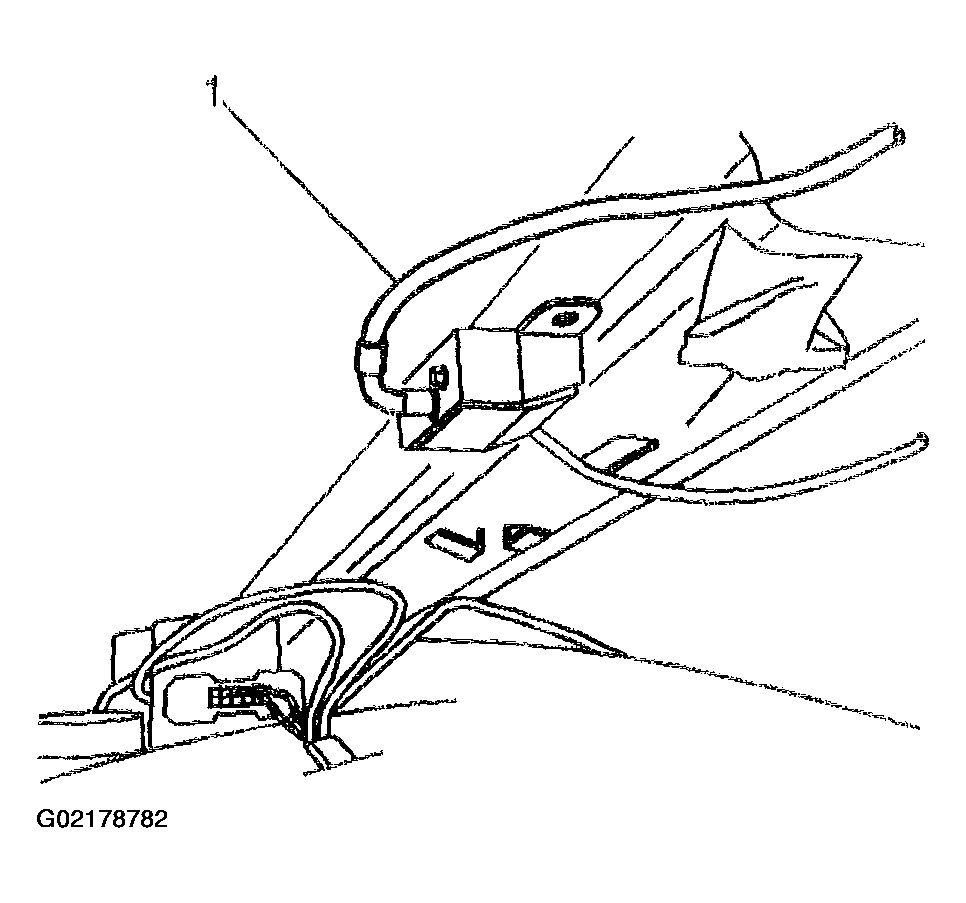

    Fig 1: Disconnecting Antenna Cable Connection
    G02178782Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the antenna cable (2) from the antenna module located on the rear roof beam.
    Fig 2: Disconnecting Antenna Cable
    G02178783Courtesy of GENERAL MOTORS CORP.
  7. Remove the cable clips (3) from the roof beams.
  8. Remove the antenna cable from the vehicle.
  9. If the antenna cable is to be replaced, remove the antenna cable clips (3) from the antenna cable.

    The new antenna cable does not have clips (3)

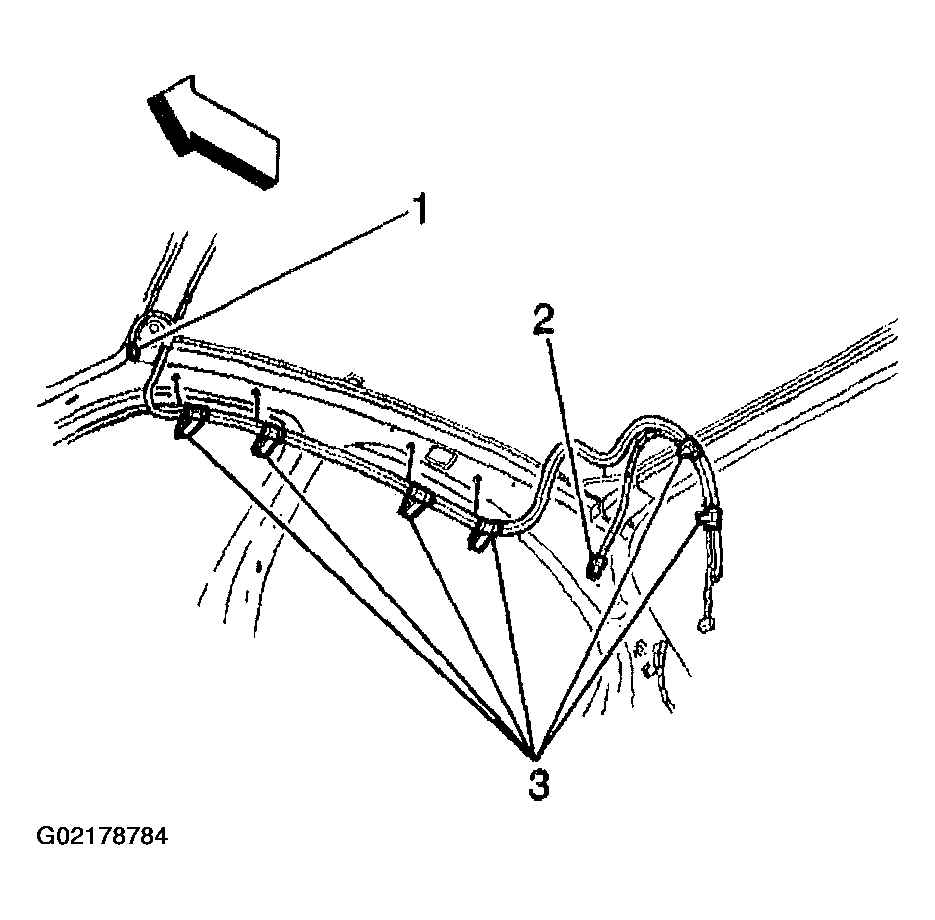

    Fig 3: Removing Antenna Cable Clips
    G02178784Courtesy of GENERAL MOTORS CORP.
