Dash Integration Module (DIM)

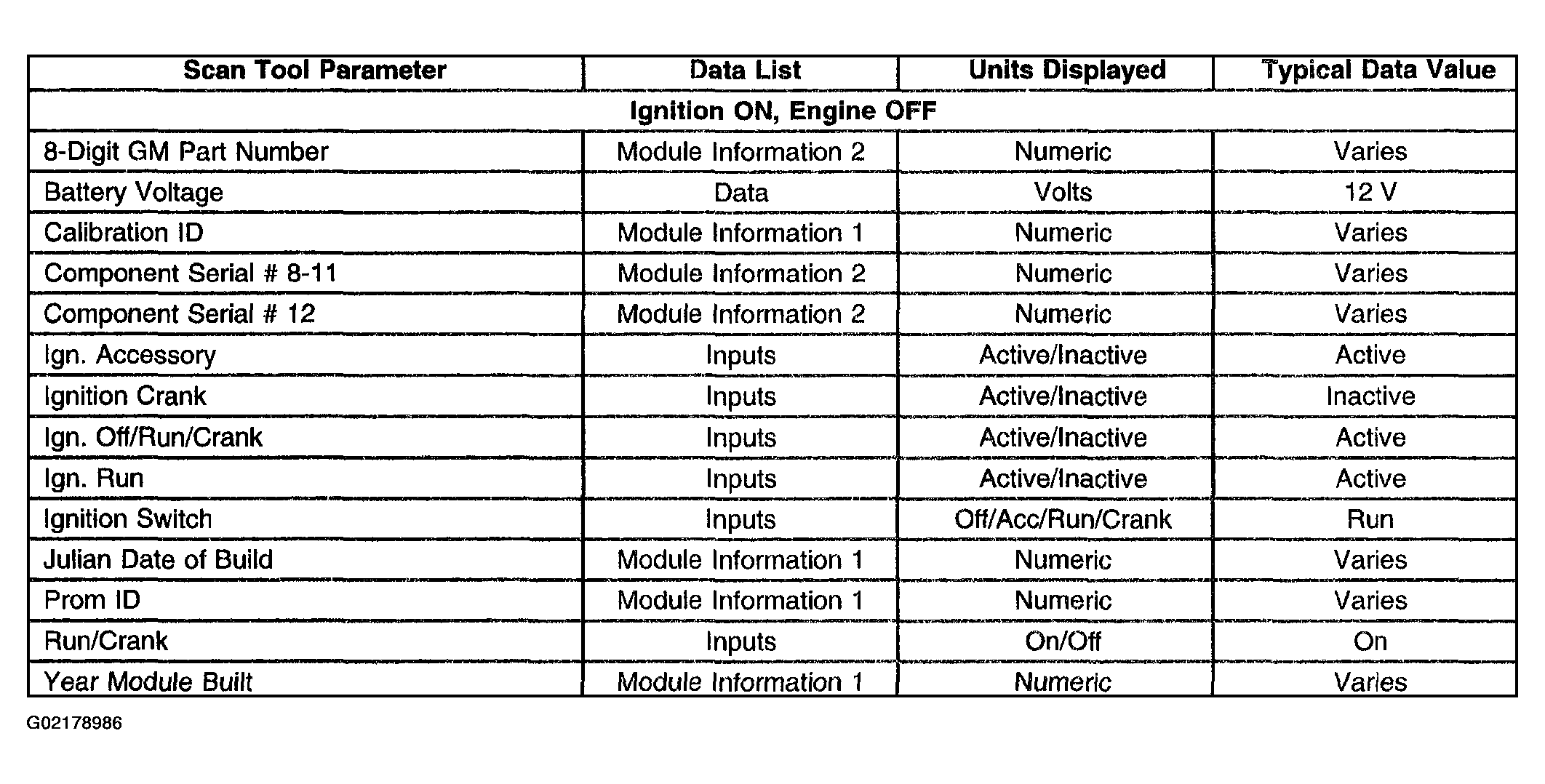

Fig 1: Dash Integration Module (DIM) Scan Tool Data List

G02178986

Courtesy of GENERAL MOTORS CORP.
