Vehicle Communication Interface Module (VCIM) Connector End View C3

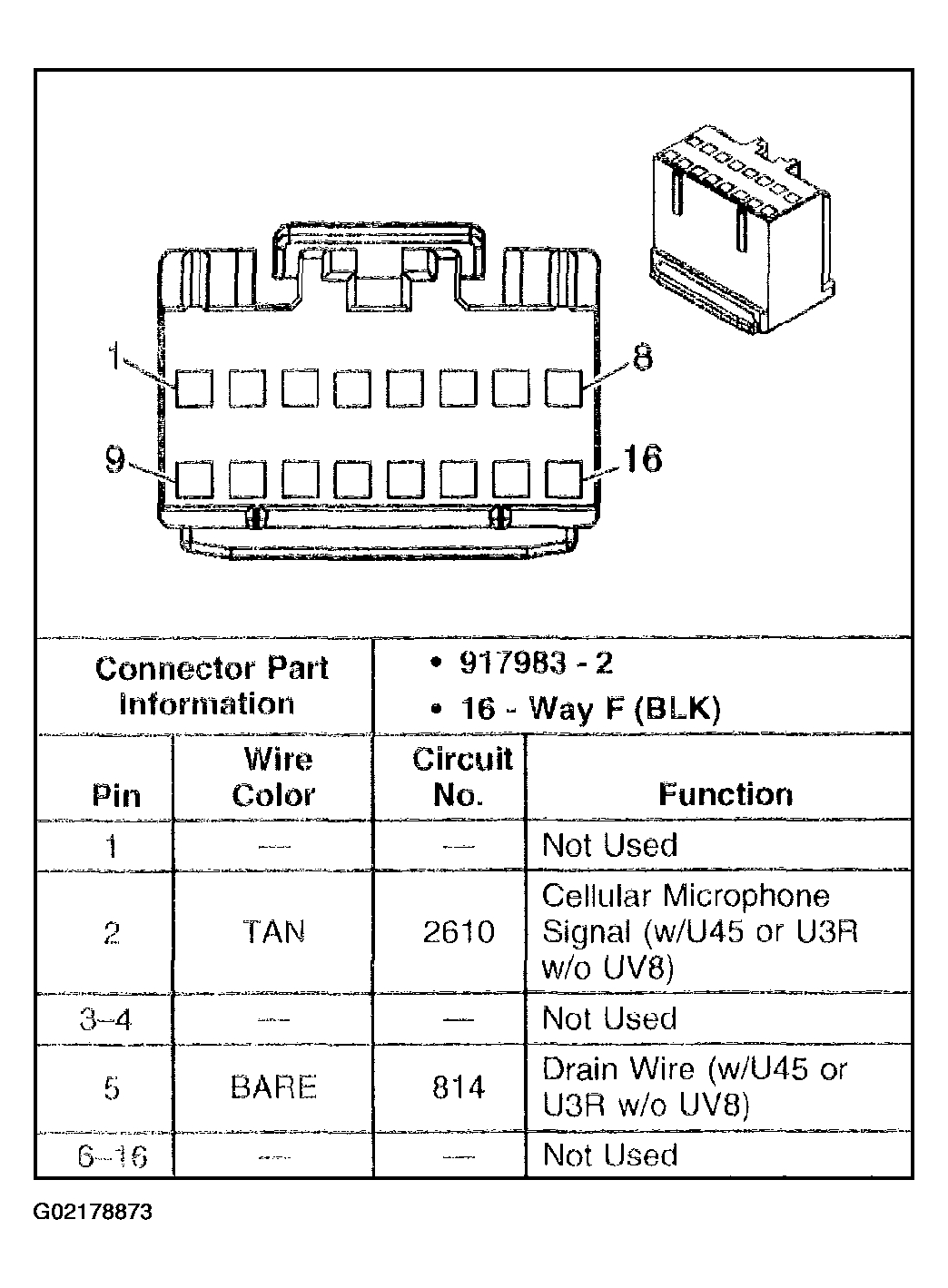

Fig 1: Vehicle Communication Interface Module (VCIM) C3 (Early Production)
G02178873Courtesy of GENERAL MOTORS CORP.
