Steering Column Module Connector End View C3

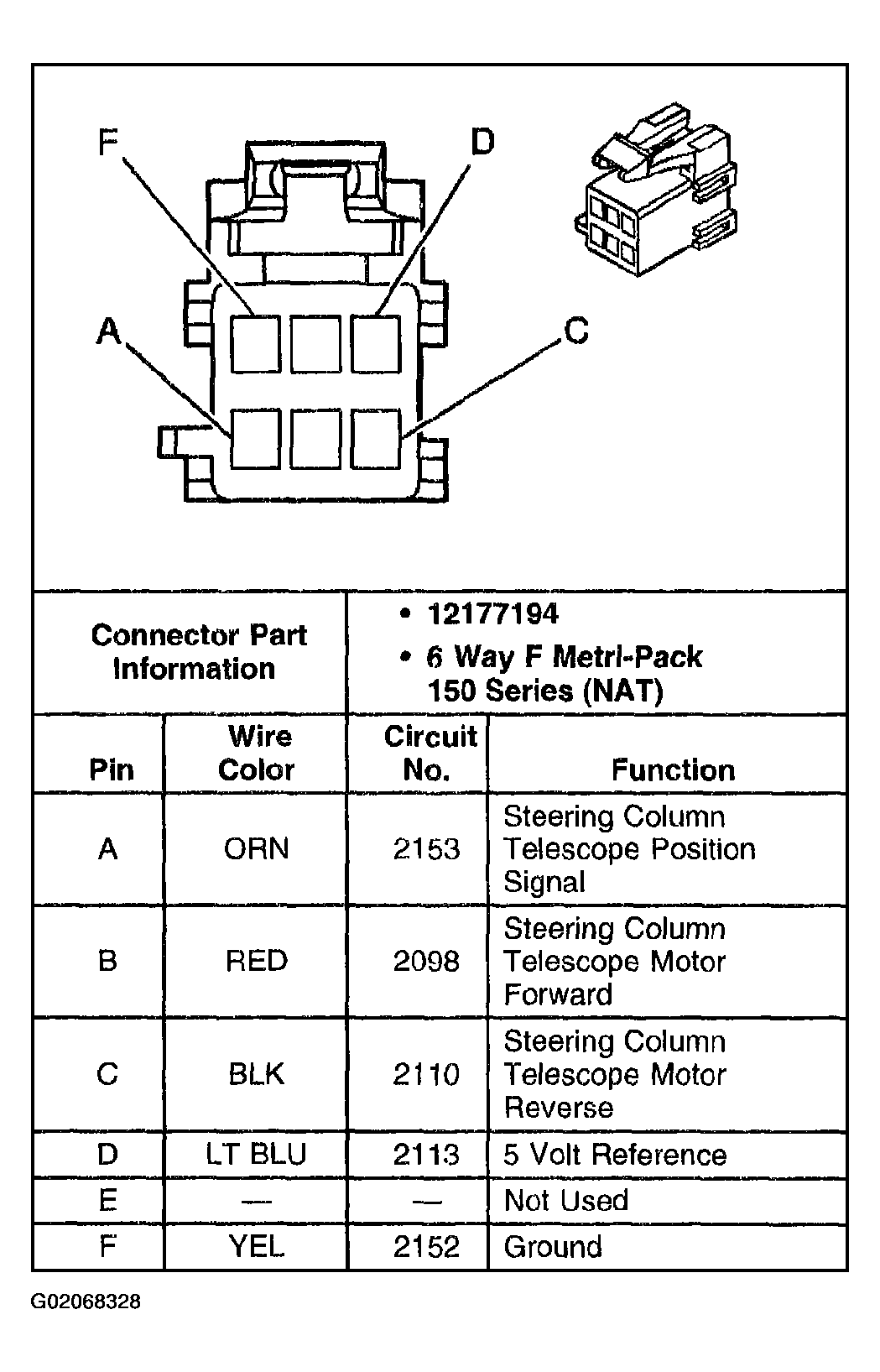

Fig 1: Steering Column Module C3

G02068328

Courtesy of GENERAL MOTORS CORP.
