Rear Object Sensor Control Module Connector End View

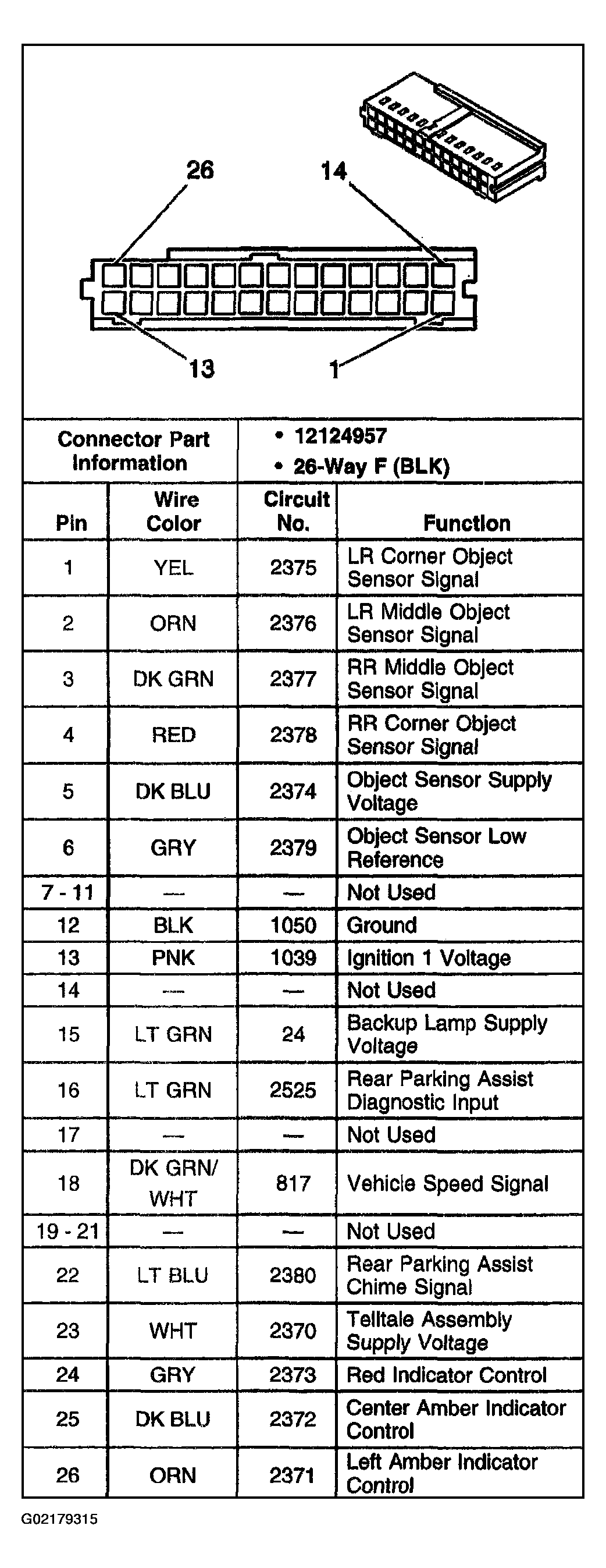

Fig 1: Rear Object Sensor Control Module

G02179315

Courtesy of GENERAL MOTORS CORP.
