Memory/Personalization Function Switch Connector End View

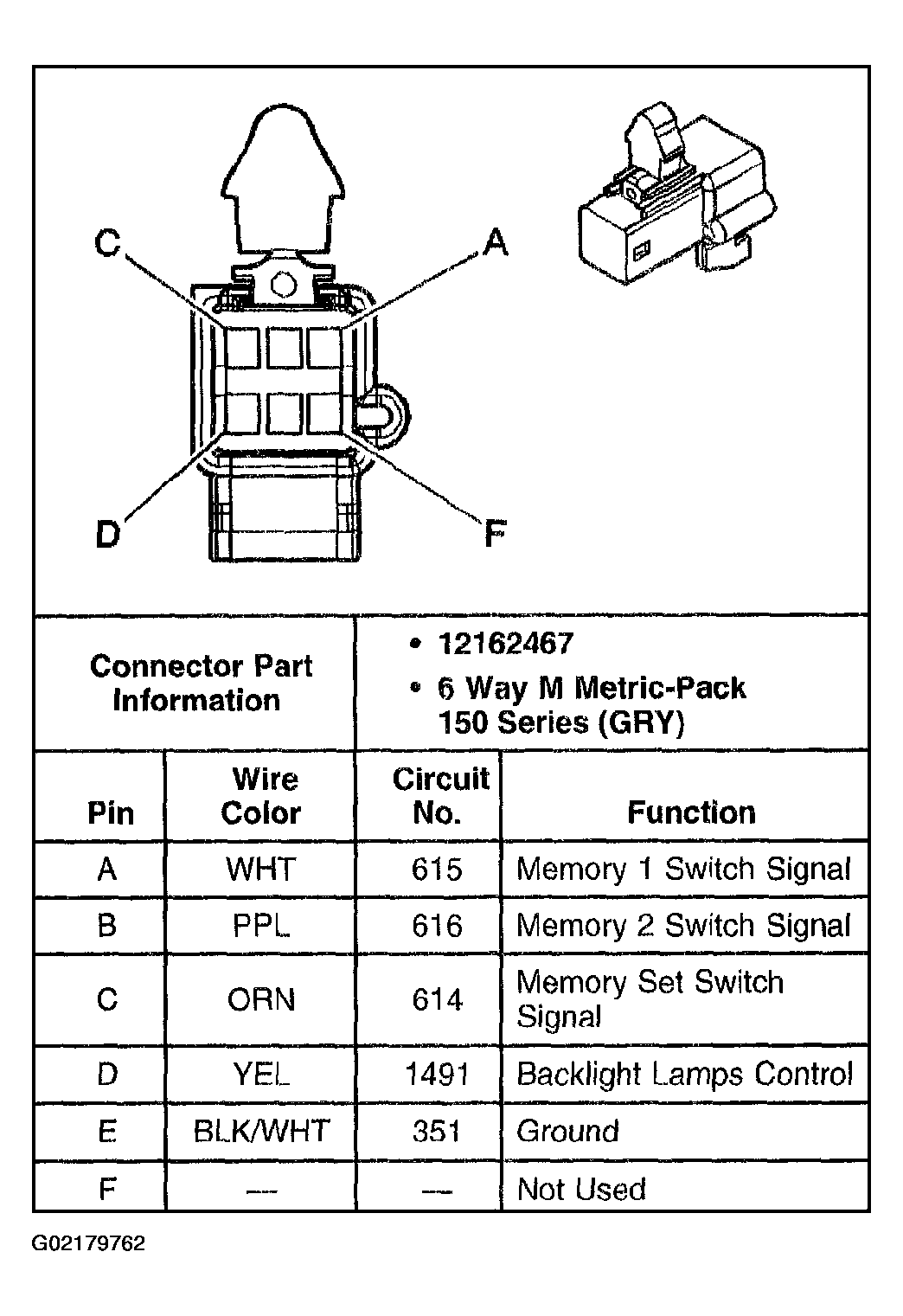

Fig 1: Memory/Personalization Function Switch

G02179762

Courtesy of GENERAL MOTORS CORP.
