Automatic Level Control (ALC) Module Connector End View

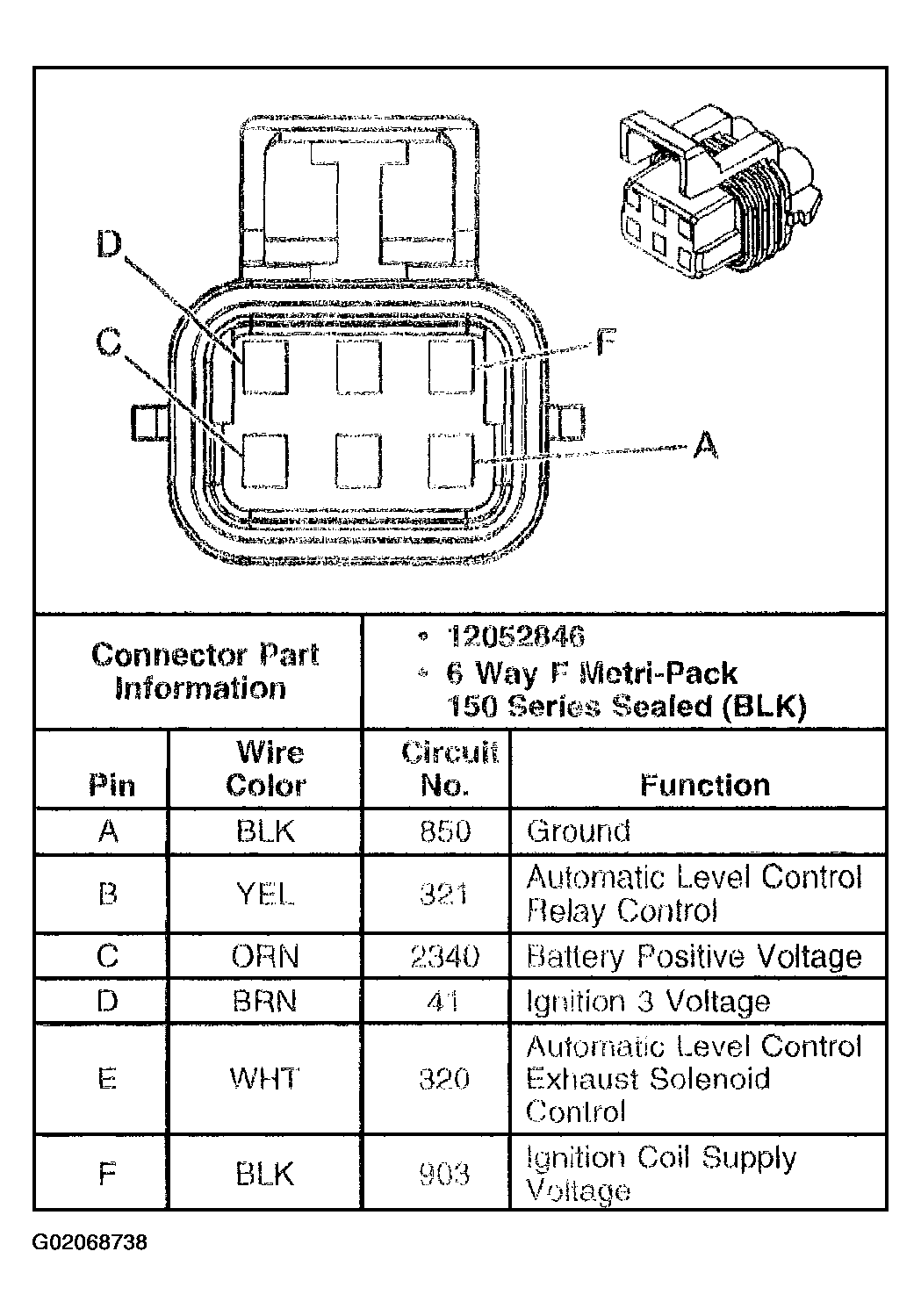

Fig 1: Automatic Level Control (ALC) Module

G02068738

Courtesy of GENERAL MOTORS CORP.
