Door Control Module Schematics (FPDM Power, Grounds, Inputs, and Outputs)

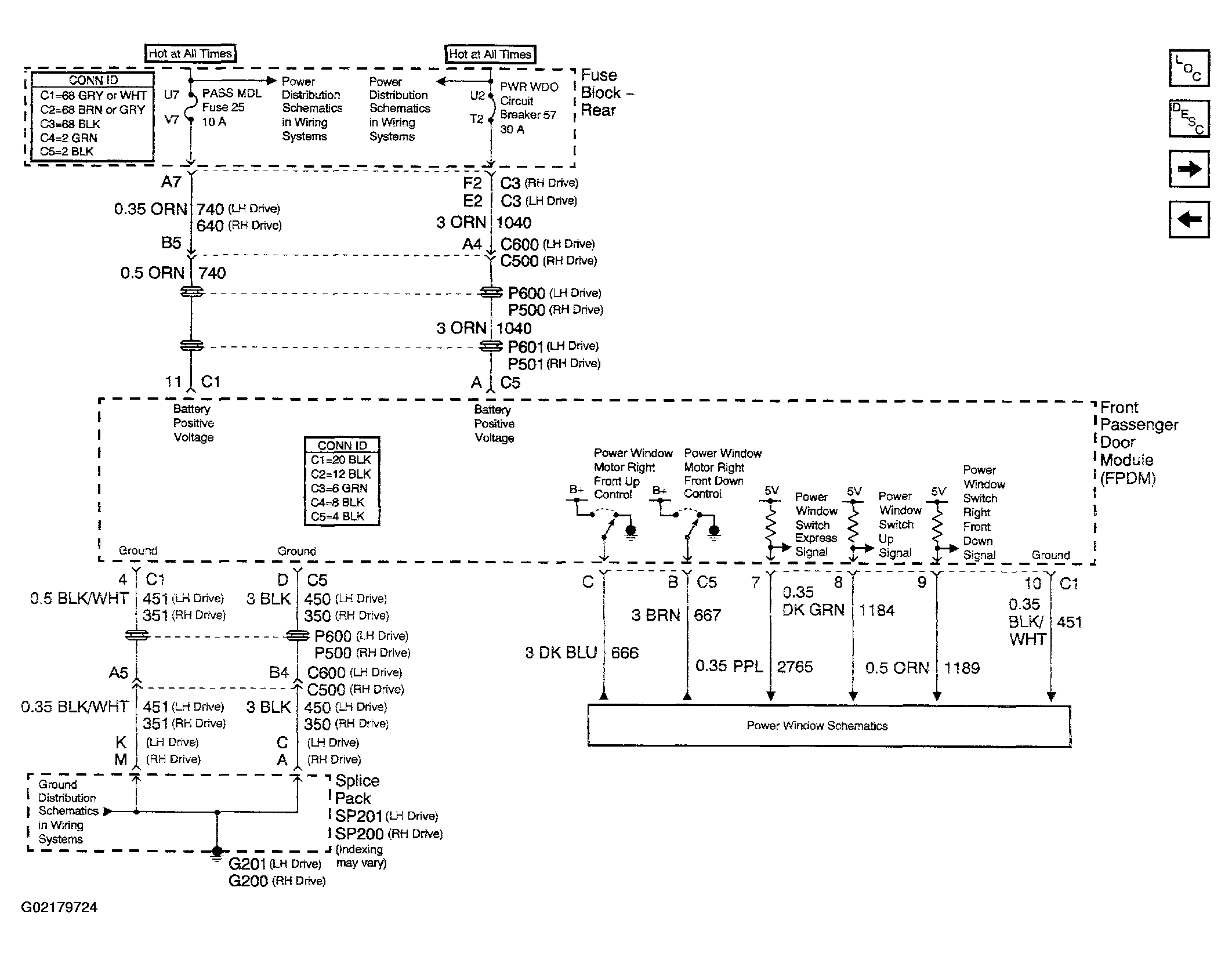

Fig 1: Door Control Module Schematics (FPDM Power, Grounds, Inputs, And Outputs)
G02179724Courtesy of GENERAL MOTORS CORP.
