Door Control Module Schematics (DDM Inputs, Outputs, and Class 2)

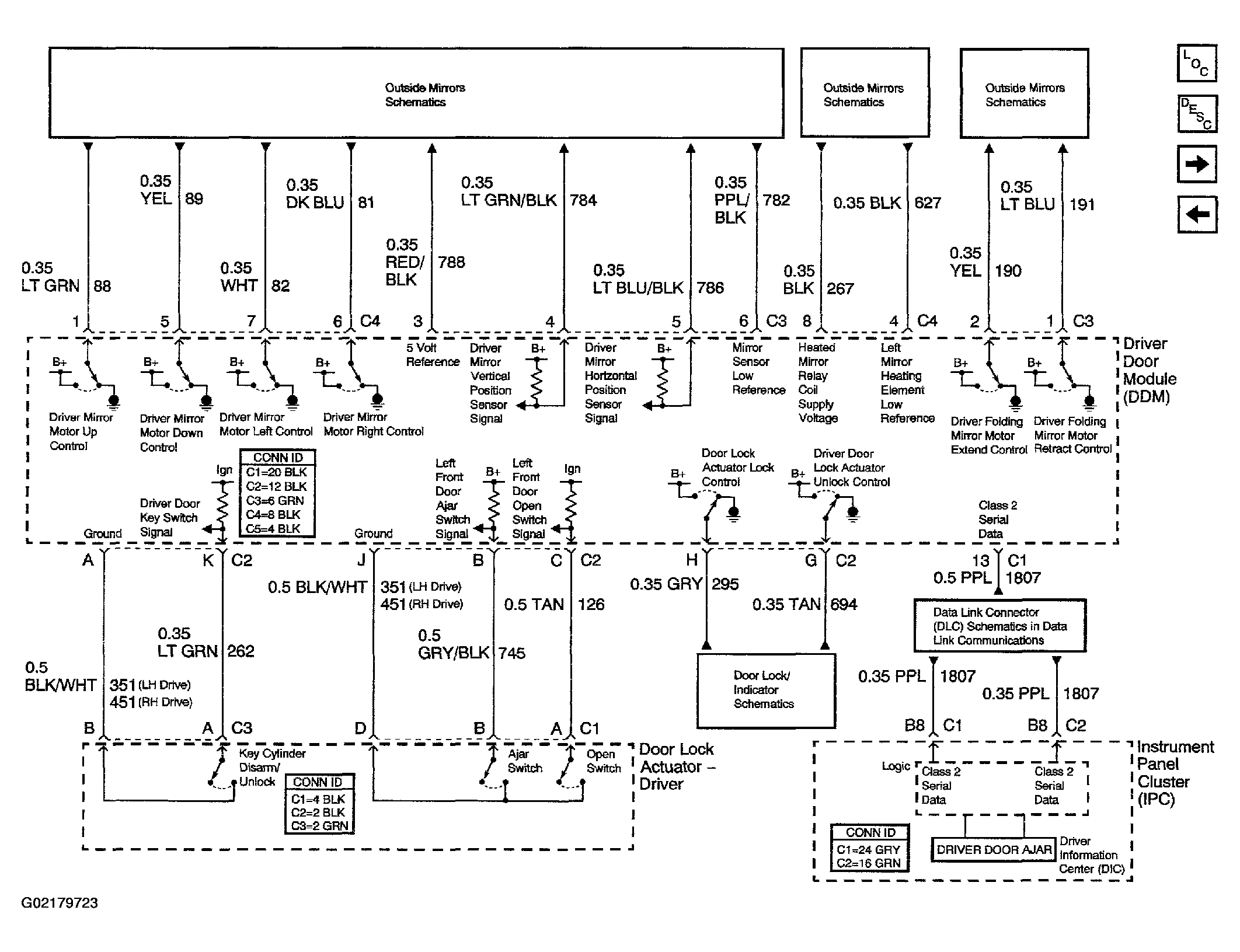

Fig 1: Door Control Module Schematics (DDM Inputs, Outputs, And Class 2)

G02179723

Courtesy of GENERAL MOTORS CORP.
