Installation Procedure

Connect the electrical connectors to the sunroof control module.

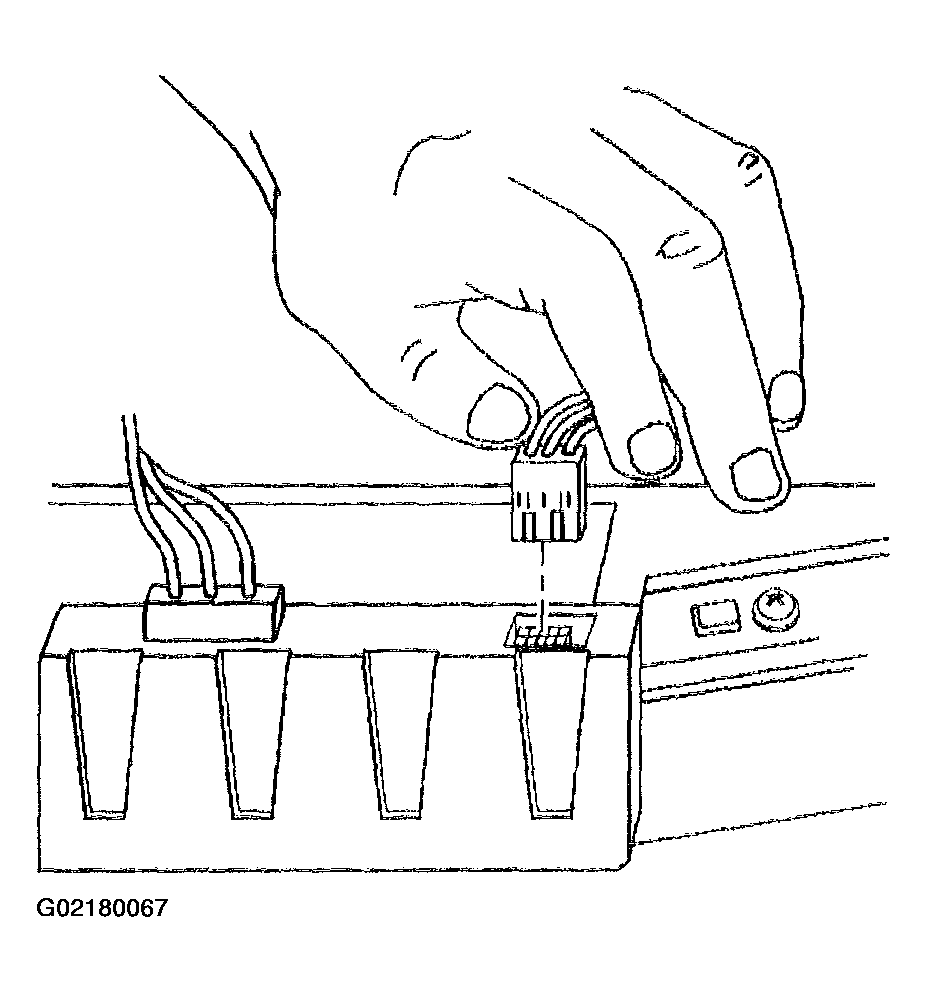

Fig 1: Connecting Sunroof Control Module Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the sunroof control module tabs (2) into the slots (3) located on the sunroof module assembly.
Slide the sunroof control module (1) away from the sunroof motor/actuator until the sunroof control module is fully engaged to the sunroof module assembly.
IMPORTANT: Test the proper operation of the sunroof functions before installing the interior trim components.

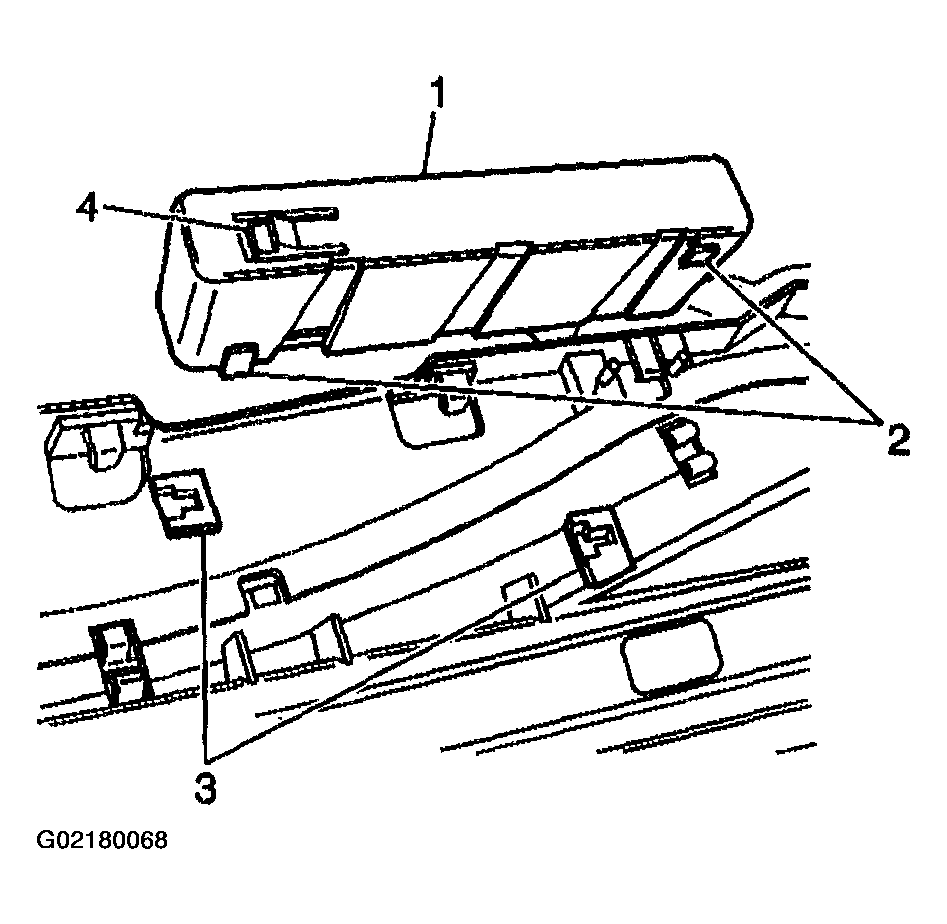

Fig 2: Locating Sunroof Control Module Tabs & Sunroof Module Assembly Slots
Courtesy of GENERAL MOTORS CORP.
Reposition the headliner to the center and rearward roof magnets.
Install the passenger side sail panel. Refer to SAIL PANEL REPLACEMENT in Interior Trim.

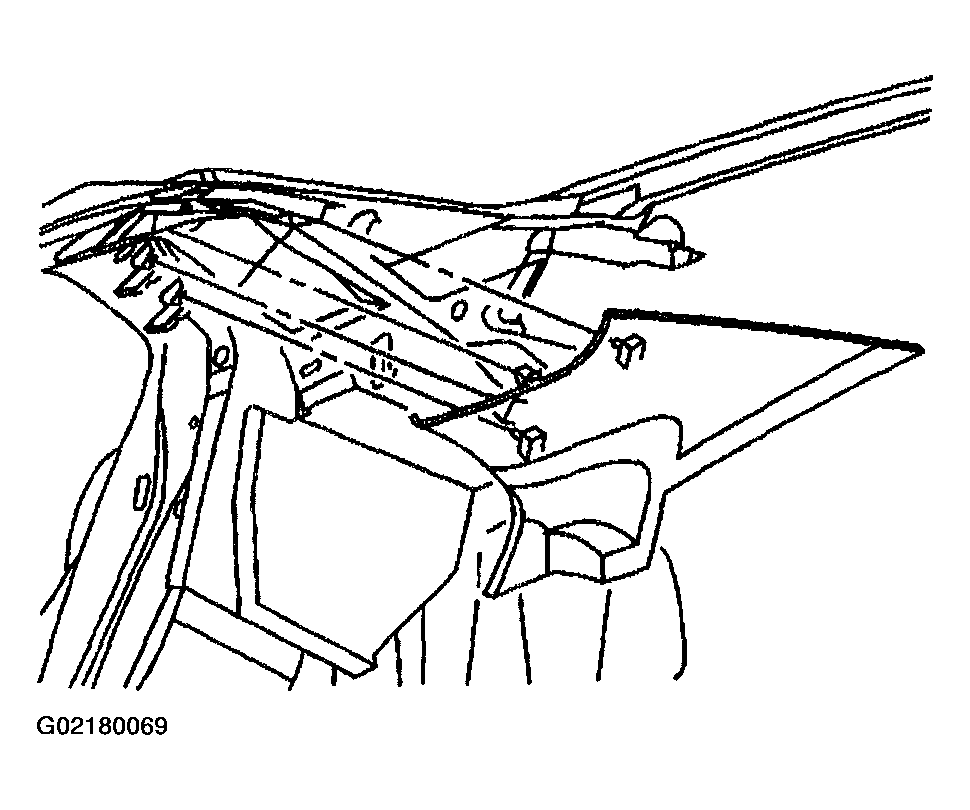

Fig 3: Installing Passenger Side Sail Panel
Courtesy of GENERAL MOTORS CORP.
Install the passenger side rear seat belt retractor (4). Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR in Seat Belts.

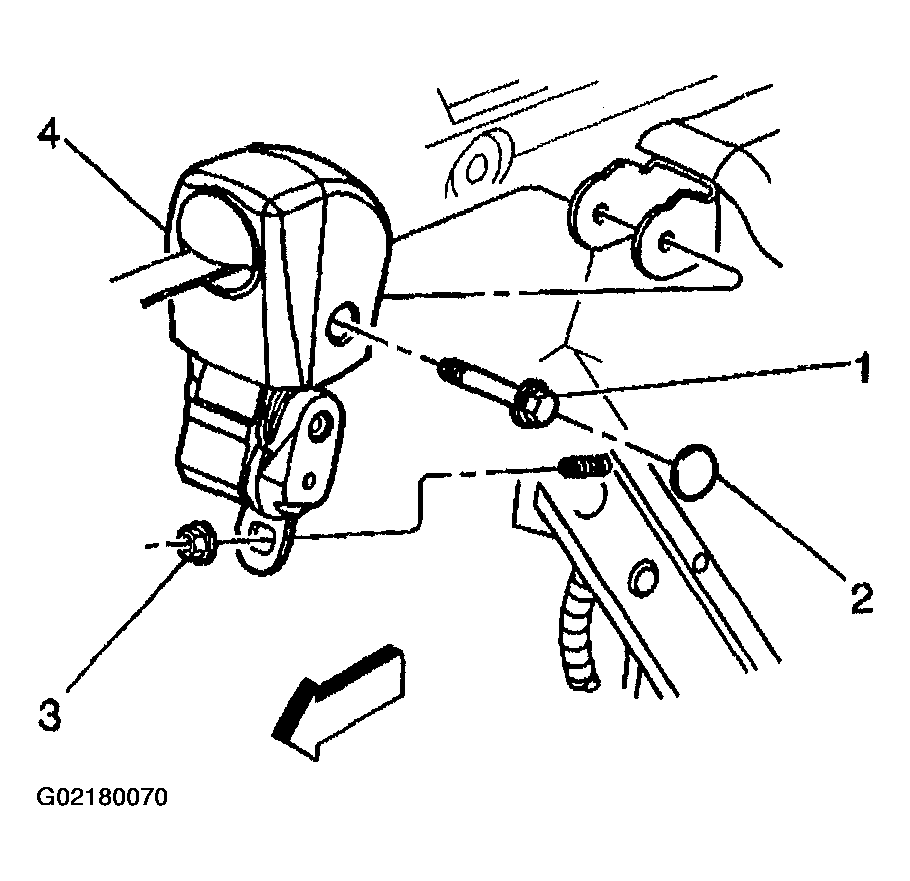

Fig 4: Installing Passenger Side Rear Seat Belt Retractor
Courtesy of GENERAL MOTORS CORP.
Install the rear seat back. Refer to SEAT SYSTEM in Seats.

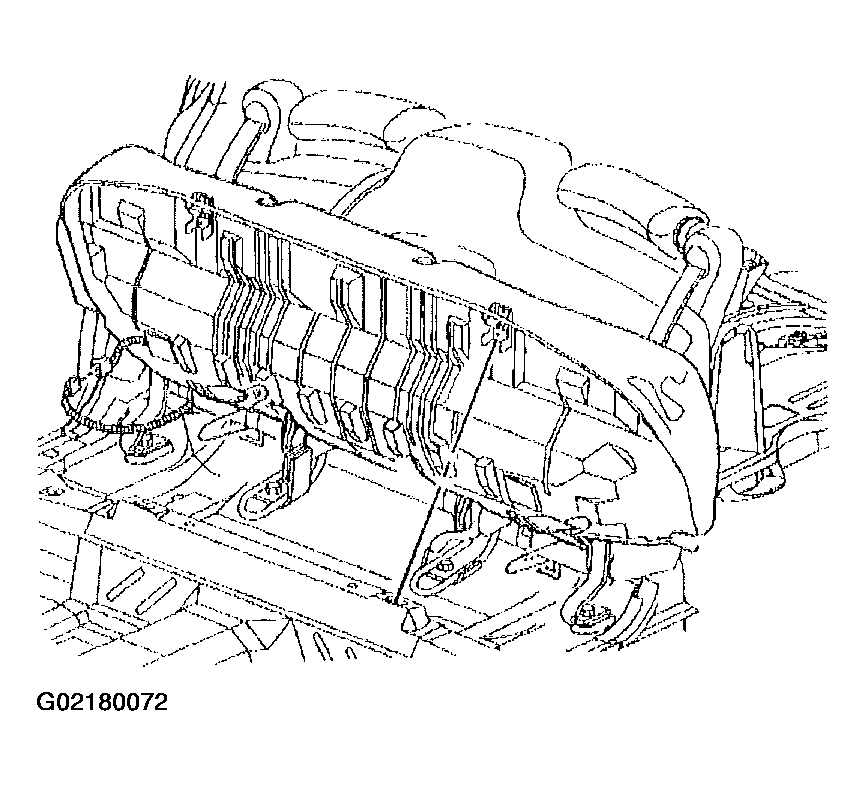

Fig 5: Installing Rear Seat Back Fasteners
Courtesy of GENERAL MOTORS CORP.
Install the rear seat cushion. Refer to SEAT SYSTEM in Seats.

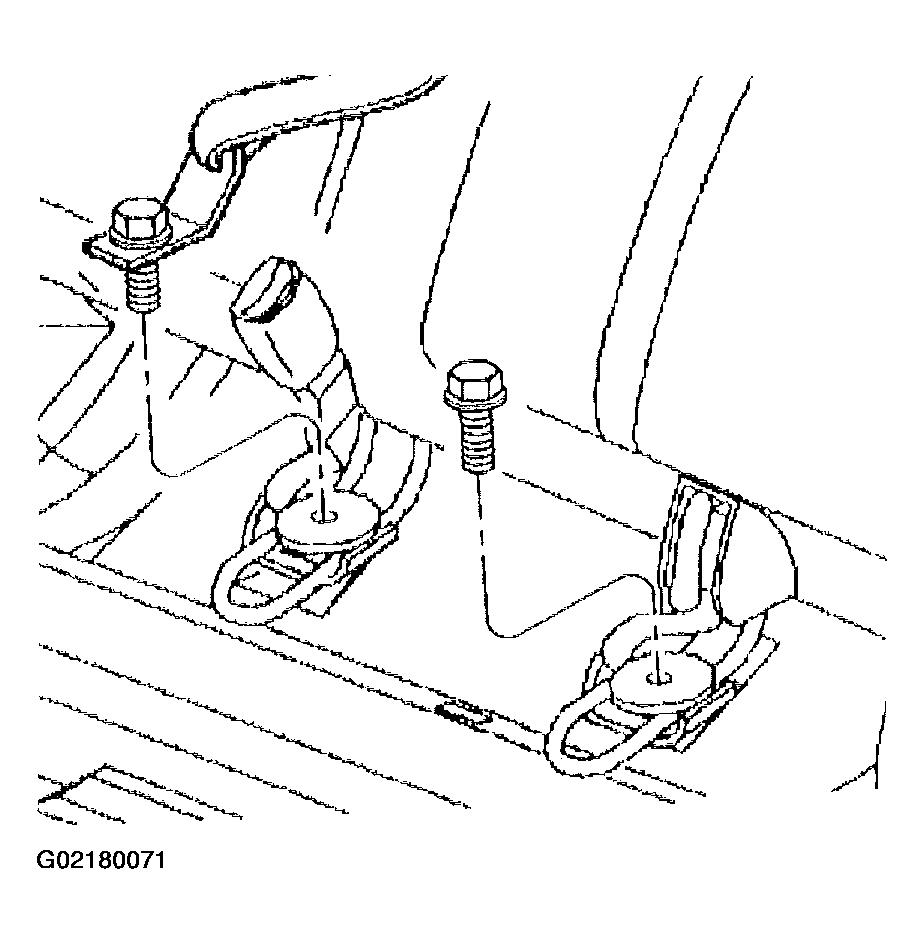

Fig 6: Installing Rear Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Align the upper center trim panel retainer, push inward in order to secure.
Reposition the passenger rear door opening weatherstrip seal.

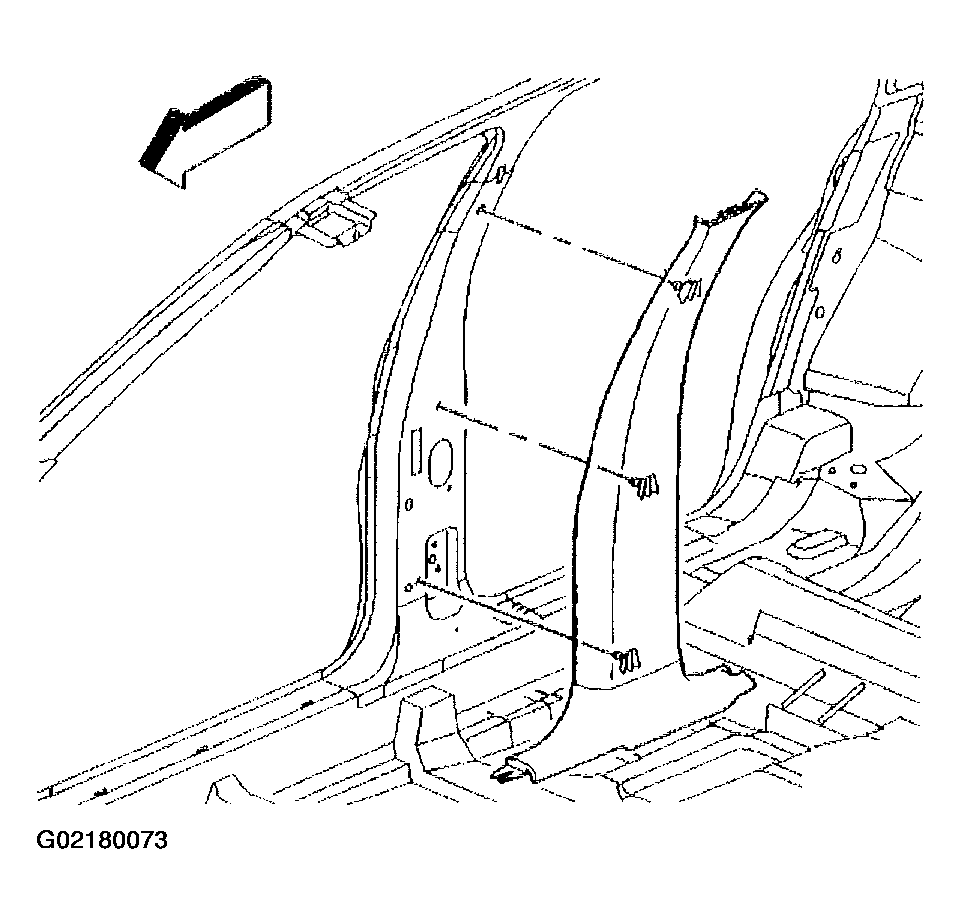

Fig 7: Installing Upper Center Trim Panel
Courtesy of GENERAL MOTORS CORP.
Install the passenger side rear assist handle. Refer to ASSIST HANDLE REPLACEMENT in Interior Trim.

Fig 8: Installing Passenger Side Rear Assist Handle
Courtesy of GENERAL MOTORS CORP.
Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
Close the passenger rear door.
