Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System
>>
Component Locator
>>
Keyless Entry Connector End Views
>>
Remote Control Door Lock Receiver (RCDLR)
Remote Control Door Lock Receiver (RCDLR)

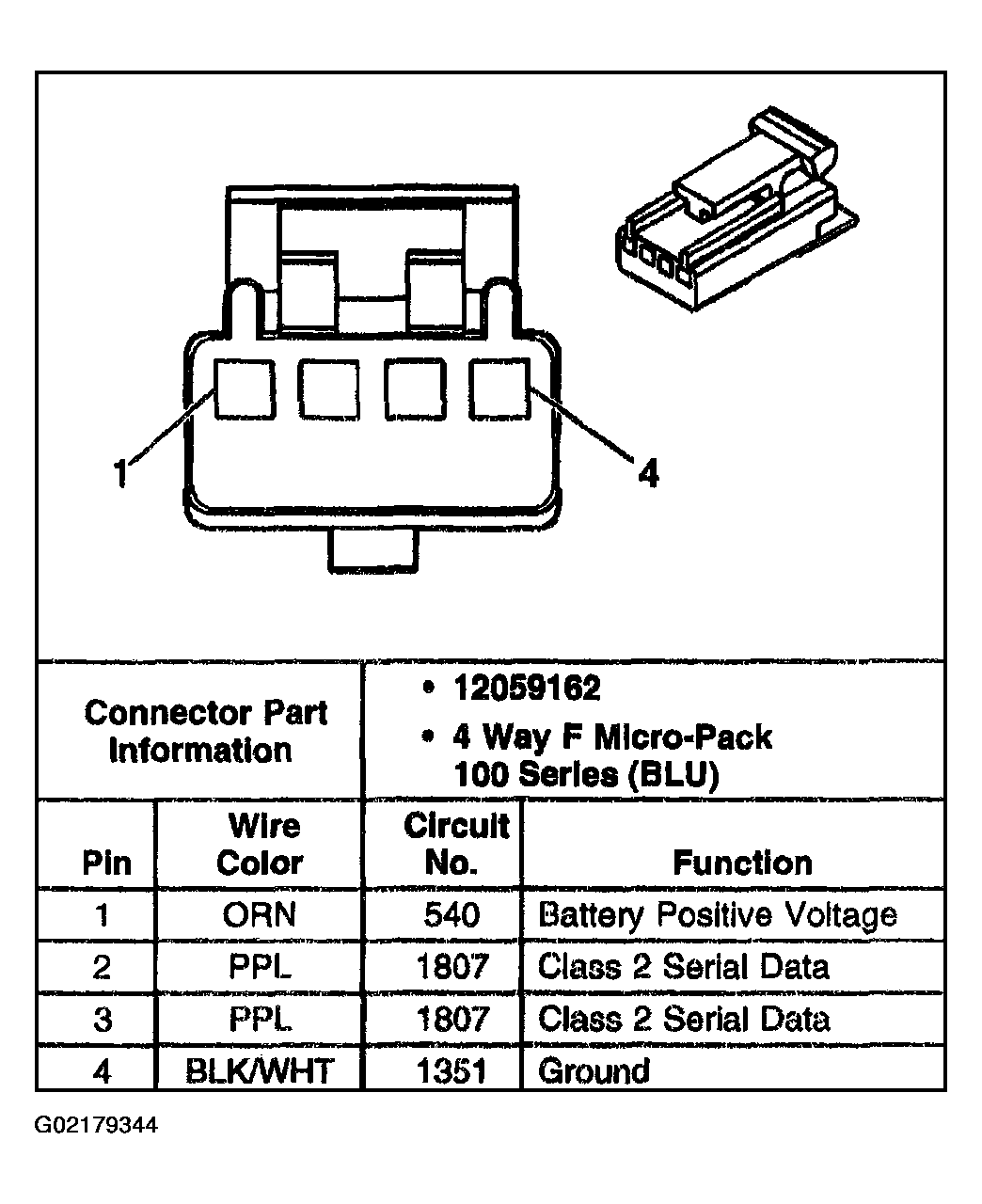

Fig 1: Remote Control Door Lock Receiver Connector End View (RCDLR)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
