Installation Procedure

  1. Install the module to the bracket.
  2. Slide the DIM upward until it is fully engaged.

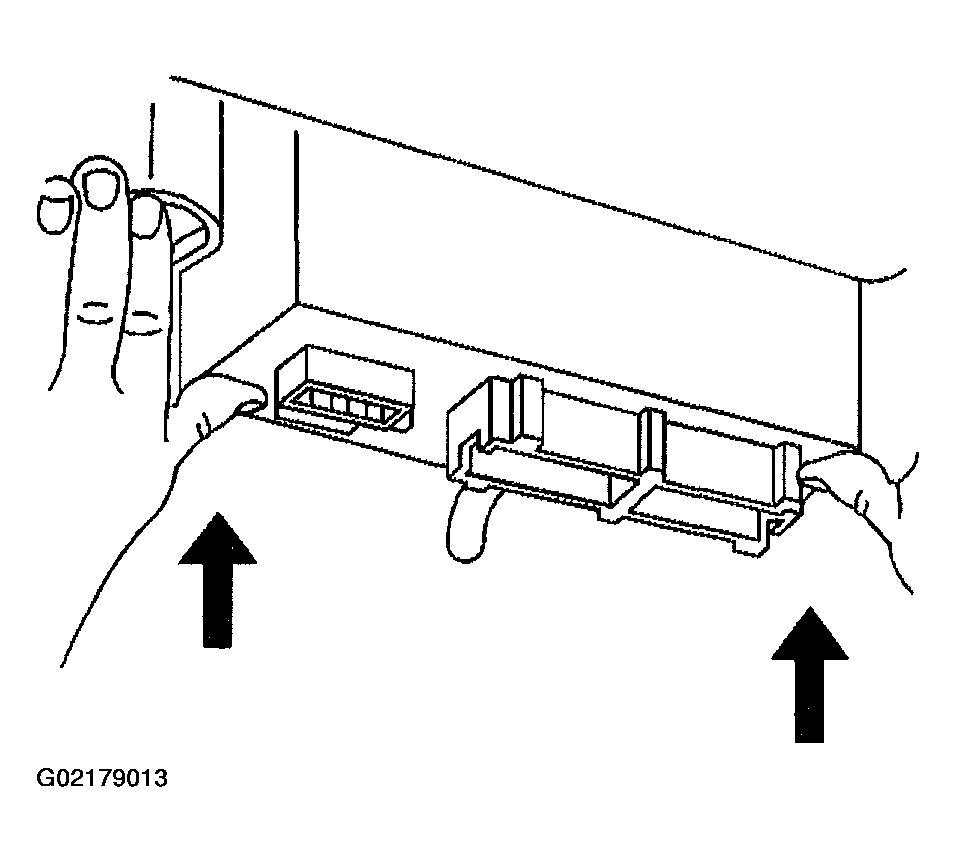

    Fig 1: Install Dash Integration Module To Bracket (RHD)
    G02179013Courtesy of GENERAL MOTORS CORP.
  3. Connect the DIM electrical connectors (2).

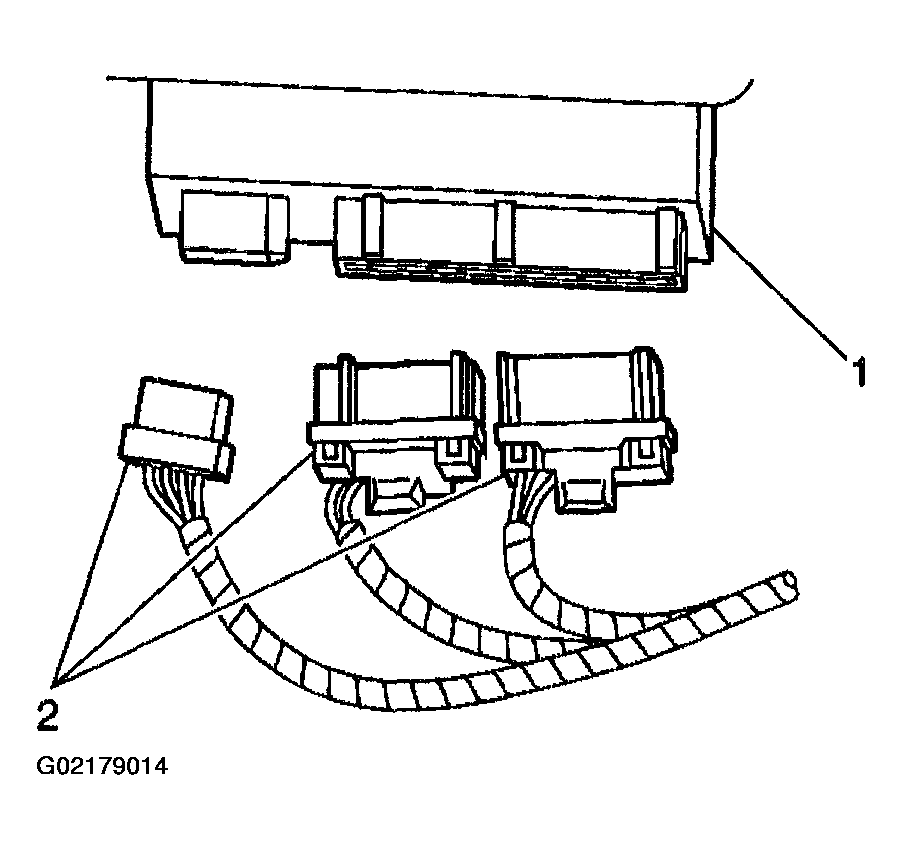

    Fig 2: Connecting DIM Electrical Connectors (RHD)
    G02179014Courtesy of GENERAL MOTORS CORP.
  4. Install the left sound insulator. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  or INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
  5. Reprogram the Dash Integration Module. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (IPM)   or BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (DIM)   .
