Installation Procedure

  1. Install the module to the bracket.
  2. Slide the DIM upward until it is fully engaged.

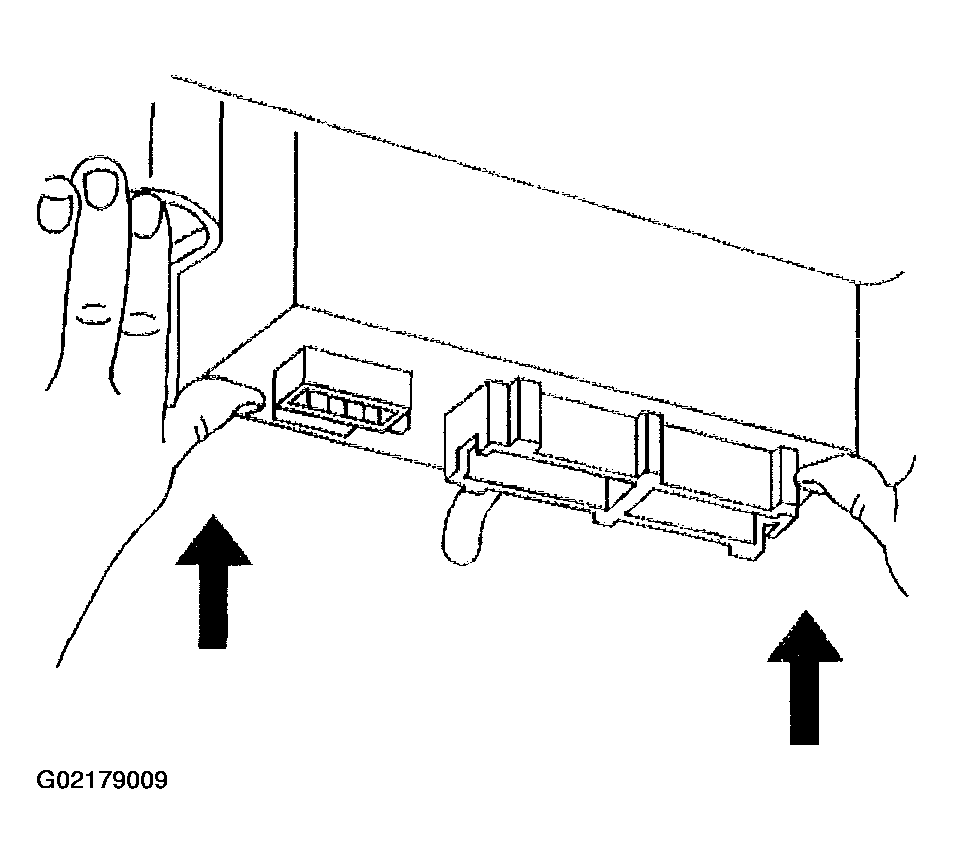

    Fig 1: Installing Dash Integration Module To Bracket (LHD)
    G02179009Courtesy of GENERAL MOTORS CORP.
  3. Connect the DIM electrical connectors (2).

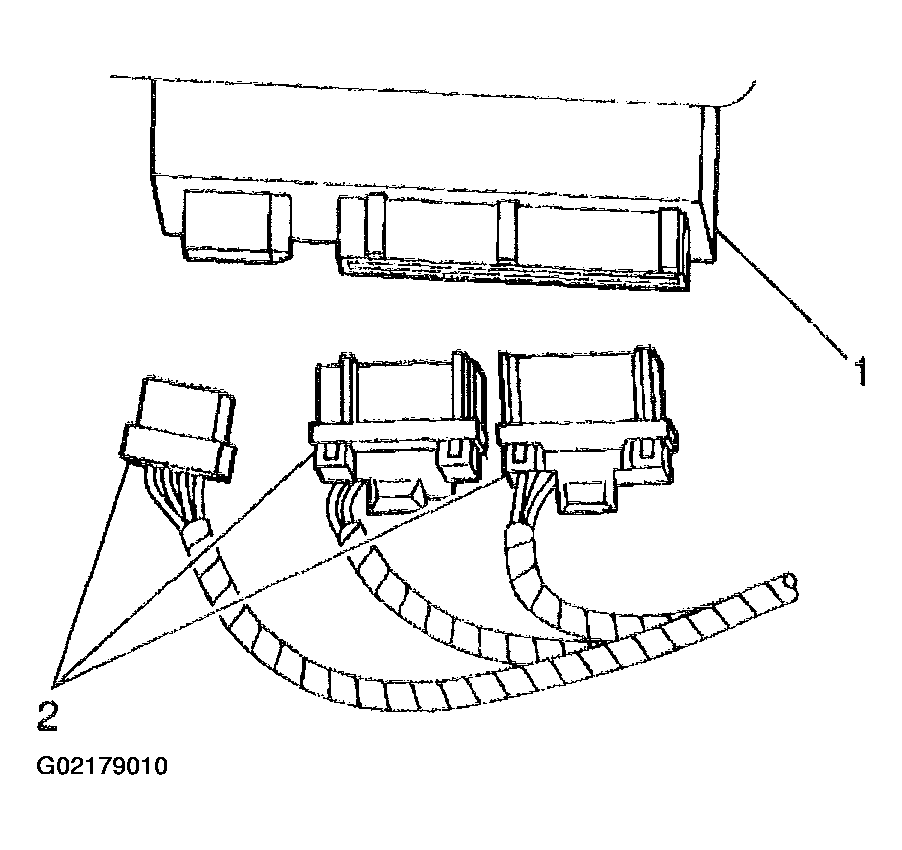

    Fig 2: Connecting DIM Electrical Connectors (LHD)
    G02179010Courtesy of GENERAL MOTORS CORP.
  4. Install the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT RIGHT (LHD)  or INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
  5. Reprogram the Dash Integration Module. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (IPM)   or BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (DIM)   .
