Control Module References

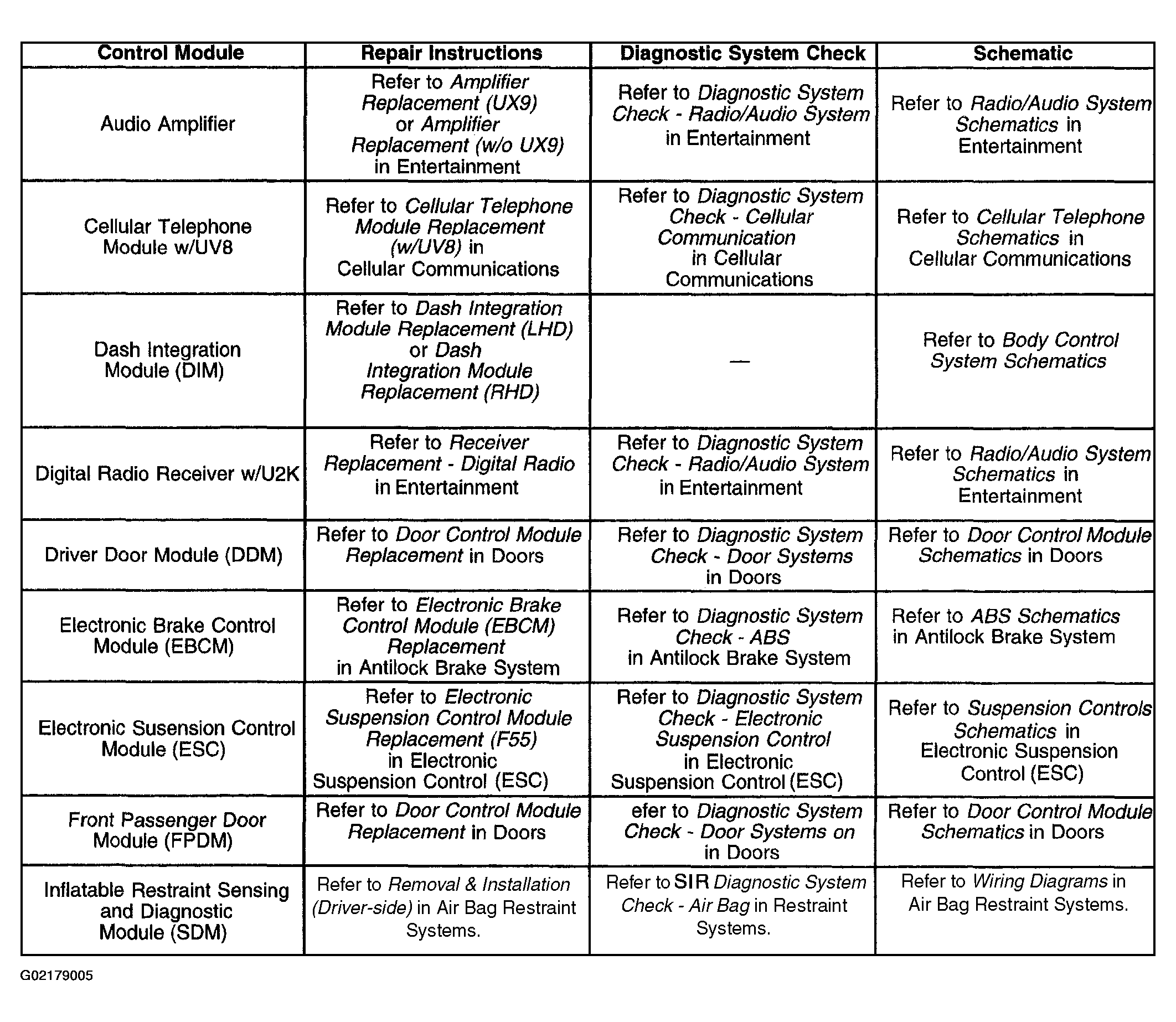

Fig 1: Control Module References Chart (1 Of 2)

G02179005

Courtesy of GENERAL MOTORS CORP.

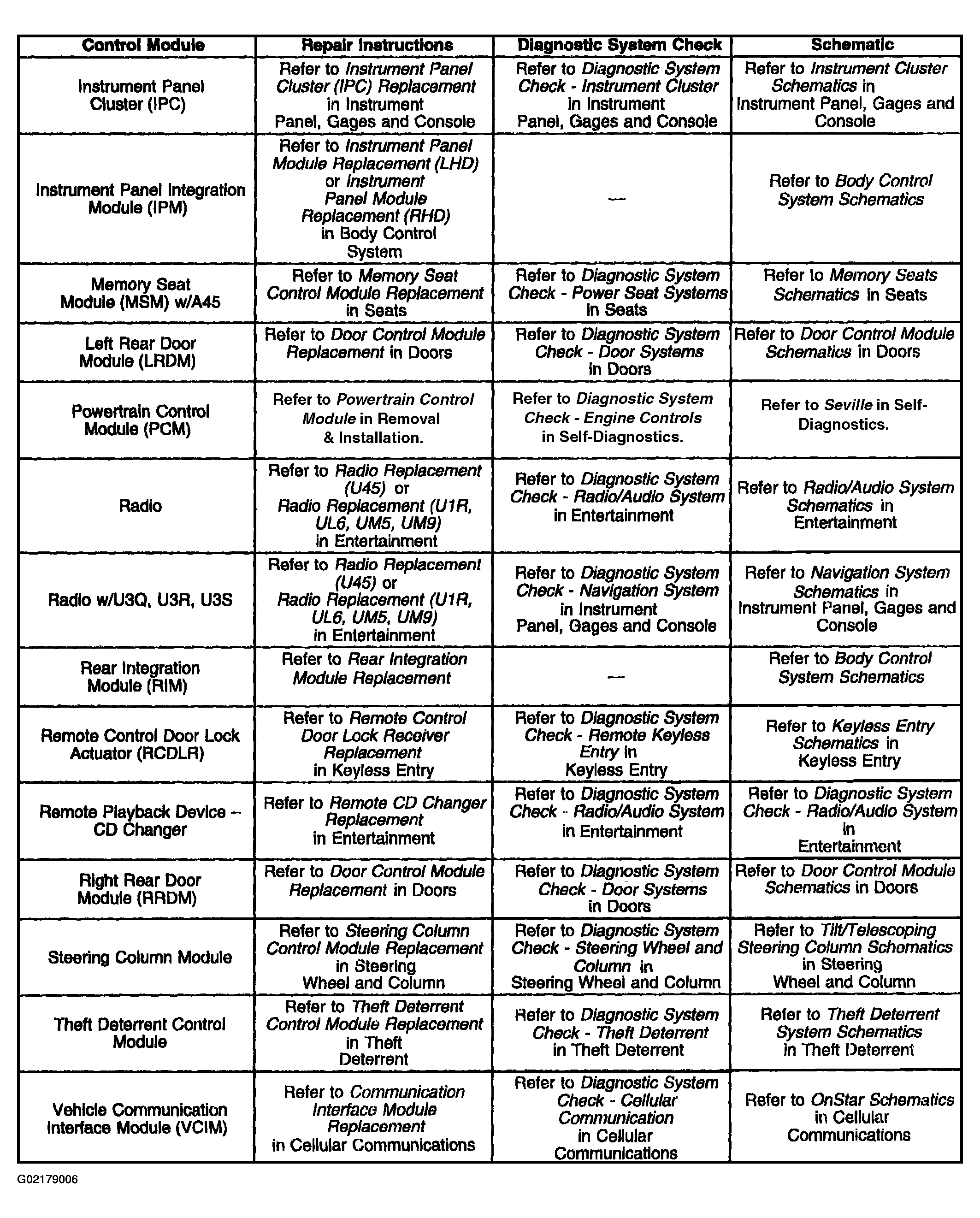

Fig 2: Control Module References Chart (2 Of 2)

G02179006

Courtesy of GENERAL MOTORS CORP.
