Transfer Case Disassembled View

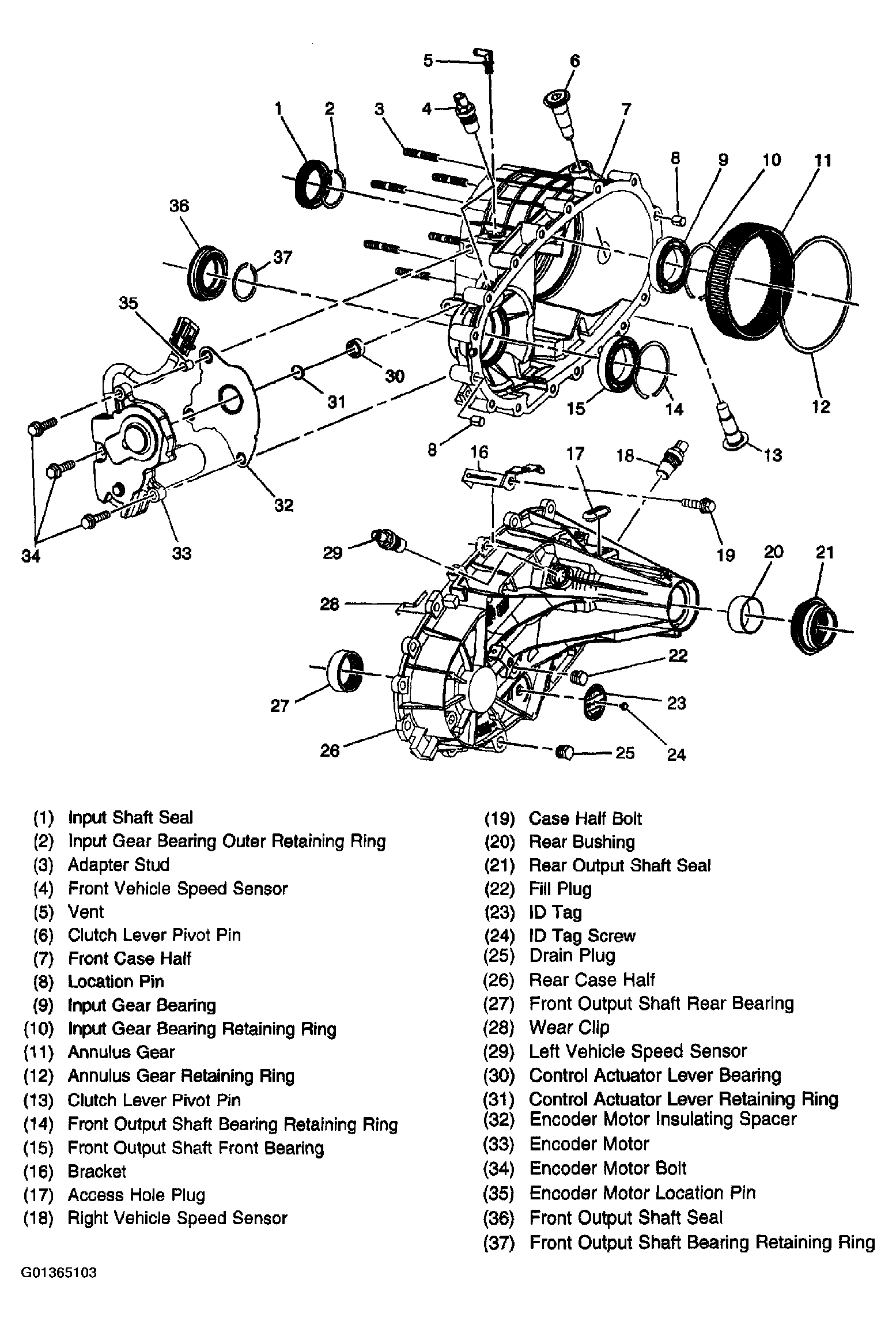

Fig 1: Case Half Components Disassembled View
G01365103Courtesy of GENERAL MOTORS CORP.

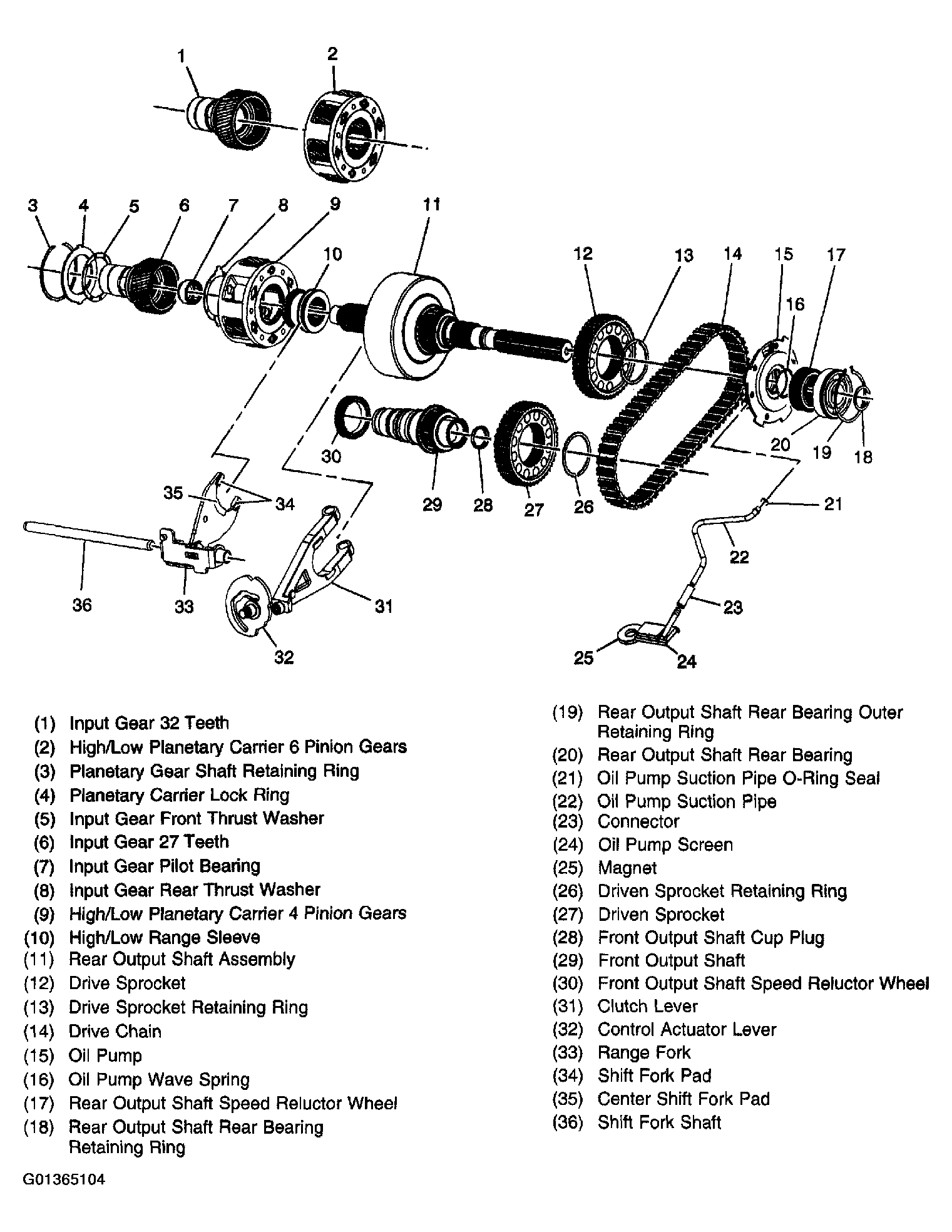

Fig 2: Internal Transfer Case Components Disassembled View
G01365104Courtesy of GENERAL MOTORS CORP.

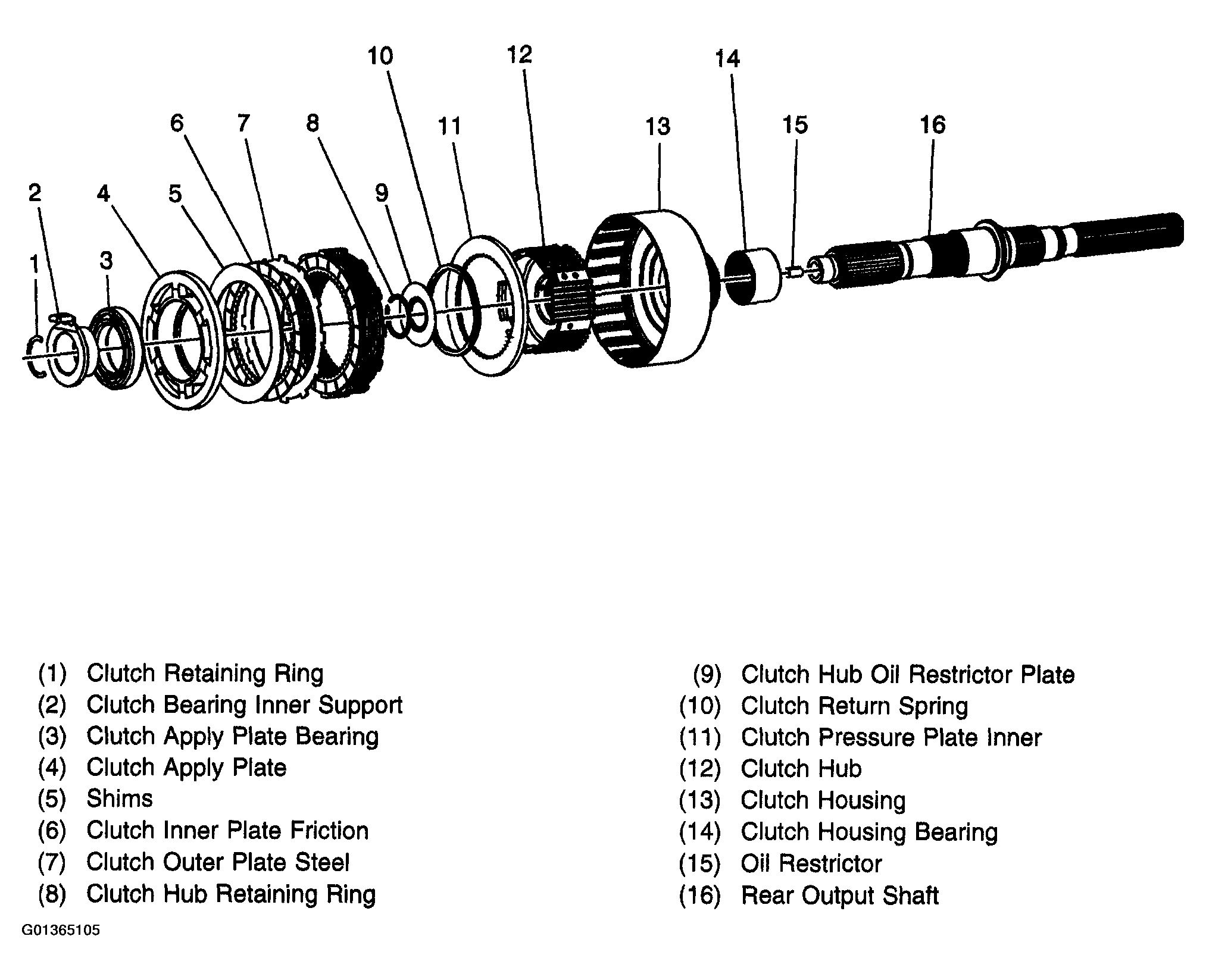

Fig 3: Clutch Components Disassembled View
G01365105Courtesy of GENERAL MOTORS CORP.
