Installation Procedure

  1. Position the transfer case shield, if equipped.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the transfer case shield bolts, if equipped.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Lower the vehicle.

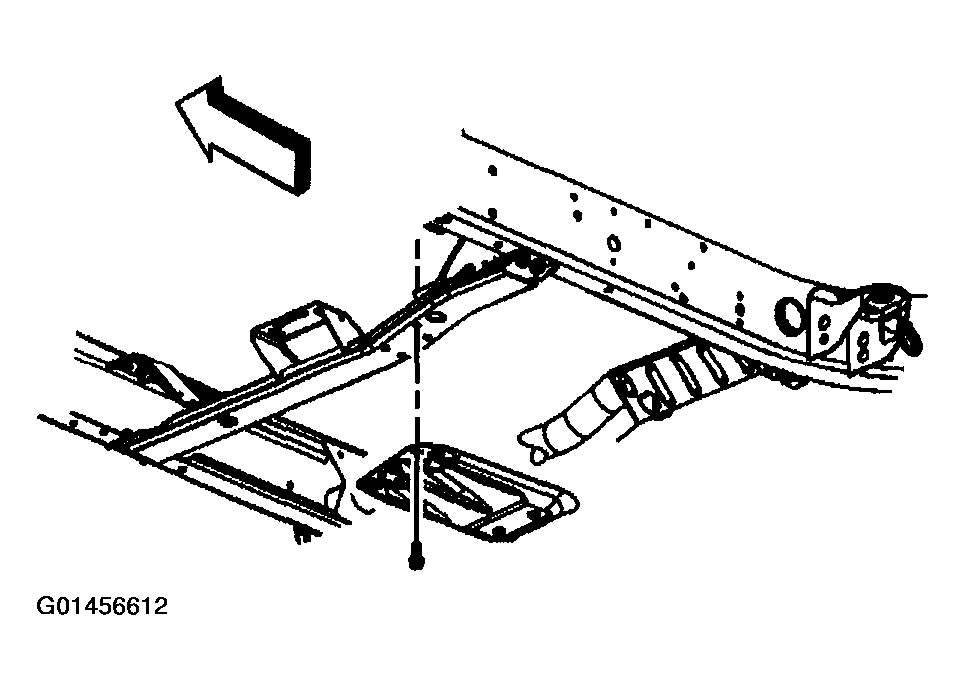

    Fig 1: Installing Transfer Case Shield & Bolts
    G01456612Courtesy of GENERAL MOTORS CORP.
