Rear Toe Adjustment

  1. Loosen the jam nut on the tie rod (1).
  2. Rotate the inner tie rod to the required toe specification setting. Refer to Wheel Alignment Specifications, See Wheel Alignment Specifications  .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Tighten the jam nut on the tie rod.

    Tighten

    Tighten the tie rod jam to 65 N.m (48 lb ft).

  4. Check the toe setting after tightening.
  5. Re-adjust the toe setting if necessary.

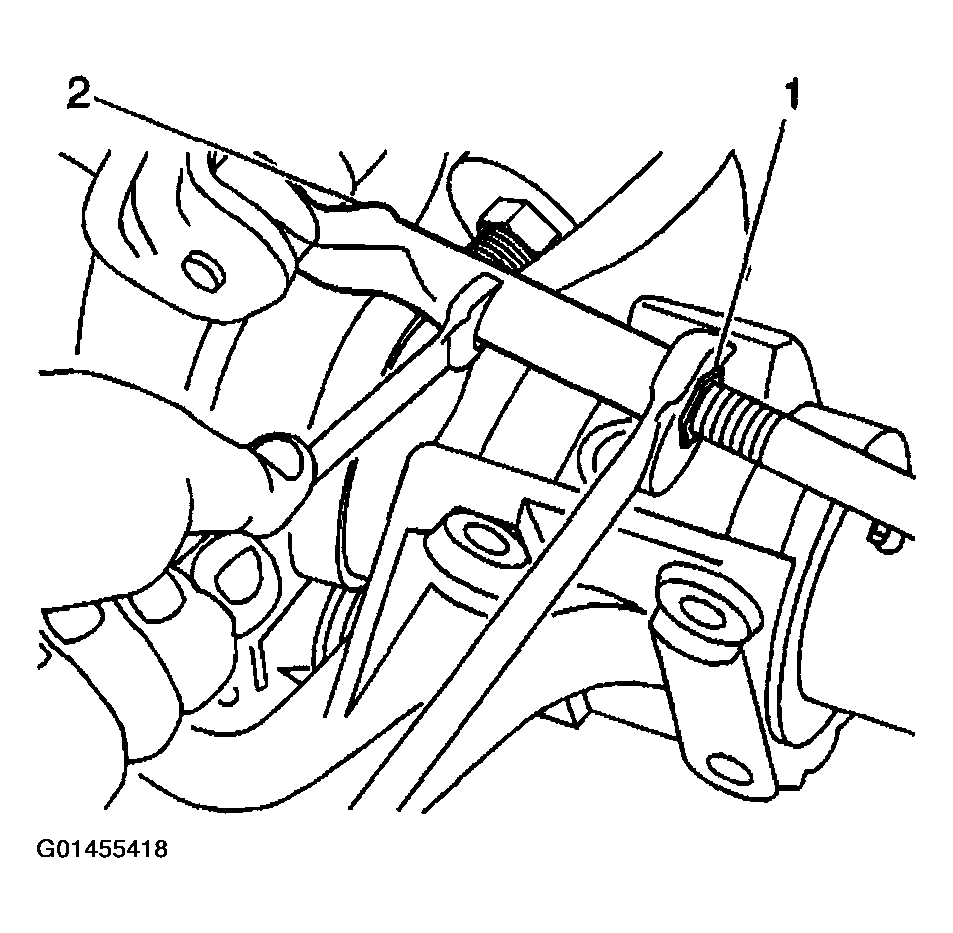

    Fig 1: Adjusting Rear Toe
    G01455418Courtesy of GENERAL MOTORS CORP.
