Installation Procedure

  1. Align the marks made during the removal of the steering shaft and the steering wheel.
  2. Install the steering wheel onto the steering shaft.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the steering wheel nut to the steering shaft.

    Tighten

    Tighten the nut to 40 N.m (29 lb ft).

  4. Install the horn switch. Refer to HORN SWITCH REPLACEMENT  .
  5. Install the inflator module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) in SIR.
  6. Enable the SIR system. Refer to ZONE 3 in SIR.

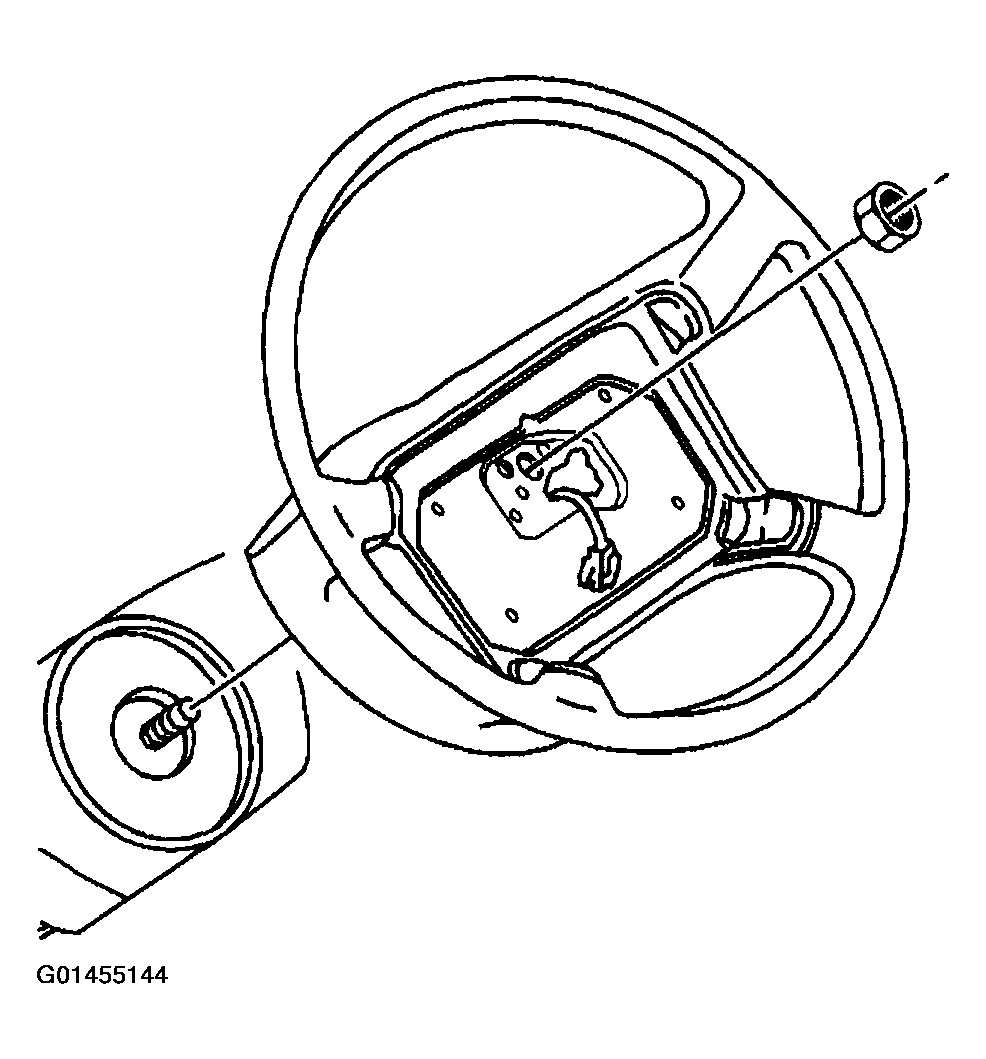

    Fig 1: Installing Steering Wheel Nut To Steering Shaft
    G01455144Courtesy of GENERAL MOTORS CORP.
