Installation Procedure

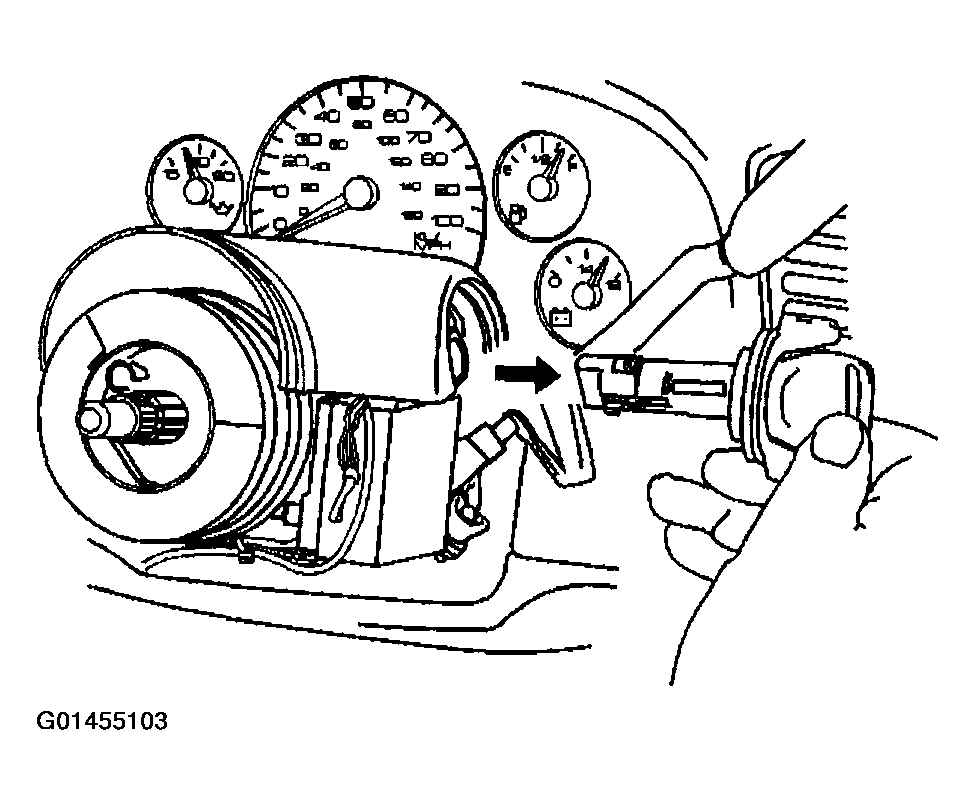

- Install the ignition lock cylinder into the steering column using the following procedure:
- Align the positioning locking tab slot on the ignition lock cylinder case assembly to the positioning tab on the ignition lock cylinder.
- Push the lock cylinder in until the locking tab locks in the ignition lock cylinder case assembly.
- Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT
.
- Enable the SIR system. Refer to ZONE 3
in SIR.
- Perform the Passlock learn procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS
in Theft Deterrent.
Courtesy of GENERAL MOTORS CORP.
