Diagnostic Information and Procedures
>>
Lock System Does Not Lock
Lock System Does Not Lock

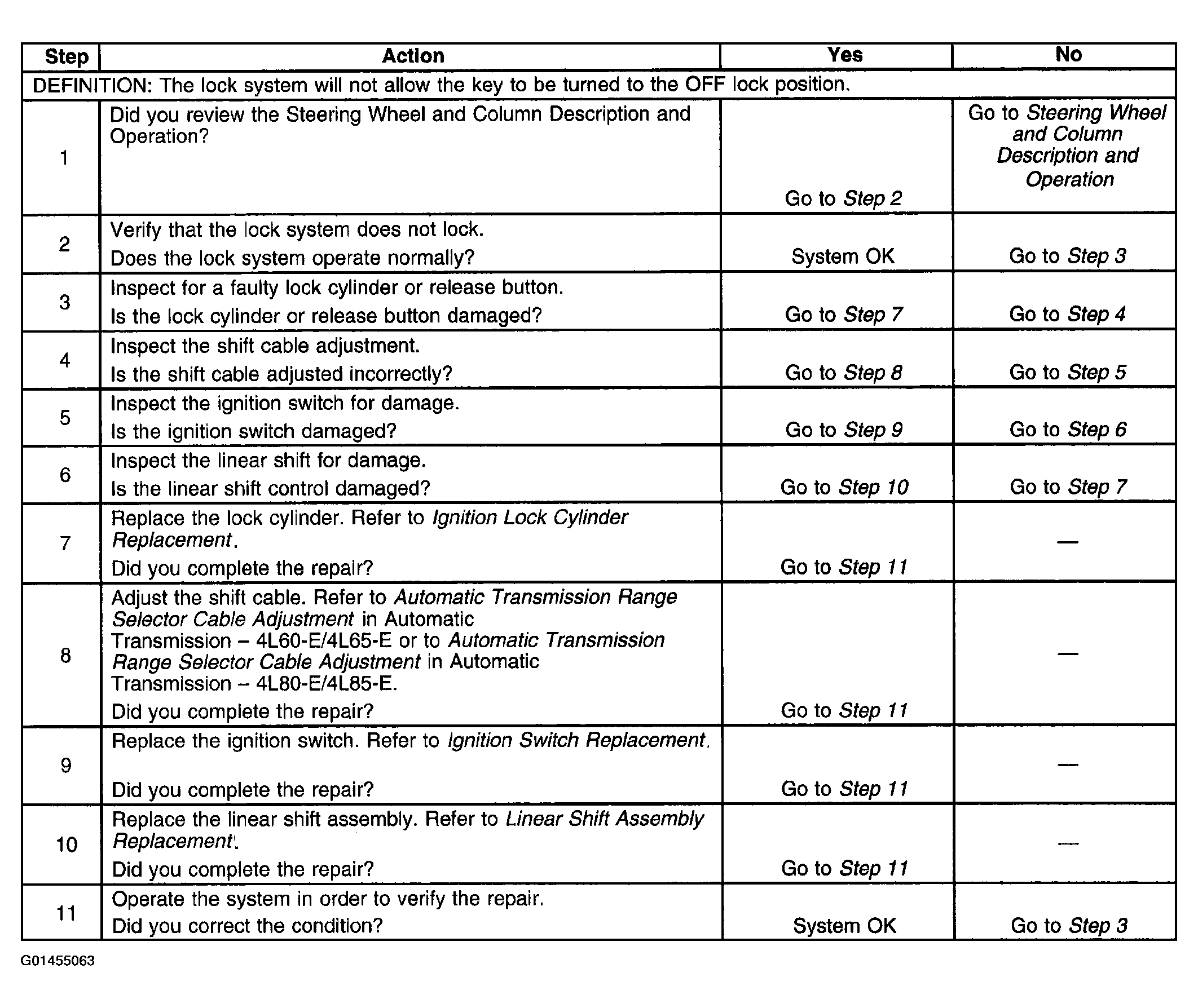

Fig 1: Lock System Does Not Lock Symptoms Specification Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
